Siemens 3SE5 Series Safety Enabling Switch, 5 Position, 1 NO/2 NC, IP67, IP65
- RS 제품 번호:
- 153-288
- 제조사 부품 번호:
- 3SE5312-1SF11
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩1,778,820.00
제조사가 재고 비축중
- 2026년 11월 02일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,778,820.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 153-288
- 제조사 부품 번호:
- 3SE5312-1SF11
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Series | 3SE5 | |
| Product Type | Safety Enabling Switch | |
| Contact Configuration | 1 NO/2 NC | |
| Number of Positions | 5 | |
| IP Rating | IP67, IP65 | |
| Terminal Type | Screw | |
| Housing Material | Metal | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 250V | |
| Standards/Approvals | UKCA, CE, CCC, cULus, EAC, TUV | |
| Hazardous Area Certification | No | |
| Depth | 43.8mm | |
| Mechanical Life | 1000000Cycles | |
| Length | 185mm | |
| Width | 54mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Series 3SE5 | ||
Product Type Safety Enabling Switch | ||
Contact Configuration 1 NO/2 NC | ||
Number of Positions 5 | ||
IP Rating IP67, IP65 | ||
Terminal Type Screw | ||
Housing Material Metal | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 250V | ||
Standards/Approvals UKCA, CE, CCC, cULus, EAC, TUV | ||
Hazardous Area Certification No | ||
Depth 43.8mm | ||
Mechanical Life 1000000Cycles | ||
Length 185mm | ||
Width 54mm | ||
- COO (Country of Origin):
- DE

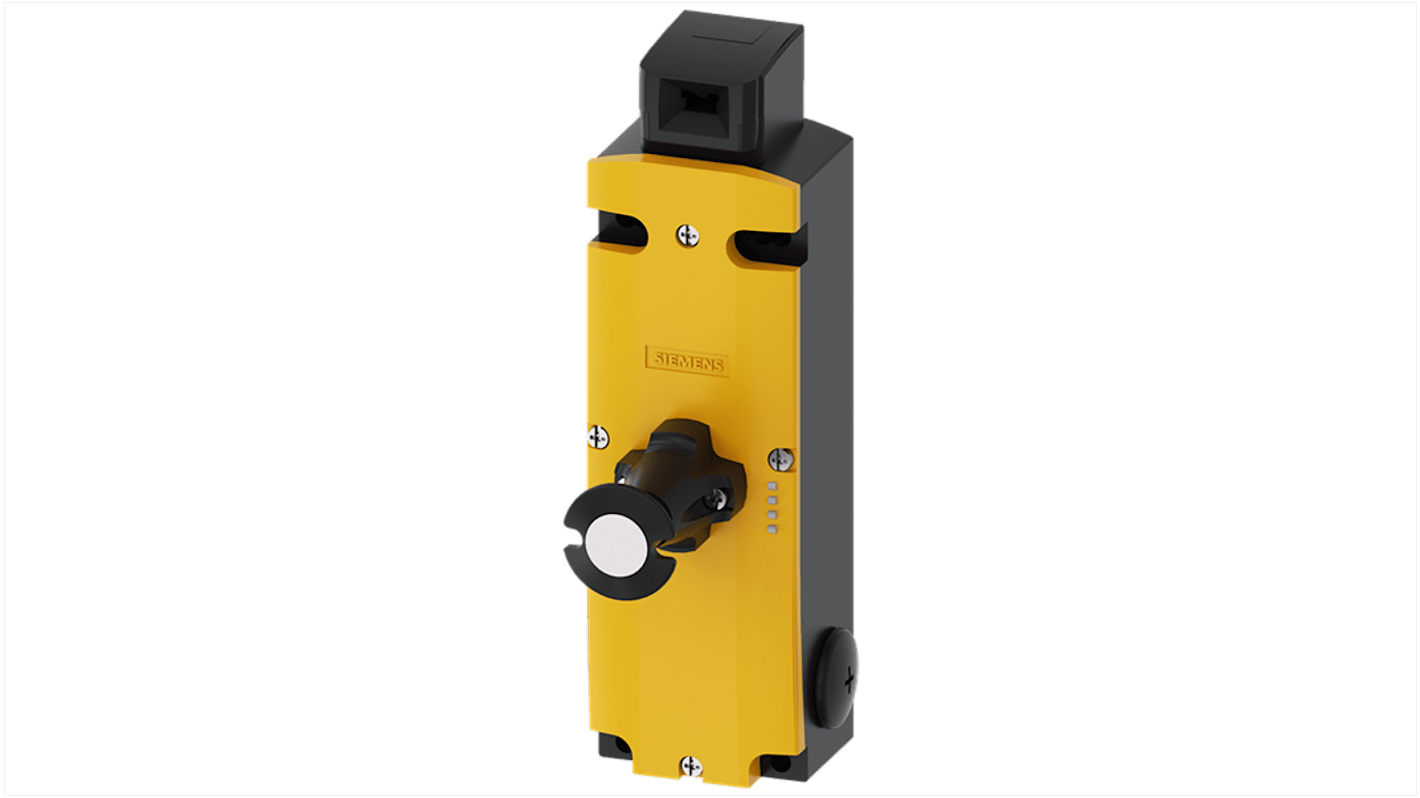

The Siemens Safety Position Switch with tumbler is engineered for robust industrial applications. With a locking force of 2600 N and five directions of approach, this product is designed to enhance safety and operational efficiency in environments where equipment could pose a risk during maintenance. Its premium metal enclosure ensures durability, while the positive opening functionality guarantees reliable performance. The inclusion of dual monitoring contacts and a choice of actuators further increases its versatility, making it suitable for a range of setups. Designed to meet rigorous safety standards, this switch is a standout choice for those prioritising both quality and compliance.
Designed for five directions of actuation
Featuring a spring actuated lock for enhanced safety
Suitable for use in a wide temperature range from 25 to +60 °C
Capable of handling mechanical service life up to 1 million cycles
Protection class IP65/IP67 for excellent dust and water resistance
Multiple connection options for flexible installation
