Festo MS series 1μm G 1/2 2bar to 12 bar Pneumatic Filter 950L/min max with Automatic drain
- RS 제품 번호:
- 202-3359
- 제조사 부품 번호:
- MS6-LFM-1/2-BRV
- 제조업체:
- Festo
가격 개당**
₩197,437.60
1 재고있음 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
재고 확인하기
수량 | 한팩당 |
---|---|
1 + | ₩197,437.60 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 202-3359
- 제조사 부품 번호:
- MS6-LFM-1/2-BRV
- 제조업체:
- Festo
- COO (Country of Origin):
- HU

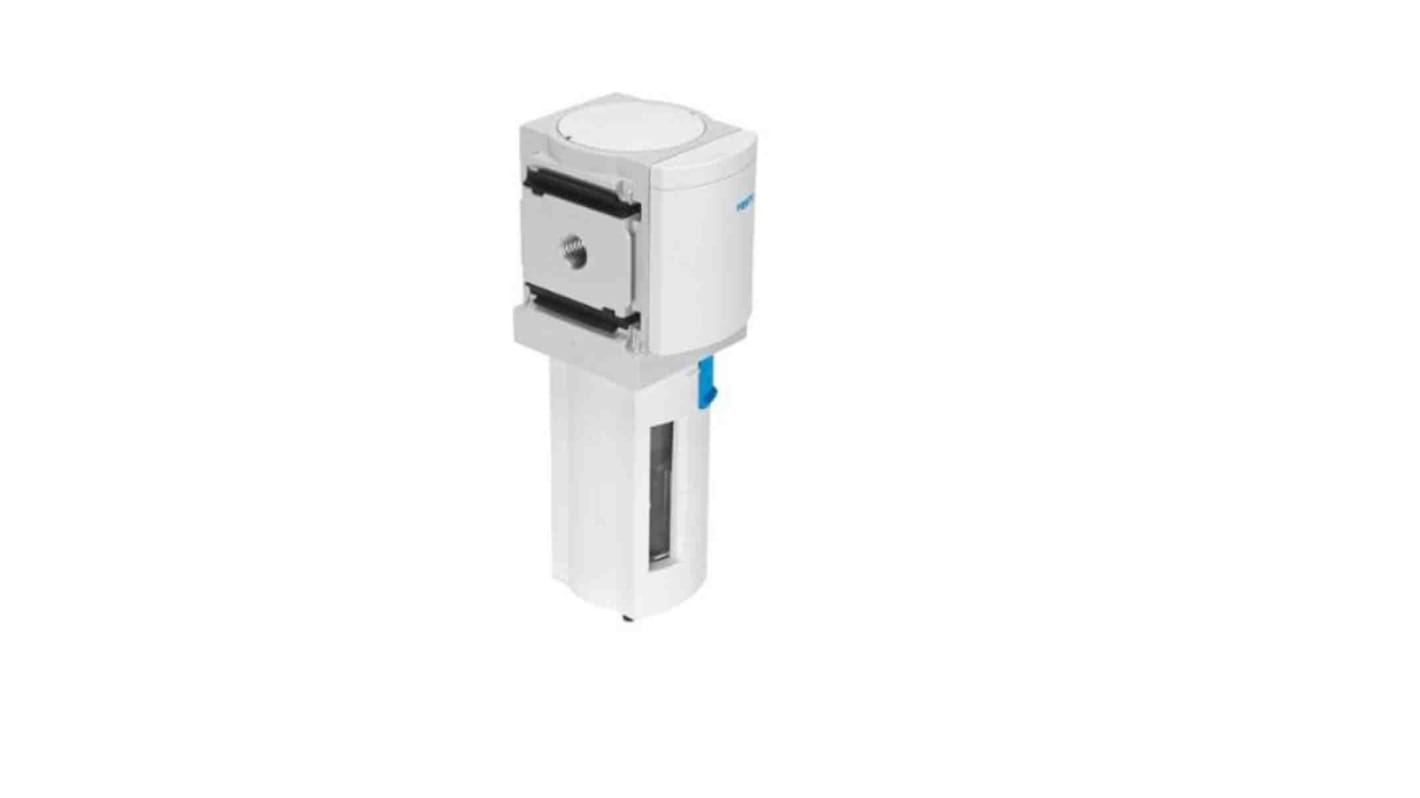

Festo Series MS Pneumatic Filter, 1 μm Filtration size, 950 L/min Maximum Flow Rate - MS6-LFM-1/2-BRV, Numeric Part Number: 530506
This pneumatic filter is an essential component designed for efficient filtration in compressed air systems. With a filtration size of 1μm, it ensures the removal of fine particles to maintain air quality. Its durable construction and plastic bowl guard provide reliability in various industrial applications. Operating efficiently within a pressure range of 2 bar to 12 bar, this filter offers a maximum flow rate of 950 l/min, making it a robust choice for high-demand environments.
Features & Benefits
• Fully automatic condensate drain enhances operational efficiency
• Robust design supports maximum operating temperature of +60°C
• Dual G 1/2 port connections ensure easy integration
• Robust design supports maximum operating temperature of +60°C
• Dual G 1/2 port connections ensure easy integration
Applications
• Ideal for protecting pneumatic actuators and valves
• Employed in manufacturing processes requiring clean air
• Suitable for use in food processing environments
• Employed in manufacturing processes requiring clean air
• Suitable for use in food processing environments
What is the significance of the 1μm filtration size?
The 1μm filtration size effectively captures fine particulates, ensuring that contaminants are filtered out from the compressed air, which is crucial for maintaining the integrity of downstream pneumatic components.
How does the automatic condensate drain function improve performance?
The automatic condensate drain continuously removes moisture from the filter bowl without the need for manual intervention, preventing the accumulation of water that could lead to equipment damage and inefficiency.
What materials are used in the construction of this filter?
The housing is made of robust die-cast aluminium, while the bowl is crafted from durable plastic. The seals are made of NBR, ensuring high resistance to wear and chemical exposure.
Can this filter be mounted in any position?
Yes, it can be installed in-line and is designed for vertical mounting with some flexibility, making it adaptable to various installation requirements in different environments.
속성 | 값 |
---|---|
Filtration Size | 1µm |
Port Connection | G 1/2 |
Drain Type | Automatic |
Manufacturer Series | MS |
Maximum Flow Rate | 950L/min |
Minimum Operating Pressure | 2bar |
Maximum Operating Pressure | 12 bar |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -10°C |
Bowl Material | Plastic |
