Surge Suppressor Units

Surge suppressor units are a kind of protective device used to ensure that electrical equipment is not damaged by a sudden voltage spike. This can be caused by a lightning strike or simply an electrical fault. Surge suppressors are often built into devices such as power strips, but they are also available as standalone units.

How do surge suppressor units work?

Surge suppressor units protect devices by blocking or diverting the excess voltage to the ground. They are triggered when the voltage exceeds a pre-determined threshold. They are often used as part of power distribution units and sometimes come with a warning light to indicate pre-failure.

Types of surge suppressor units

Surge suppressor units can vary in a number of ways, including the mounting method they require, their maximum surge current, and the type of electrical equipment they are to be used with. For example:

A coaxial surge suppressor is used with coaxial cable
A category 6 surge suppressor is used with category 6 cables

702 표시되는 제품 Surge Suppressor Units

1 / 36

정렬 기준

제품 비교 제품 세부 사항

RS PRO Surge Suppressor Unit 253 V Maximum Voltage Rating 6.5kA Maximum Surge Current EMC Filter RS 제품 번호 206-7910 개당 ₩287,734.00 주문수량		EMC Filter	253 V	DIN Rail	6.5kA	MAXX	-	-	-	-	-	-25°C	+85°C	-	-	-	-
RS PRO RC Network Capacitor 500 V Maximum Voltage Rating 3 Phase RS 제품 번호 240-400 개당 ₩35,682.40 주문수량		3 Phase	500 V	DIN Rail	-	RC	62mm	19mm	40mm	62 x 19 x 40mm	-	-40°C	+70°C	-	-	-	-
RS PRO RC Network Capacitor 500 V Maximum Voltage Rating 1 Phase RS 제품 번호 813-430 개당 ₩27,429.20 주문수량		1 Phase	500 V	Flange Mount	-	RC	49mm	-	57mm	49 x 57mm	-	-40°C	+70°C	-	-	-	-
RS PRO RC Network Capacitor 500 V Maximum Voltage Rating Mains Protector RS 제품 번호 240-393 개당 ₩19,815.20 주문수량		Mains Protector	500 V	DIN Rail	-	RC	62mm	19mm	40mm	62 x 19 x 40mm	-	-40°C	+70°C	-	-	-	-
Phoenix Contact, VAL-MS 230 ST Surge Protector 230 V ac Maximum Voltage Rating 40kA Maximum Surge Current Surge RS 제품 번호 802-6542 제조사 부품 번호 2798844 개당 ₩161,360.40 주문수량	Phoenix Contact	Surge Arrester Protection Module	230 V ac	DIN Rail	40kA	VAL-MS 230 ST	17.7mm	54.5mm	52.4mm	17.7 x 54.5 x 52.4mm	-	-40°C	+80°C	-	-	-	-
Dehn, DPA M CLD Surge Arrester 48 V Maximum Voltage Rating 0.001kA Maximum Surge Current Surge Arrester RS 제품 번호 193-6599 제조사 부품 번호 DPA M CLD RJ45B 48 개당 ₩264,610.00 주문수량	Dehn	Surge Arrester	48 V	DIN Rail	0.001kA	DPA M CLD	19mm	36mm	75mm	19 x 36 x 75mm	-	-40°C	+80°C	-	-	-	-
Phoenix Contact, VAL-MS 120 ST Surge Protector 120 V ac Maximum Voltage Rating 40kA Maximum Surge Current Surge RS 제품 번호 802-6684 제조사 부품 번호 2807586 개당 ₩166,455.20 주문수량	Phoenix Contact	Surge Arrester Protection Module	120 V ac	DIN Rail	40kA	VAL-MS 120 ST	52.4mm	17.5mm	55.3mm	52.4 x 17.5 x 55.3mm	-	-40°C	+80°C	-	-	-	-
WJ Furse, ESP 240 Surge Suppressor Unit 280 V Maximum Voltage Rating 10kA Maximum Surge Current Low Current Mains RS 제품 번호 456-8140 제조사 부품 번호 7TCA085460R0080 ESP 240-16A 개당 ₩525,798.40 주문수량	WJ Furse	Low Current Mains Protector	280 V	DIN Rail	10kA	ESP 240	120mm	38mm	54mm	120 x 54 x 38mm	-	-40°C	+70°C	-	-	-	-
Schneider Electric, Acti9 Surge Arrester 350 V Maximum Voltage Rating 40kA Maximum Surge Current Surge Arrester RS 제품 번호 335-281 제조사 부품 번호 PRD3PN40R 개당 ₩3,683,077.92 주문수량	Schneider Electric	Surge Arrester	350 V	Surface Mount	40kA	Acti9	-	-	-	-	-	-	-	-	-	-	-

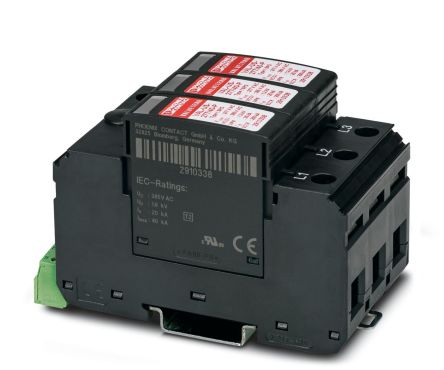

Phoenix Contact, VAL-US-480D/30/3+0-FM Surge Protection Device 480 V ac Maximum Voltage Rating Surge Protector RS 제품 번호 241-6117 제조사 부품 번호 2910386 개당 ₩547,418.40 주문수량	Phoenix Contact	Surge Protector	480 V ac	DIN Rail	-	VAL-US-480D/30/3+0-FM	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, TTC-6-3-HF-F-M-24DC-PT-I Surge Protector 30 V dc Maximum Voltage Rating 10kA Maximum Surge Current RS 제품 번호 135-7147 제조사 부품 번호 2906779 개당 ₩211,406.00 주문수량	Phoenix Contact	Surge Protection Device	30 V dc	DIN Rail	10kA	TTC-6-3-HF-F-M-24DC-PT-I	83.5mm	6.2mm	105.8mm	83.5 x 6.2 x 105.8mm	-	-40°C	+85°C	-	-	-	-
Phoenix Contact, PWT 100-800AC-FM Lightning / Surge Arrester 30 V dc, 800 V ac Maximum Voltage Rating 100kA Maximum RS 제품 번호 854-4867 제조사 부품 번호 2800531 개당 ₩2,524,652.00 주문수량	Phoenix Contact	Lightning Arrester	30 V dc, 800 V ac	Screw Mount	100kA	PWT 100-800AC-FM	176mm	280mm	191mm	176 x 280 x 191mm	-	-40°C	+55°C	-	-	-	-
Phoenix Contact, S-PT-1X2-24DC-1/2 Surge Protection Device 28 V ac, 40 V dc Maximum Voltage Rating 20kA Maximum Surge RS 제품 번호 853-0221 제조사 부품 번호 2882569 개당 ₩334,865.60 주문수량	Phoenix Contact	Surge Arrester Protection Module	28 V ac, 40 V dc	Screw Mount	20kA	S-PT-1X2-24DC-1/2	34mm	148mm	34mm	34 x 148 x 34mm	-	-40°C	+85°C	-	-	-	-
Phoenix Contact, F-MS 12 ST Surge Protector 230 V ac Maximum Voltage Rating 40kA Maximum Surge Current Surge Arrester RS 제품 번호 802-6704 제조사 부품 번호 2817990 개당 ₩177,509.60 주문수량	Phoenix Contact	Surge Arrester Protection Module	230 V ac	Through Hole	40kA	F-MS 12 ST	52.5mm	17.4mm	55.5mm	52.5 x 17.4 x 55.5mm	-	-40°C	+80°C	-	-	-	-
Phoenix Contact, PT Surge Protection Device 24 VDC Maximum Voltage Rating RS 제품 번호 170-548 제조사 부품 번호 2856142 개당가격(10개가 1팩안에) ₩54,683.56 주문수량	Phoenix Contact	-	24 VDC	DIN Rail	-	PT	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, VAL-CP-N/PE-350-ST Surge Protector 264 V ac Maximum Voltage Rating 40kA Maximum Surge Current RS 제품 번호 802-8321 제조사 부품 번호 2859699 개당 ₩264,158.80 주문수량	Phoenix Contact	Protective Plug	264 V ac	DIN Rail	40kA	VAL-CP-N/PE-350-ST	-	-	-	-	-	-40°C	+80°C	-	-	-	-
Phoenix Contact, PT 4-24DC-ST Surge Protection Plug Surge Protector RS 제품 번호 241-6067 제조사 부품 번호 2839240 개당가격(10개가 1팩안에) ₩392,333.44 주문수량	Phoenix Contact	Surge Protector	-	Base Mount	-	PT 4-24DC-ST	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, VAL-MS-T1/T2 335/12.5/3+1 Lightning / Surge Arrester 335 V ac Maximum Voltage Rating 50kA Maximum RS 제품 번호 854-4842 제조사 부품 번호 2800184 개당 ₩1,061,184.80 주문수량	Phoenix Contact	Lightning Arrester	335 V ac	DIN Rail	50kA	VAL-MS-T1/T2 335/12.5/3+1	71.2mm	77.5mm	90mm	71.2 x 77.5 x 90mm	-	-40°C	+80°C	-	-	-	-
Huber+Suhner, 3406 Surge Suppressor Unit 200 V Maximum Voltage Rating 5kA Maximum Surge Current EMP Protector RS 제품 번호 111-664 제조사 부품 번호 3406.17.0009 개당 ₩394,818.80 주문수량	Huber+Suhner	EMP Protector	200 V	Panel Mount	5 kA, 10kA	3406	48.1mm	-	25.9mm	-	-	-40°C	+85°C	-	-	-	-
Phoenix Contact, VAL-MS 230/3+1 FM Surge Arrester 230 V ac Maximum Voltage Rating Surge Arrester RS 제품 번호 241-6062 제조사 부품 번호 2838199 개당 ₩929,020.80 주문수량	Phoenix Contact	Surge Arrester	230 V ac	DIN Rail	-	VAL-MS 230/3+1 FM	71mm	65.7mm	98.7mm	98.7 x 71 x 65.7mm	-	-40°C	+80°C	-	-	-	-
