Surge Suppressor Units

Surge suppressor units are a kind of protective device used to ensure that electrical equipment is not damaged by a sudden voltage spike. This can be caused by a lightning strike or simply an electrical fault. Surge suppressors are often built into devices such as power strips, but they are also available as standalone units.

How do surge suppressor units work?

Surge suppressor units protect devices by blocking or diverting the excess voltage to the ground. They are triggered when the voltage exceeds a pre-determined threshold. They are often used as part of power distribution units and sometimes come with a warning light to indicate pre-failure.

Types of surge suppressor units

Surge suppressor units can vary in a number of ways, including the mounting method they require, their maximum surge current, and the type of electrical equipment they are to be used with. For example:

A coaxial surge suppressor is used with coaxial cable
A category 6 surge suppressor is used with category 6 cables

712 표시되는 제품 Surge Suppressor Units

5 / 36

정렬 기준

제품 비교 제품 세부 사항

Dehn, DG Modular Surge Protector 500 V Maximum Voltage Rating 20kA Maximum Surge Current Type 2 Arrester RS 제품 번호 847-0968 제조사 부품 번호 DG S 385 개당 ₩146,382.44 주문수량	Dehn	Type 2 Arrester	500 V	DIN Rail	20kA	DG	18mm	66mm	90mm	18 x 66 x 90mm	-	-40°C	+80°C	-	-	-	-
Schneider Electric, Acti9 Surge Arrester 350 V Maximum Voltage Rating 40kA Maximum Surge Current Surge Arrester RS 제품 번호 335-281 제조사 부품 번호 PRD3PN40R 개당 ₩3,683,077.92 주문수량	Schneider Electric	Surge Arrester	350 V	Surface Mount	40kA	Acti9	-	-	-	-	-	-	-	-	-	-	-
Huber+Suhner, 3402 Surge Suppressor Unit 230 V Maximum Voltage Rating 20kA Maximum Surge Current EMP Protector RS 제품 번호 111-642 제조사 부품 번호 3402.17.A 개당 ₩502,054.00 주문수량	Huber+Suhner	EMP Protector	230 V	Panel Mount	20 kA, 30kA	3402	69mm	-	25.9mm	-	-	-40°C	+85°C	-	-	-	-
Phoenix Contact, TTC-6P-1X2-F-M-24DC-PT-I Surge Protector 30 V dc Maximum Voltage Rating 10kA Maximum Surge Current RS 제품 번호 135-7151 제조사 부품 번호 2906790 개당 ₩249,105.64 주문수량	Phoenix Contact	Surge Protection Device	30 V dc	DIN Rail	10kA	TTC-6P-1X2-F-M-24DC-PT-I	100mm	6.2mm	105.8mm	100 x 6.2 x 105.8mm	-	-40°C	+85°C	-	-	-	-
Dehn, DG Surge Protection Plug 275 V ac, 350 V dc Maximum Voltage Rating 40kA Maximum Surge Current Surge Arrester RS 제품 번호 768-1772 제조사 부품 번호 DG MOD 275 개당 ₩169,820.40 주문수량	Dehn	Surge Arrester Protection Module	275 V ac, 350 V dc	Plug In	40kA	DG	45mm	18mm	51mm	45 x 18 x 51mm	-	-	-	-	-	-	-
Phoenix Contact, PLT-SEC-T3-60-FM-PT Surge Protection Device 60 V ac/dc Maximum Voltage Rating 0.026kA Maximum Surge RS 제품 번호 188-8252 제조사 부품 번호 2907926 개당 ₩227,104.00 주문수량	Phoenix Contact	Type 3 Surge Protection Device	60 V ac/dc	DIN Rail	0.026kA	PLT-SEC-T3-60-FM-PT	17.7mm	74.5mm	101mm	17.7 x 74.5 x 101mm	-	-40°C	+80°C	-	-	-	-

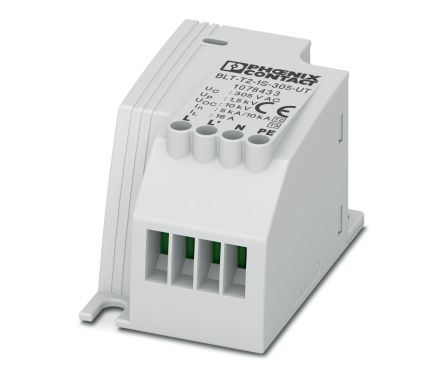

Phoenix Contact, BLT-T2-1S-305-UT Surge Suppressor Unit 100 → 230 V ac Maximum Voltage Rating 10kA Maximum Surge RS 제품 번호 239-5064 제조사 부품 번호 1078433 개당가격(10개가 1팩안에) ₩173,238.24 주문수량	Phoenix Contact	-	100 → 230 V ac	Screw Mount	10kA	BLT-T2-1S-305-UT	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, BLT-T3-230-A Surge Suppressor Unit 230 V ac Maximum Voltage Rating 4kA Maximum Surge Current Type 3 RS 제품 번호 239-5024 제조사 부품 번호 1038841 개당가격(10개가 1팩안에) ₩133,365.32 주문수량	Phoenix Contact	Type 3 Surge Protection Device	230 V ac	Socket Mount	4kA	BLT-T3-230-A	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, FLT-SEC-P-T1-1C-440/35-FM Lightning Surge Protector 440 V ac Maximum Voltage Rating Protective Device RS 제품 번호 185-3084 제조사 부품 번호 2905987 개당 ₩836,468.40 주문수량	Phoenix Contact	Protective Device	440 V ac	DIN Rail	-	FLT-SEC-P-T1-1C-440/35-FM	35.6mm	74.5mm	95mm	35.6 x 74.5 x 95.2mm	-	-40°C	+80°C	-	-	-	-
Phoenix Contact, S-PT-EX-24DC-1/2 Surge Protector 24 V dc Maximum Voltage Rating 20kA Maximum Surge Current Surge RS 제품 번호 802-6558 제조사 부품 번호 2800035 개당 ₩218,211.60 주문수량	Phoenix Contact	Surge Arrester Protection Module	24 V dc	Screw Mount	20kA	S-PT-EX-24DC-1/2	28mm	79mm	28mm	28 x 79 x 28mm	-	-25°C	+80°C	-	-	-	-
RS PRO Surge Suppressor Unit 253 V Maximum Voltage Rating 6.5kA Maximum Surge Current EMC Filter RS 제품 번호 206-7926 개당 ₩455,016.40 주문수량		EMC Filter	253 V	DIN Rail	6.5kA	MAXX	-	-	-	-	-	-25°C	+85°C	-	-	-	-
RS PRO Surge Suppressor Unit 230 V ac Maximum Voltage Rating 13.5kA Maximum Surge Current Mains Protector RS 제품 번호 206-7522 개당 ₩79,354.80 주문수량		Mains Protector	230 V ac	Plug In	13.5kA	BS1363	90mm	60mm	40mm	90 x 60 x 40mm	-	-	-	-	-	-	-
Phoenix Contact, VAL Surge Protector RS 제품 번호 130-111 제조사 부품 번호 2805321 개당 ₩109,519.40 주문수량	Phoenix Contact	-	-	DIN Rail	-	VAL	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, VAL-MS 230 Surge Arrester 230 V ac Maximum Voltage Rating Surge Arrester RS 제품 번호 241-6066 제조사 부품 번호 2839127 개당 ₩215,880.40 주문수량	Phoenix Contact	Surge Arrester	230 V ac	DIN Rail	-	VAL-MS 230	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, PT-IQ-5-HF Surge Protection Device 6 V dc Maximum Voltage Rating 10kA Maximum Surge Current Surge RS 제품 번호 249-9514 제조사 부품 번호 2801292 개당 ₩516,624.00 주문수량	Phoenix Contact	Surge Protection	6 V dc	DIN Rail	10kA	PT-IQ-5-HF	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, TTC-6-2XTVSD-24DC-PT Surge Protector 30 V dc Maximum Voltage Rating 1kA Maximum Surge Current Surge RS 제품 번호 135-7139 제조사 부품 번호 2906808 개당 ₩100,429.60 주문수량	Phoenix Contact	Surge Protection Device	30 V dc	DIN Rail	1kA	TTC-6-2XTVSD-24DC-PT	69.5mm	6.2mm	105.8mm	69.5 x 6.2 x 105.8mm	-	-40°C	+85°C	-	-	-	-
ABB, OVR Surge Protection Device 275 V Maximum Voltage Rating 40kA Maximum Surge Current Surge Protection Device RS 제품 번호 175-2595 제조사 부품 번호 2CTB815704R0200 OVR T2 1N 40-275s P TS QS 개당 ₩439,111.60 주문수량	ABB	Surge Protection Device	275 V	DIN Rail	40kA	OVR	35.6mm	76.7mm	95.8mm	35.6 x 76.7 x 95.8mm	-	-40°C	+80°C	-	-	-	-
Phoenix Contact, D-LAN Surge Protector RS 제품 번호 131-633 제조사 부품 번호 2880192 개당 ₩826,995.08 주문수량	Phoenix Contact	-	-	-	-	D-LAN	-	-	-	-	-	-	-	-	-	-	-

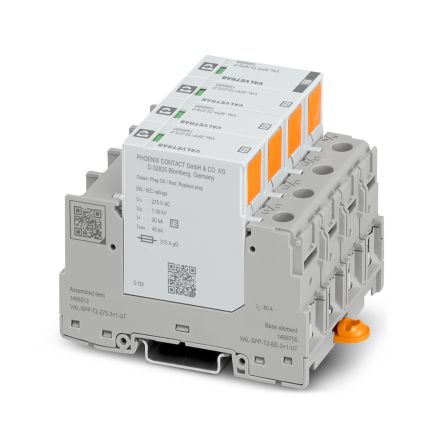

Phoenix Contact, VAL-SPP Surge Arrester 305 V dc Maximum Voltage Rating 40kA Maximum Surge Current Type 2 Arrester RS 제품 번호 496-194 제조사 부품 번호 1466213 개당 ₩444,407.56 주문수량	Phoenix Contact	Type 2 Arrester	305 V dc	DIN Rail	40kA	VAL-SPP	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact, TTC-6P-3-HF-F-M-12DC-PT-I Surge Protector 15 V dc Maximum Voltage Rating 10kA Maximum Surge Current RS 제품 번호 135-7157 제조사 부품 번호 2906796 개당 ₩297,271.24 주문수량	Phoenix Contact	Surge Protection Device	15 V dc	DIN Rail	10kA	TTC-6P-3-HF-F-M-12DC-PT-I	100mm	6.2mm	105.8mm	100 x 6.2 x 105.8mm	-	-40°C	+85°C	-	-	-	-
