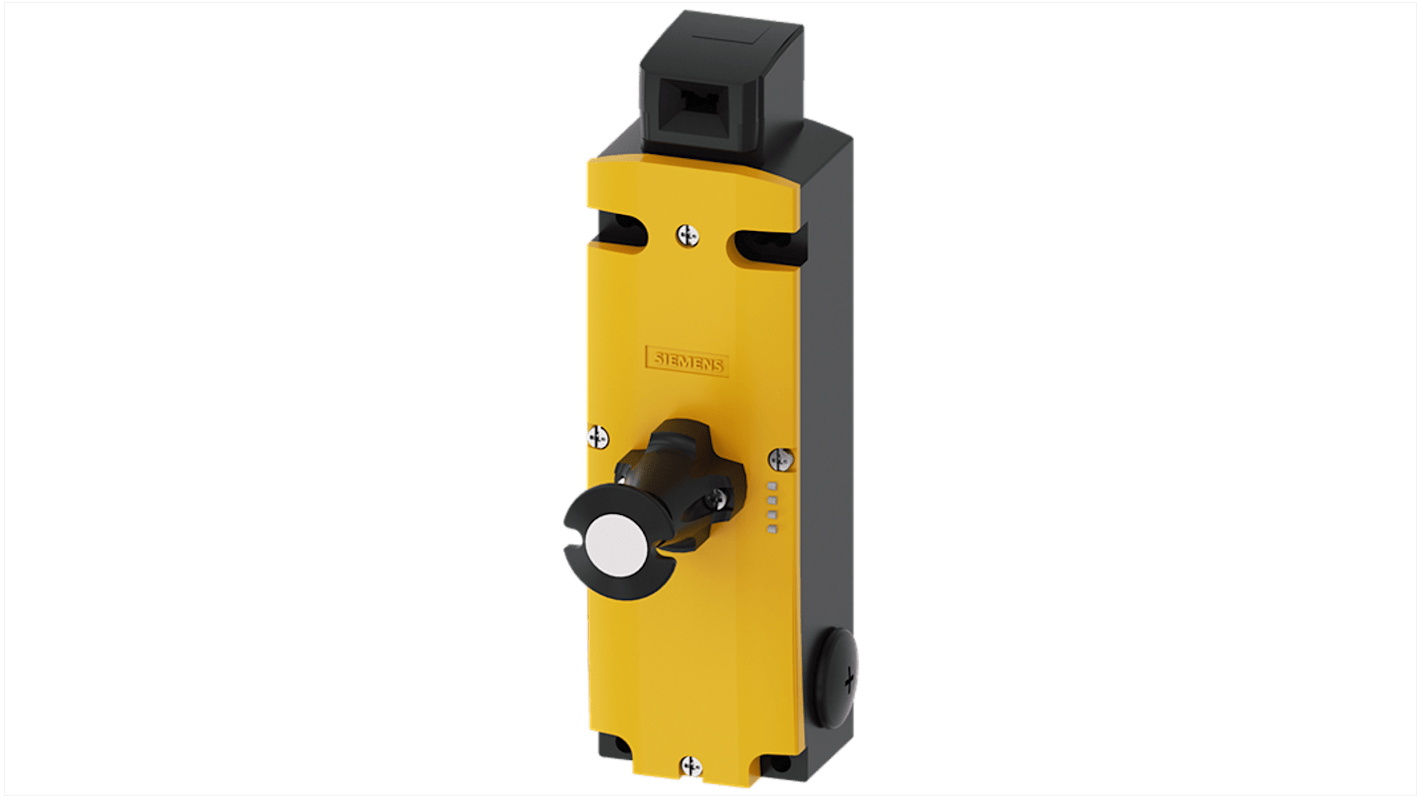

Siemens 3SE5 Series Safety Enabling Switch, 5 Position, 1 NO/2 NC, IP67, IP65
- RS 제품 번호:
- 153-293
- 제조사 부품 번호:
- 3SE5312-2SF12
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩1,497,200.00
제조사가 재고 비축중
- 2026년 9월 17일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,497,200.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 153-293
- 제조사 부품 번호:
- 3SE5312-2SF12
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Series | 3SE5 | |
| Product Type | Safety Enabling Switch | |
| Contact Configuration | 1 NO/2 NC | |
| Number of Positions | 5 | |
| IP Rating | IP67, IP65 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Housing Material | Metal | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 250V | |
| Hazardous Area Certification | No | |
| Standards/Approvals | EAC, cULus, TUV, CE, CCC, UKCA | |
| Depth | 43.8mm | |
| Mechanical Life | 1000000Cycles | |
| Width | 54mm | |
| Length | 185mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Series 3SE5 | ||
Product Type Safety Enabling Switch | ||
Contact Configuration 1 NO/2 NC | ||
Number of Positions 5 | ||
IP Rating IP67, IP65 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Housing Material Metal | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 250V | ||
Hazardous Area Certification No | ||
Standards/Approvals EAC, cULus, TUV, CE, CCC, UKCA | ||
Depth 43.8mm | ||
Mechanical Life 1000000Cycles | ||
Width 54mm | ||
Length 185mm | ||
- COO (Country of Origin):
- DE
The Siemens Safety Position Switch is designed to enhance operational safety across various industrial applications. The robust construction combined with its unique tumbler locking mechanism ensures reliability and peace of mind when engaging with automated processes. With a locking force of up to 2600 N and a positive opening function, this device provides exceptional protection against unintended activation. Its suitability for diverse environments is further enhanced by its impressive resistance to dust and moisture, meeting IP65/IP67 ratings. This versatile switch supports multiple directions of approach, making it an ideal choice for intricate machinery setups.
Constructed with high quality metal housing for durability
Positive opening function guarantees safe operation
Supports multiple directions of approach for flexibility
Designed for simplicity in installation and mounting
