Siretta SNYPER-5G GRAPHYTE (GL) RF Detector 5.2 GHz
- RS 제품 번호:
- 277-7384
- 제조사 부품 번호:
- SNYPER-5G GRAPHYTE (GL)
- 제조업체:
- Siretta
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩3,647,632.40
재고있음
- 추가로 2026년 2월 25일 부터 23 개 단위 배송
- 추가로 2026년 3월 04일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩3,647,632.40 |
| 10 - 24 | ₩3,575,515.60 |
| 25 + | ₩3,519,905.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 277-7384
- 제조사 부품 번호:
- SNYPER-5G GRAPHYTE (GL)
- 제조업체:
- Siretta
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siretta | |
| Maximum Frequency | 5.2GHz | |
| Product Type | RF Detector | |
| Minimum Frequency | 400MHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Weight | 259g | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siretta | ||
Maximum Frequency 5.2GHz | ||
Product Type RF Detector | ||
Minimum Frequency 400MHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Weight 259g | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- GB

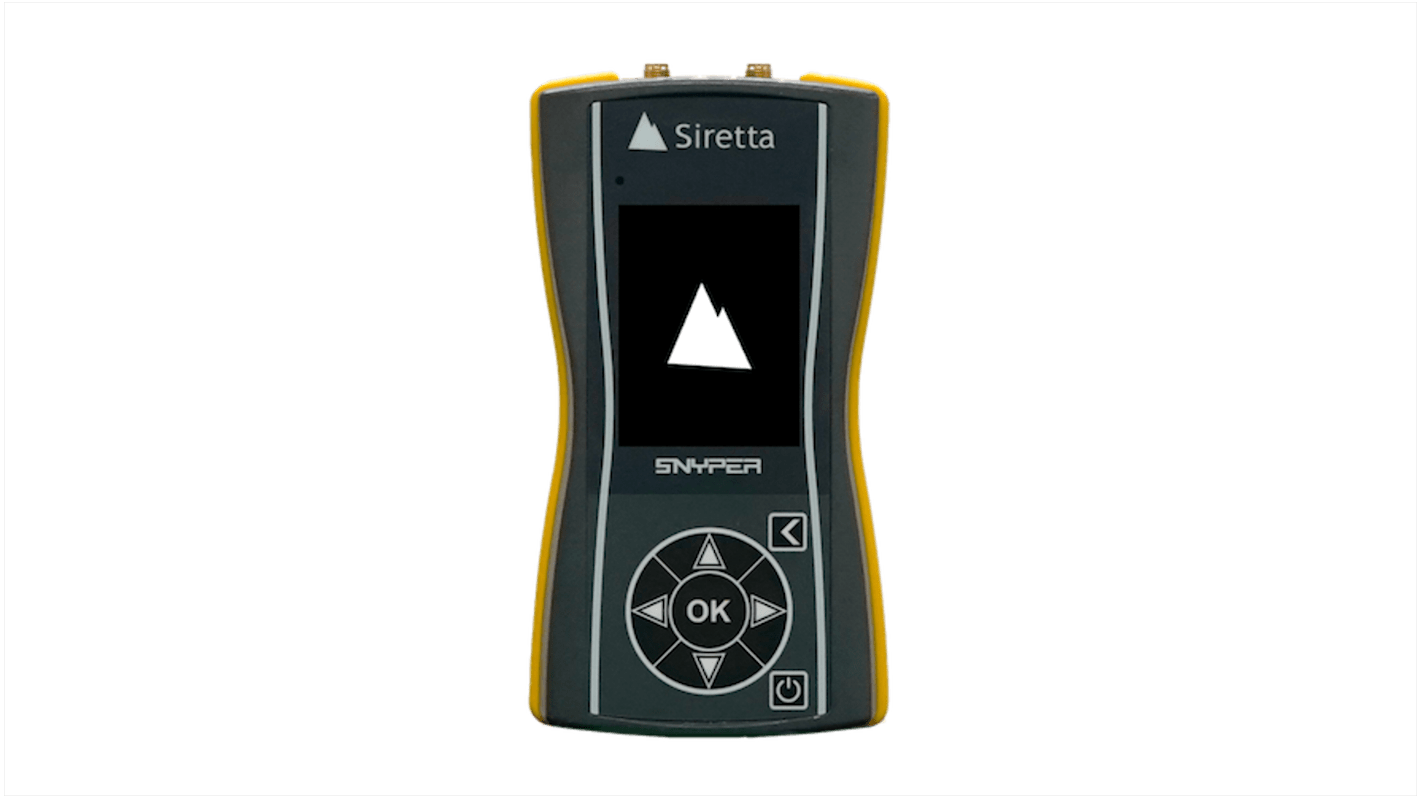

SNYPER-5G GRAPHYTE (GL)
The SNYPER-5G Graphyte (GL) is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the 5G/NR 4G/LTE , LTE-Cat M, NB-IoT & 2G/GSM networks.
Features & Benefits
Enhanced cellular surveying & sequential logging of new and existing installations on 5G. 4G, Cat M, NB-IoT and 2G networks
5G NSA Cells Identified (Based on USER SUPPLIED SIM)
User selectable survey logging options to determine most suitable & reliable mobile operator
Evaluate “preferred” MNO’s performance over time
Determines “hotspots” & assist with antenna alignment, through Siretta’s liveSCAN feature
Results are reported in CSV, graphical HTML format & Print to PDF
Save over 100 logged surveys with multiple liveSCAN logs
Additional Features
2 x SMA Female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
1 x Red LED charging indicator
1 x 2.4” Diagonal VGA 480 x 640 RGB TFT
Display: 80 degree viewing angle
Display Brightness: 700md/m2
1 x Tactile multifunction keypad
The unit can be left to conduct sequential surveys in a fixed location and automatically saving them. Four types of survey can be performed: a “FULL” survey (5G, 4G or CAT-M, NB-IoT, GSM combined), or a single selected technology only.
The SNYPER-5G Graphyte is capable of detecting 5G SA Cells without requiring a 5G SIM Card. However, if you require analysing 5G NSA Cells, a valid 5G SIM card is required. The SNYPER device will then display the 5G NSA cells of the network that the SIM card operates on. This is due to the specific way 5G NSA operates.
Physical Interfaces
2 x SMA Female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
1 x Red LED charging indicator
1 x 2.4” Diagonal VGA 480 x 640 RGB TFT
Display: 80 degree viewing angle
Display Brightness: 700md/m2
1 x Tactile multifunction keypad
Supplied Accessories
1 x 2M USB-C to USB-C cable
2 x Omnidirectional general-purpose antenna
1.5m extension cable (for use with LiveSCAN)
1 x LiveSCAN antenna
1 x Tripod stand
1 x Clip attachment for tripod stand
Certifications
CE
FCC
RoHS
