Siretta SNYPER-LTE+ SPECTRUM (EU) RF Detector 2.6 GHz
- RS 제품 번호:
- 187-3714
- 제조사 부품 번호:
- SNYPER-LTE+ SPECTRUM (EU)
- 제조업체:
- Siretta
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 187-3714
- 제조사 부품 번호:
- SNYPER-LTE+ SPECTRUM (EU)
- 제조업체:
- Siretta
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siretta | |
| Product Type | RF Detector | |
| Maximum Frequency | 2.6GHz | |
| Minimum Frequency | 700MHz | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 36 mm | |
| Weight | 200g | |
| Height | 141mm | |
| Length | 76mm | |
| Standards/Approvals | CE | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siretta | ||
Product Type RF Detector | ||
Maximum Frequency 2.6GHz | ||
Minimum Frequency 700MHz | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Width 36 mm | ||
Weight 200g | ||
Height 141mm | ||
Length 76mm | ||
Standards/Approvals CE | ||

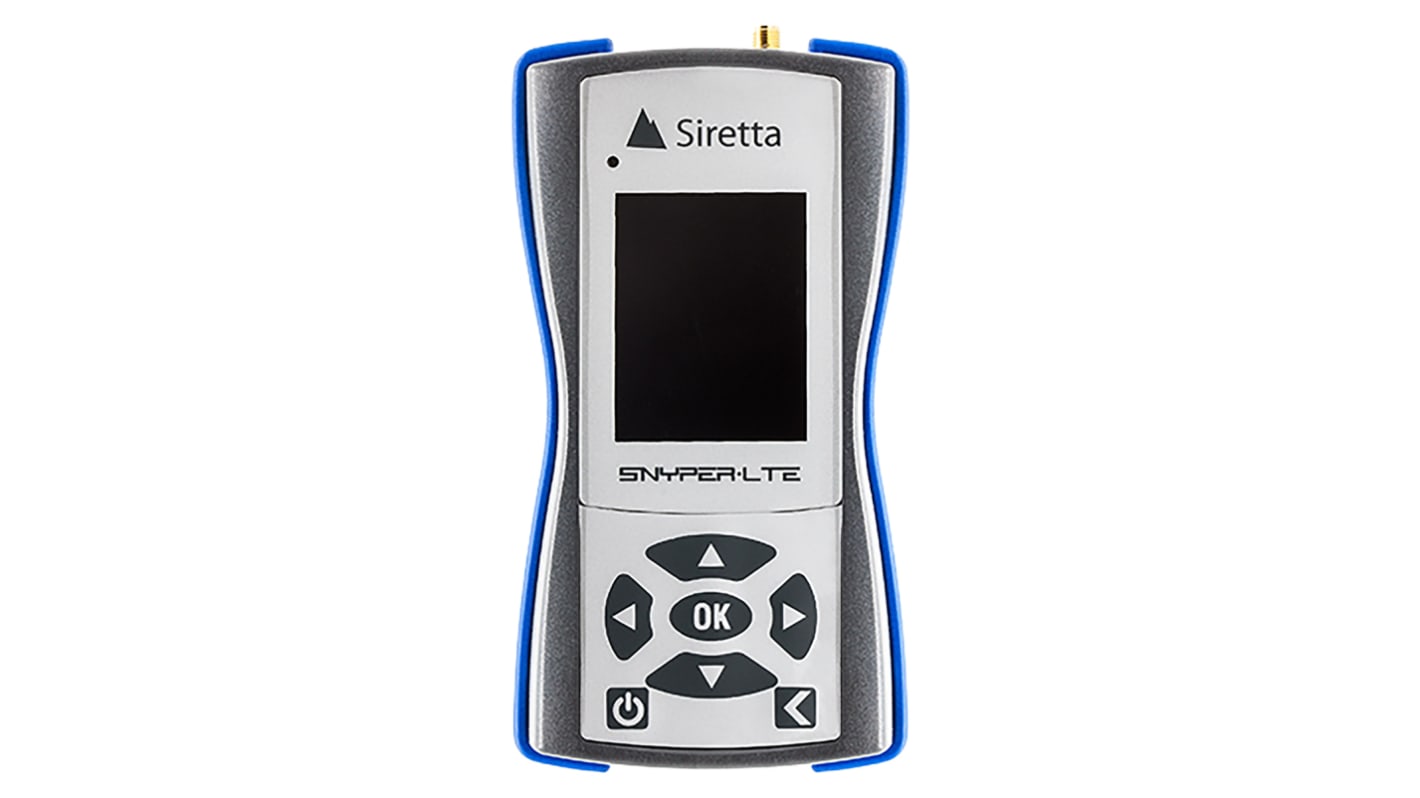

The SNYPER-LTE+ Spectrum (EU) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE, 3G/UMTS & 2G/ GSM European networks. The SNYPER-LTE+ Spectrum (EU) does not require a SIM in order to provide network survey results. The SNYPER-LTE+ Spectrum (EU) can save multiple surveys locally in memory and incorporates Siretta’s leading live Scan feature which allows you to perform real time graphical site surveys on the full colour SNYPER display. The SNYPER-LTE+ Spectrum is supplied with an omni-directional antenna to detect “hotspots” in buildings and perform site surveys and also includes a directional antenna kit to perform point-to-point antenna alignment. The SNYPER can survey the local network and display results from all discovered cellular cell towers observed in the area. Results are ordered from highest to lowest “visible” base-station signal and the key network parameters of each are displayed.
Enhanced cellular surveying of new and existing installations on 4G / LTE, 3G / UMTS and 2G / GSM networks
Establish most suitable operator for application
Evaluate your “preferred” MNO’s performance
Determines “hotspots” & assists with antenna alignment, through Siretta’s liveSCAN feature
Results are reported in CSV & graphical HTML format
SIM free operation on all bands and technologies
Complete network breakdown and summary results
