RS PRO DPl611 -1 bar to 20 bar Pressure Calibrator

RS 제품 번호:: 285-4776
제조업체:: RS PRO

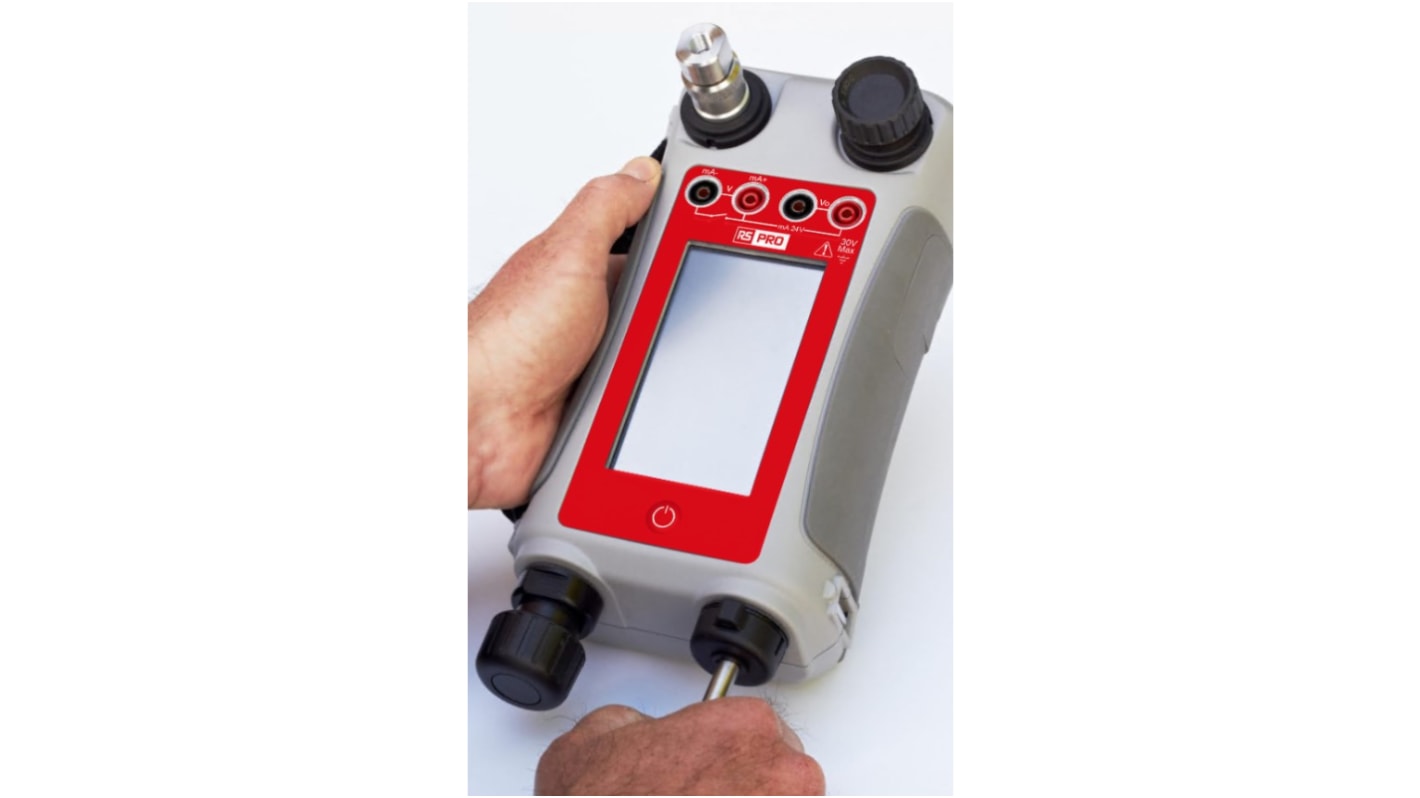

RS PRO DPl611 -1 bar to 20 bar Pressure Calibrator

Subtotal (1 unit)*

₩9,319,940.00

14 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩9,319,940.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 285-4776
제조업체:: RS PRO

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RS PRO
	Maximum Pressure Measurement	20bar
	Battery Type	8 x AA
	Product Type	Pressure Calibrator
	Accuracy	0.0185 %FS
	Minimum Pressure Measurement	-1bar
	Resolution	0.01 bar
	Pressure Port Type	Differential
	Model Number	DPl611
	Data Logging	Yes
	Current Loop Measurement	Yes
	Display Type	LCD
	Leak Testing	Yes
	Power Source	Battery
	Weight	1.96kg
	Minimum Operating Temperature	-10°C
	Battery Life	26h
	Maximum Operating Temperature	50°C
	Length	270mm
	Height	120mm
	Width	130mm
	Standards/Approvals	BS EN 613261:2013, BS EN 610101:2010, CE
	Hazardous Area Certification	No
	Plug Type	USB

	모두 선택
	브랜드 RS PRO
	Maximum Pressure Measurement 20bar
	Battery Type 8 x AA
	Product Type Pressure Calibrator
	Accuracy 0.0185 %FS
	Minimum Pressure Measurement -1bar
	Resolution 0.01 bar
	Pressure Port Type Differential
	Model Number DPl611
	Data Logging Yes
	Current Loop Measurement Yes
	Display Type LCD
	Leak Testing Yes
	Power Source Battery
	Weight 1.96kg
	Minimum Operating Temperature -10°C
	Battery Life 26h
	Maximum Operating Temperature 50°C
	Length 270mm
	Height 120mm
	Width 130mm
	Standards/Approvals BS EN 613261:2013, BS EN 610101:2010, CE
	Hazardous Area Certification No
	Plug Type USB

COO (Country of Origin):: CN

Druck Pressure Calibrator, 20 bar Maximum Pressure, -1 bar Minimum Pressure - RSPRO-DPl611-20BAR

This pressure calibrator provides portable measurement and verification of pressure systems across negative and positive ranges. It operates from battery power for field use and incorporates an LCD for readouts, supporting tasks requiring differential pressure assessment, current loop checks and leak verification within industrial maintenance and calibration routines.

Features and Benefits:

• 0.0185%FS accuracy ensures precise calibration results
• 0.01 bar resolution enables fine pressure discrimination
• Data logging stores measurement records for traceability
• 26 h battery life permits extended field operation
• Differential pressure port allows comparative pressure checks

Applications

• Suitable for on-site instrument calibration and verification
• Ideal for pressure transmitter maintenance and commissioning
• Used for leak testing of pneumatic systems and valves
• Can be used for current loop measurement and diagnostics

What temperature range can it operate within?

It functions reliably between -10°C and 50°C.

What power source and battery configuration does it use?

It is battery powered using eight AA cells and supports USB connectivity for charging or data transfer.

Which standards and approvals does it meet?

It complies with BS EN 61326-1:2013 and BS EN 61010-1:2010 and carries CE marking.

What pressure measurement span and port type are provided?

It measures from -1 bar to 20 bar and uses a differential pressure port.
