RS PRO DPl611 -1 bar to 1 bar Pressure Calibrator

RS 제품 번호:: 285-4775
제조업체:: RS PRO

RS PRO DPl611 -1 bar to 1 bar Pressure Calibrator

Subtotal (1 unit)*

₩8,687,600.00

4 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩8,687,600.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 285-4775
제조업체:: RS PRO

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RS PRO
	Product Type	Pressure Calibrator
	Maximum Pressure Measurement	1bar
	Battery Type	8 x AA
	Minimum Pressure Measurement	-1bar
	Accuracy	0.0185 %FS
	Resolution	0.01 bar
	Pressure Port Type	Differential
	Model Number	DPl611
	Data Logging	Yes
	Display Type	LCD
	Current Loop Measurement	Yes
	Leak Testing	Yes
	Power Source	Battery
	Minimum Operating Temperature	-10°C
	Weight	1.96kg
	Maximum Operating Temperature	50°C
	Battery Life	26h
	Height	120mm
	Length	270mm
	Width	130mm
	Standards/Approvals	BS EN 613261:2013, BS EN 610101:2010, CE
	Hazardous Area Certification	No
	Plug Type	USB

	모두 선택
	브랜드 RS PRO
	Product Type Pressure Calibrator
	Maximum Pressure Measurement 1bar
	Battery Type 8 x AA
	Minimum Pressure Measurement -1bar
	Accuracy 0.0185 %FS
	Resolution 0.01 bar
	Pressure Port Type Differential
	Model Number DPl611
	Data Logging Yes
	Display Type LCD
	Current Loop Measurement Yes
	Leak Testing Yes
	Power Source Battery
	Minimum Operating Temperature -10°C
	Weight 1.96kg
	Maximum Operating Temperature 50°C
	Battery Life 26h
	Height 120mm
	Length 270mm
	Width 130mm
	Standards/Approvals BS EN 613261:2013, BS EN 610101:2010, CE
	Hazardous Area Certification No
	Plug Type USB

COO (Country of Origin):: CN

Druck Pressure Calibrator, 0.01 bar Resolution, 26h Battery Life - RSPRO-DPl611-1BAR

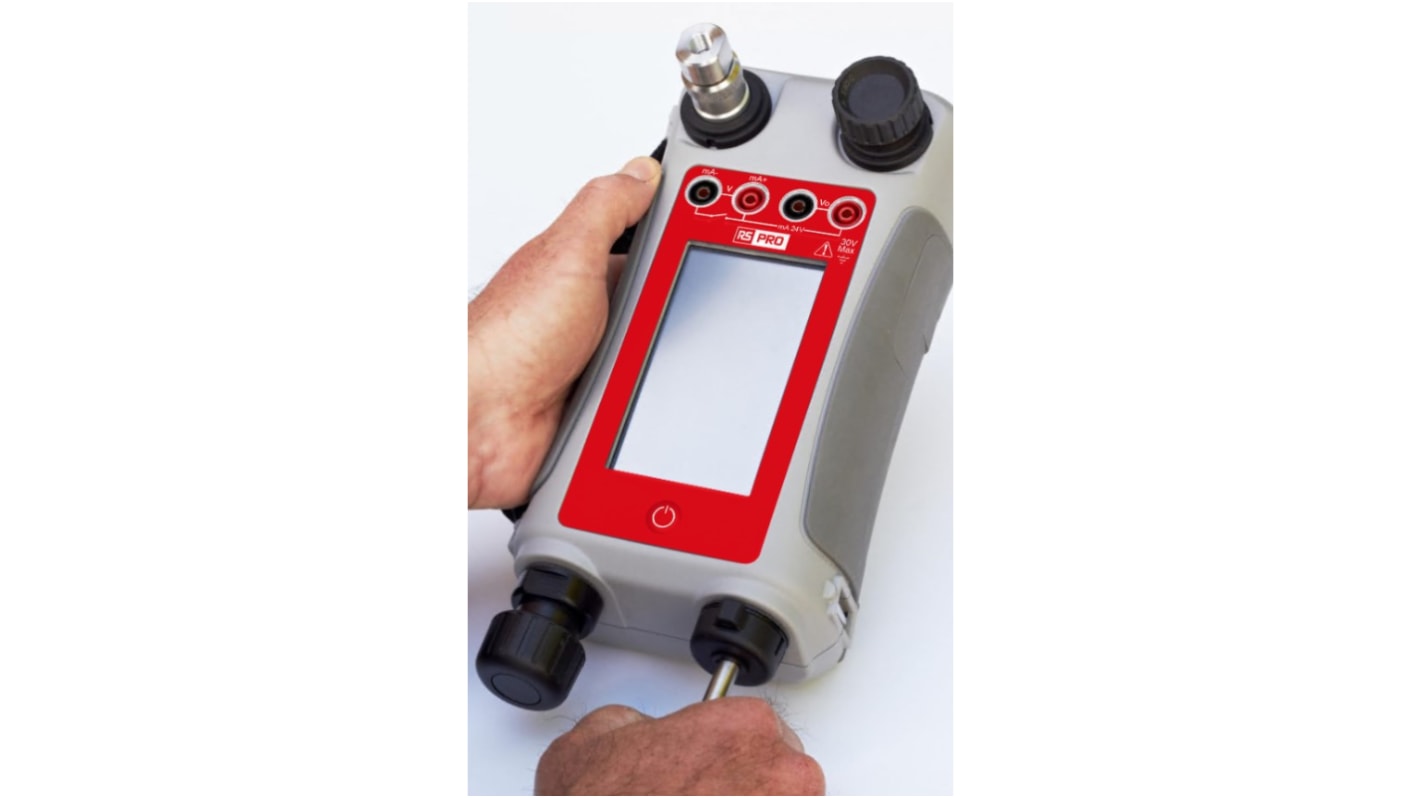

This pressure calibrator is a handheld instrument designed to measure and validate differential pressure in field and workshop environments. It operates on battery power and provides an LCD readout for clear visualisation of readings. The unit supports data logging and current loop measurement while also offering leak testing capability, making it suitable for routine commissioning and maintenance tasks where portable, self-contained measurement is required.

Features and Benefits:

• 0.01bar resolution provides fine pressure discrimination for adjustments
• 0.0185%FS accuracy ensures precise calibration results
• -1 to 1bar range covers negative and positive differential pressures
• 26h battery endurance enables extended field operations
• USB connectivity allows Rapid data transfer to host devices

Applications

• Suitable for commissioning of differential pressure instrumentation
• Ideal for routine leak testing of pneumatic lines
• Used with loop-powered transmitters for in-situ current checks
• Can be used for portable verification of pressure sensors
• Used for logging pressure trends during system start-up

What power arrangement does the instrument use for remote jobs?

It runs from eight AA cells and operates for up to 26h between battery changes.

How is data captured and exported for further analysis?

Logged measurements are stored internally and can be retrieved via the USB port.

Which pressure connections does it provide for measurement tasks?

The device uses a differential pressure port to compare two pressure sources directly.

What environmental temperatures are acceptable for safe operation?

The unit functions correctly between -10°C and 50°C.

Are there any approvals or standards indicated for technical conformity?

It meets BS EN 61326-1:2013 and BS EN 61010-1:2010 and carries CE marking.
