RS PRO -14.5 psi to 150 psi Pressure Calibrator

모든 Pressure Calibrators 열람하기

Subtotal (1 unit)*

₩6,667,232.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 39 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩6,667,232.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
285-4774
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Pressure Calibrator

Maximum Pressure Measurement

150psi

Battery Type

8 x AA

Minimum Pressure Measurement

-14.5psi

Accuracy

0.0185 %FS

Resolution

0.01 bar

Pressure Port Type

Differential

Data Logging

Yes

Display Type

Colour LCD Touch Screen

Current Loop Measurement

Yes

Leak Testing

Yes

Power Source

Battery

Weight

1.96kg

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

50°C

Battery Life

26h

Height

120mm

Width

130 mm

Length

270mm

Standards/Approvals

BS EN 613261:2013, CE, DS EN 610101:2010

Hazardous Area Certification

No

COO (Country of Origin):
CN

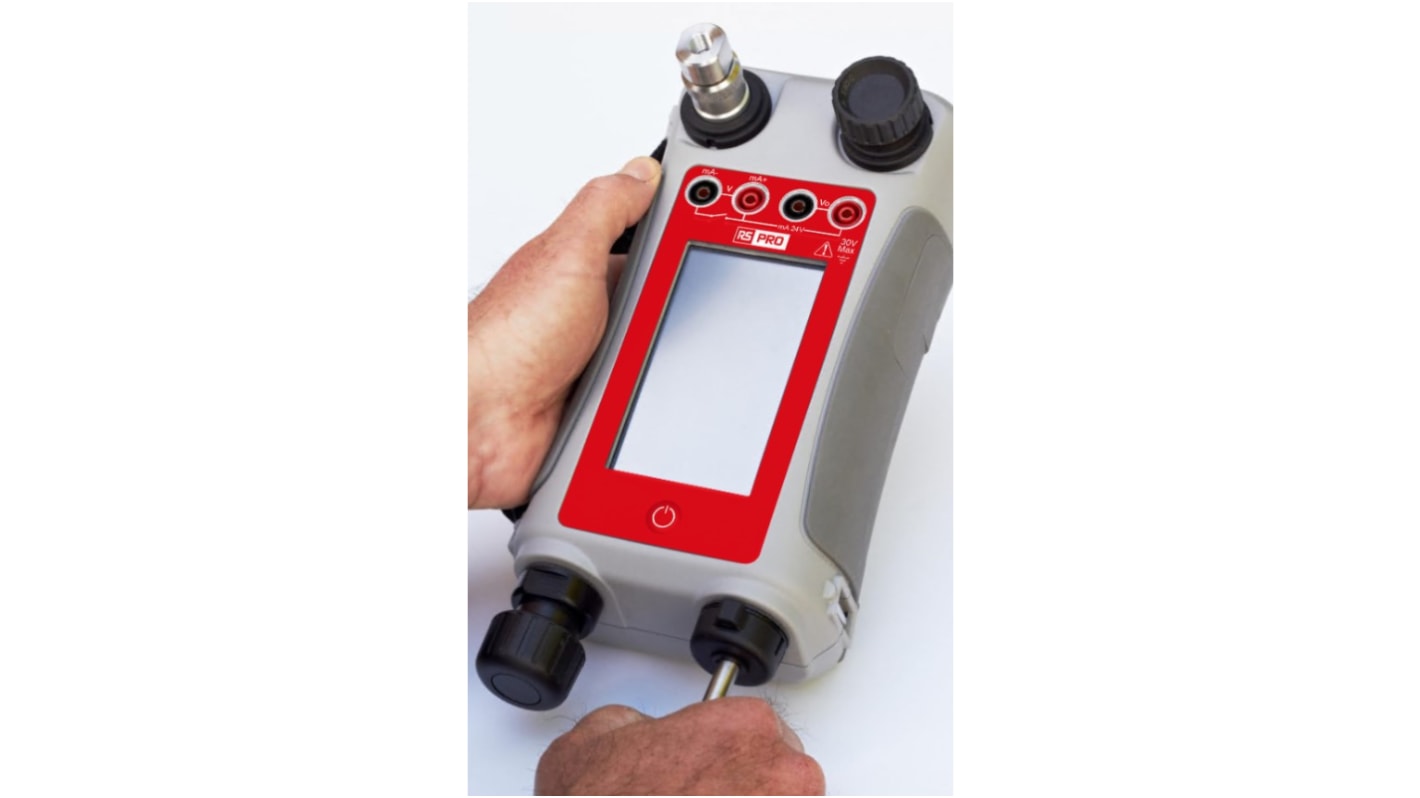

RS PRO Pressure Calibrator


The RS PRO Pressure Calibrator combines convenience, reliability, and ease of use in a small, lightweight package, capable of calibrating pressure transmitters quickly and efficiently. The innovative design of the pressure system achieves efficient generation and precise control through the use of carefully selected materials with high-tolerance machining and perfect finishes. It is truly a hand-held pressure calibrator, being 50% smaller and 33% lighter than other calibrators on the market. It comes with a quick-to-fit adapter system that offers numerous advantages over conventional methods. Damaged adapters are easily replaced, eliminating repair downtime. The DASHBOARD allows quick application selection without menus or special keys – just tap the app.

Features and Benefits


  • Pressure measurement is twice as accurate compared to standard calibrators

  • Excellent electrical accuracy ensures reliable and precise calibration results

  • Simple touch screen interface with application DASHBOARD, quick TASK selection, and FAVOURITES storage

  • Three-touch set-up for any application, saving time and improving efficiency

  • Quick fit, handtight pressure connection simplifies the setup process

  • Captures maximum and minimum values, calculates the mean, and captures the venting pressure of a relief valve

  • Adjustable display from four to seven digits, matching the displayed value to that of the test device for easy comparison

  • The step size is defined as a value in mA

  • Small, handheld, and lightweight design with integrated electrical connections

  • Powered by replaceable AA cells with 26 hours of operating time

  • Five pressure ranges are available to meet user requirements, this is -1 to 1 bar / -14.5 to 15 psi gauge range

    • Applications


    The RS PRO Pressure Calibrator is perfect for a variety of applications, including:

  • Industrial Maintenance: Ensuring precise pressure readings for the upkeep and troubleshooting of industrial equipment

  • Process Control: Calibrating pressure transmitters and sensors in process control systems to ensure optimal performance

  • Quality Assurance: Verifying the precision of pressure measurements in manufacturing and quality control processes

  • Research and Development: Providing accurate pressure calibration for experimental setups and testing in research environments

  • Field Service: Ideal for field use due to its lightweight and compact design, enabling easy on-the-go calibration

    • With its advanced features, user-friendly design, and dependable performance, the RS PRO Pressure Calibrator is the ideal tool for professionals needing accurate and efficient pressure calibration across various settings.

    What do I get with my pressure calibrator?


    Our Calibrators are supplied with a set of alkaline batteries, hand strap, test leads, G1/8 female and 1/8 NPT female adaptors, calibration certificate, quick user guide, and an electronic copy of the user manual stored in memory on the instrument.
