Pressure Calibrators

A pressure calibrator is simply a pressure measuring device capable of verifying (or calibrating) the pressure reading of another pressure measuring device. The pressure calibrator must be more accurate than the device being calibrated (usually 4 times more accurate). They can be portable hand held devices as well as workshop models and the ideal tool for busy process professional.
Pressure calibrators offer a wide variety of features, accuracies, and pressure ranges. Included are intrinsically safe percent of reading calibrators, reference data recorders, wide-range dual sensor calibrators, and calibrators with built in pressure pumps. Calibrators may also offer current measurement, voltage measurement, 24 volt loop power supplies, and even complete systems with pressure pumps and calibration software.
Features include:
• Rugged and reliable, ideal for field use
• Compact and lightweight form, combined with one-handed calibration
• Built in pumps for easy pressure generation
• Could have a precision regulator that can control a supply pressure and maintain a precise pressure output.
• Features like mA measure, loop power, switch test and transmitter error calculation
• Calibrate and test pressure devices quickly and easily, saving valuable time
Pressure calibrators come in different configurations to fit specific requirements:
For field use - requirement for portability and functions that may include voltage, amperage or digital signal monitoring/recording from the device being calibrated, handheld multi-function calibrators are the ideal tool. In many cases, one handheld pressure calibrator can replace multiple instruments, reducing ongoing recalibration and maintenance costs.
In a lab environment - higher accuracy may be required and precise control of pressure is needed, a pressure calibrator/controller would be more suited.
Deadweight testers come in various accuracies and pressure ranges. Seen as a superior choice, but they are bulky and require a skilled operator. High end deadweight testers are still considered the gold standard for pressure calibration at its highest level in laboratories, but handheld and pressure controllers are replacing deadweight testers in the field and in process applications.
These tools provide a total pressure calibration solution for transmitters, gauges and switches. They work with gases or liquids, source and measure, power transmitters, and cover a wide range.

...
Read more Read less

검색 필터링

총 45개 제품 중 1번째-20번째 제품을 조회 중
한장내 검색 결과 수
제품설명 단가 Maximum Pressure Measurement Minimum Pressure Measurement Resolution Pressure Port Type Data Logging Intrinsically Safe Current Loop Measurement Leak Testing Maximum Operating Temperature Minimum Operating Temperature Weight Dimensions Height Length
RS 제품 번호 910-8030
제조사 부품 번호DPI612-PFX-20G
제조사Druck
₩6,917,643.80
Each
수량
20bar -1bar - Gauge Yes - Yes Yes +50°C -10°C 3.4kg 350 x 170 x 145mm 145mm 350mm
RS 제품 번호 910-8027
제조사 부품 번호DPI612-PFX-2G
제조사Druck
₩6,917,643.80
Each
수량
2bar -1bar - Gauge Yes - Yes Yes +50°C -10°C 3.4kg 350 x 170 x 145mm 145mm 350mm
RS 제품 번호 799-9152

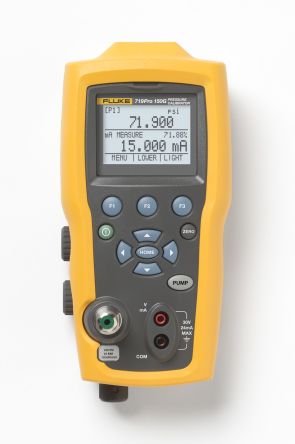

제조사 부품 번호Fluke-719Pro-300G
제조사Fluke
₩5,316,952.60
Each
수량
20bar -0.8bar 1 mbar - - - Yes - +50°C -10°C 1.2kg 241.3 x 111.8 x 70mm 70mm 241.3mm
RS 제품 번호 817-2239
제조사 부품 번호DPI611-13G
제조사Druck
₩6,763,221.95
Each
수량
20 bar, 300 psi -14.5 psi, -1 bar 0.01 bar Gauge Yes - - Yes +40 °C, +50°C -10°C, 0 °C 2kg 270 x 130 x 120mm 120mm 270mm
RS 제품 번호 532-7631
제조사 부품 번호I615SPC-13G
제조사Druck
₩10,647,559.15
Each
수량
20bar 0bar - Gauge Yes Yes Yes Yes +50°C -10°C 3kg 300 x 170 x 140mm 140mm 300mm
RS 제품 번호 532-7619
제조사 부품 번호I615SPC-07G
제조사Druck
₩10,024,710.25
Each
수량
2bar 0bar - Gauge Yes Yes Yes Yes +50°C -10°C 3kg 300 x 170 x 140mm 140mm 300mm
RS 제품 번호 520-715
제조사 부품 번호FLUKE-718EX 300G
제조사Fluke
₩6,133,421.30
Each
수량
20bar -830mbar 0.0001 bar - - Yes Yes - +55°C -10°C 992g 216 x 94 x 66mm 66mm 216mm
RS 제품 번호 910-8021
제조사 부품 번호DPI612-PFX-7G
제조사Druck
₩6,457,845.60
Each
수량
7bar -1bar - Gauge Yes - Yes Yes +50°C -10°C 3.4kg 350 x 170 x 145mm 145mm 350mm
RS 제품 번호 910-8049
제조사 부품 번호DPI612-HFP-700
제조사Druck
₩9,160,442.65
Each
수량
700bar 0bar - Absolute Yes - Yes Yes +50°C -10°C 4.7kg 350 x 170 x 170mm 170mm 350mm
RS 제품 번호 532-7625
제조사 부품 번호I615SPC-10G
제조사Druck
₩10,024,710.25
Each
수량
7bar 0bar - Gauge Yes Yes Yes Yes +50°C -10°C 3kg 300 x 170 x 140mm 140mm 300mm
RS 제품 번호 451-1251
제조사 부품 번호I610SPC-13G
제조사Druck
₩9,804,016.60
Each
수량
20bar 0bar - Gauge Yes Yes Yes Yes +50°C -10°C 3kg 300 x 170 x 140mm 140mm 300mm
RS 제품 번호 623-9838
제조사 부품 번호FLUKE-717 300G
제조사Fluke
₩2,314,225.95
Each
수량
20.68bar -850mbar 1 mbar - - - Yes - +55°C -10°C 600g 201 x 98 x 52mm 52mm 201mm
RS 제품 번호 817-2232
제조사 부품 번호DPI611-07G
제조사Druck
₩7,232,678.20
Each
수량
2bar 1bar 0.01 bar Gauge Yes - - Yes +40 °C, +50°C -10 °C, 0°C 2kg 270 x 130 x 120mm 120mm 270mm
RS 제품 번호 351-2815
제조사 부품 번호FLUKE-718 100
제조사Fluke
₩3,966,987.85
Each
수량
6.895bar -850mbar 1 mbar - - - Yes - +55°C -10°C 992g 216 x 94 x 66mm 66mm 216mm
RS 제품 번호 910-8046
제조사 부품 번호DPI612-PFP-100G
제조사Druck
₩9,390,853.25
Each
수량
100bar 0bar - Gauge Yes - Yes Yes +50°C -10°C 3.4kg 350 x 170 x 145mm 145mm 350mm
RS 제품 번호 451-1245
제조사 부품 번호I610SPC-10G
제조사Druck
₩12,602,789.60
Each
수량
7bar 0bar - Gauge Yes Yes Yes Yes +50°C -10°C 3kg 300 x 170 x 140mm 140mm 300mm
RS 제품 번호 662-2362
제조사 부품 번호Fluke-719 100G
제조사Fluke
₩5,583,701.40
Each
수량
8bar -850mbar 1 mbar - - - Yes - +55°C -10°C 912g 210 x 87 x 60mm 60mm 210mm
RS 제품 번호 351-2809
제조사 부품 번호FLUKE-718 30
제조사Fluke
₩4,078,733.55
Each
수량
2bar -850mbar 0.1 mbar - - - Yes - +55°C -10°C 992g 216 x 94 x 66mm 66mm 216mm
RS 제품 번호 623-9917
제조사 부품 번호FLUKE-718 300G
제조사Fluke
₩4,551,401.40
Each
수량
20bar -850mbar 1 mbar - - - Yes - +55°C -10°C 992g 216 x 94 x 66mm 66mm 216mm
RS 제품 번호 817-2235
제조사 부품 번호DPI611-10G
제조사Druck
₩5,695,519.95
Each
수량
7bar 1bar 0.01 bar - Yes - - Yes +40 °C, +50°C -10 °C, 0°C 2kg 270 x 130 x 120mm 120mm 270mm
