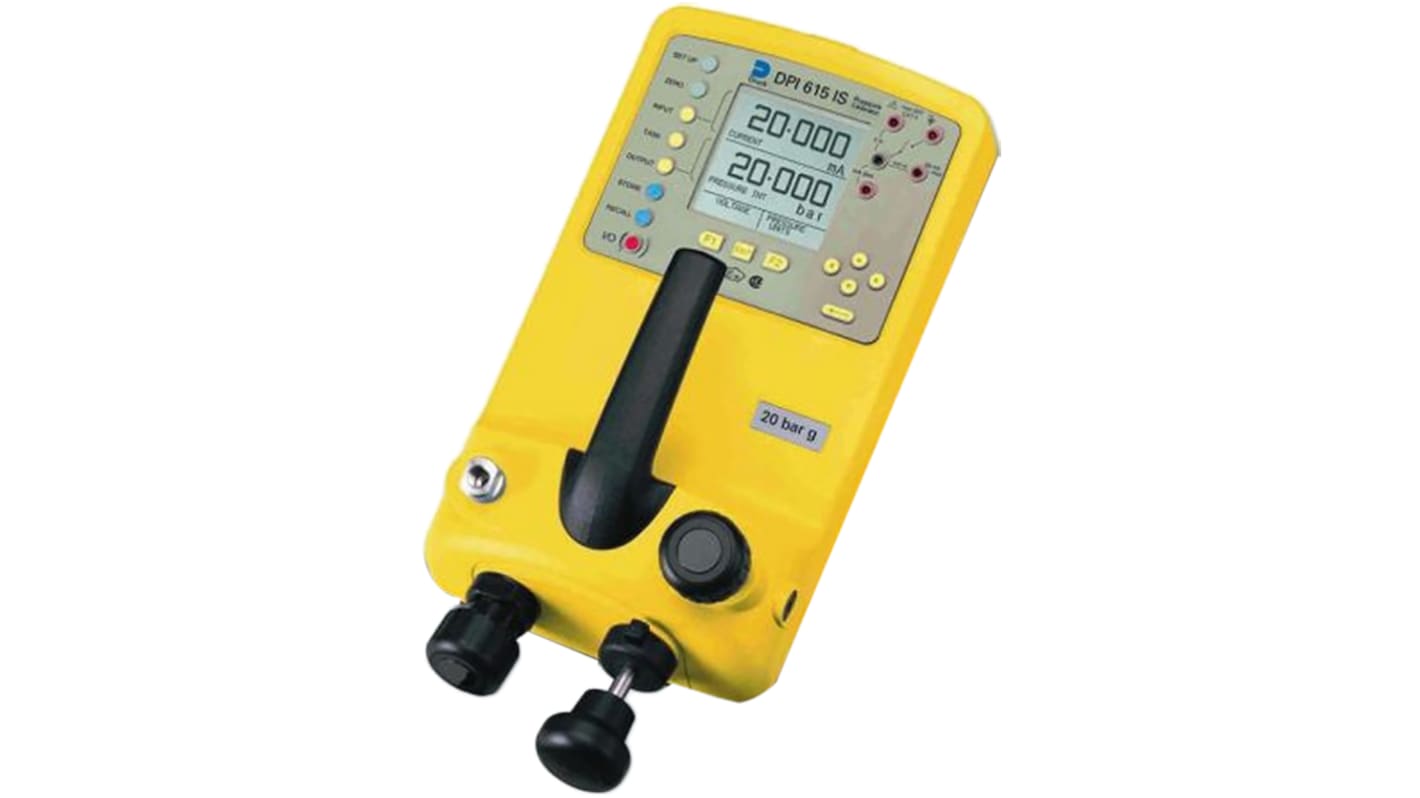

Druck DPI 615 0 bar to 20 bar Pressure Calibrator

RS 제품 번호:: 532-7631
제조사 부품 번호:: I615SPC-13G-4025
제조업체:: Druck

Druck DPI 615 0 bar to 20 bar Pressure Calibrator

현재 이용 불가

이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.

대체품

이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

Druck DPI610E 0 bar to 20 bar Pressure Calibrator

RS 제품 번호: 251-9240

개당

₩16,932,920.00

RS 제품 번호:: 532-7631
제조사 부품 번호:: I615SPC-13G-4025
제조업체:: Druck

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Druck
	Battery Type	Rechargeable
	Product Type	Pressure Calibrator
	Maximum Pressure Measurement	20bar
	Minimum Pressure Measurement	0bar
	Accuracy	±0.025 %
	Pressure Port Type	Gauge
	Model Number	DPI 615
	Data Logging	Yes
	Intrinsically Safe	Yes
	Display Type	LCD Backlight
	Current Loop Measurement	Yes
	Leak Testing	Yes
	Power Source	Battery
	Weight	3kg
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Length	300mm
	Height	140mm
	Width	170mm
	Standards/Approvals	No
	Hazardous Area Certification	ATEX

	모두 선택
	브랜드 Druck
	Battery Type Rechargeable
	Product Type Pressure Calibrator
	Maximum Pressure Measurement 20bar
	Minimum Pressure Measurement 0bar
	Accuracy ±0.025 %
	Pressure Port Type Gauge
	Model Number DPI 615
	Data Logging Yes
	Intrinsically Safe Yes
	Display Type LCD Backlight
	Current Loop Measurement Yes
	Leak Testing Yes
	Power Source Battery
	Weight 3kg
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Length 300mm
	Height 140mm
	Width 170mm
	Standards/Approvals No
	Hazardous Area Certification ATEX

DPI 610 / 615 IS Instruction Manual

제외

COO (Country of Origin):: GB

Druck Pressure Calibrator, 20 bar Maximum Pressure, ±0.025% Accuracy - I615SPC-13G-4025

This pressure calibrator provides portable pressure generation and measurement for field and workshop use, combining pressure and electrical signal testing in a single unit. It operates across typical ambient conditions and is designed for use where intrinsically safe operation is required in classified zones. The device supports on-board data capture and offers a battery-powered option for remote calibration tasks.

Features and Benefits:

• ±0.025% accuracy ensures precise pressure results
• 0 to 20 bar range provides comprehensive measurement coverage
• Rechargeable battery enables sustained field operation
• Data logging records measurement sequences for traceability
• Intrinsically safe ATEX design permits hazardous-area use

Applications

• Suitable for pressure transmitter calibration in hazardous zones
• Ideal for on-site loop checks with 4 to 20 mA instruments
• Used for leak testing of gauge pressure systems
• Can be used for portable maintenance and commissioning tasks
• Suitable for recorded test procedures requiring data export

What temperature range can it be operated within?

It functions reliably between -10°C and 50°C.

How portable is the instrument in terms of handling?

It weighs 3 kg and presents a Compact form for handheld or carry use.

Which display and user feedback does it provide?

The unit uses an LCD with backlight for clear readings in varied lighting.

How does it Interface with current loop devices?

It measures and supports current loop inputs and outputs including 4 to 20 mA signals.

What pressure port type is fitted for connections?

The instrument offers gauge-type pressure ports for standard gauge fittings.
