Fluke FLK-729 150G -0.82 bar to 10.34 bar Pressure Calibrator

RS 제품 번호:: 144-5555
제조사 부품 번호:: FLK-729 150G
제조업체:: Fluke

Fluke FLK-729 150G -0.82 bar to 10.34 bar Pressure Calibrator

Subtotal (1 unit)*

₩27,943,402.50

제한된 재고

1 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩27,943,402.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 144-5555
제조사 부품 번호:: FLK-729 150G
제조업체:: Fluke

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Fluke
	Maximum Pressure Measurement	10.34bar
	Battery Type	Rechargeable
	Product Type	Pressure Calibrator
	Accuracy	±0.01 %
	Minimum Pressure Measurement	-0.82bar
	Resolution	10.34 bar
	Pressure Port Type	Differential
	Model Number	FLK-729 150G
	Data Logging	Yes
	Current Loop Measurement	Yes
	Display Type	LCD
	Leak Testing	Yes
	Power Source	Battery
	Weight	3kg
	Maximum Operating Temperature	50°C
	Width	70mm
	Standards/Approvals	No
	Height	279.4mm
	Length	172.7mm
	Hazardous Area Certification	NO

	모두 선택
	브랜드 Fluke
	Maximum Pressure Measurement 10.34bar
	Battery Type Rechargeable
	Product Type Pressure Calibrator
	Accuracy ±0.01 %
	Minimum Pressure Measurement -0.82bar
	Resolution 10.34 bar
	Pressure Port Type Differential
	Model Number FLK-729 150G
	Data Logging Yes
	Current Loop Measurement Yes
	Display Type LCD
	Leak Testing Yes
	Power Source Battery
	Weight 3kg
	Maximum Operating Temperature 50°C
	Width 70mm
	Standards/Approvals No
	Height 279.4mm
	Length 172.7mm
	Hazardous Area Certification NO

COO (Country of Origin):: CN

Fluke Pressure Calibrator, ±0.01% Accuracy, 10.34 Bar Maximum Pressure Measurement - FLK-729 150G

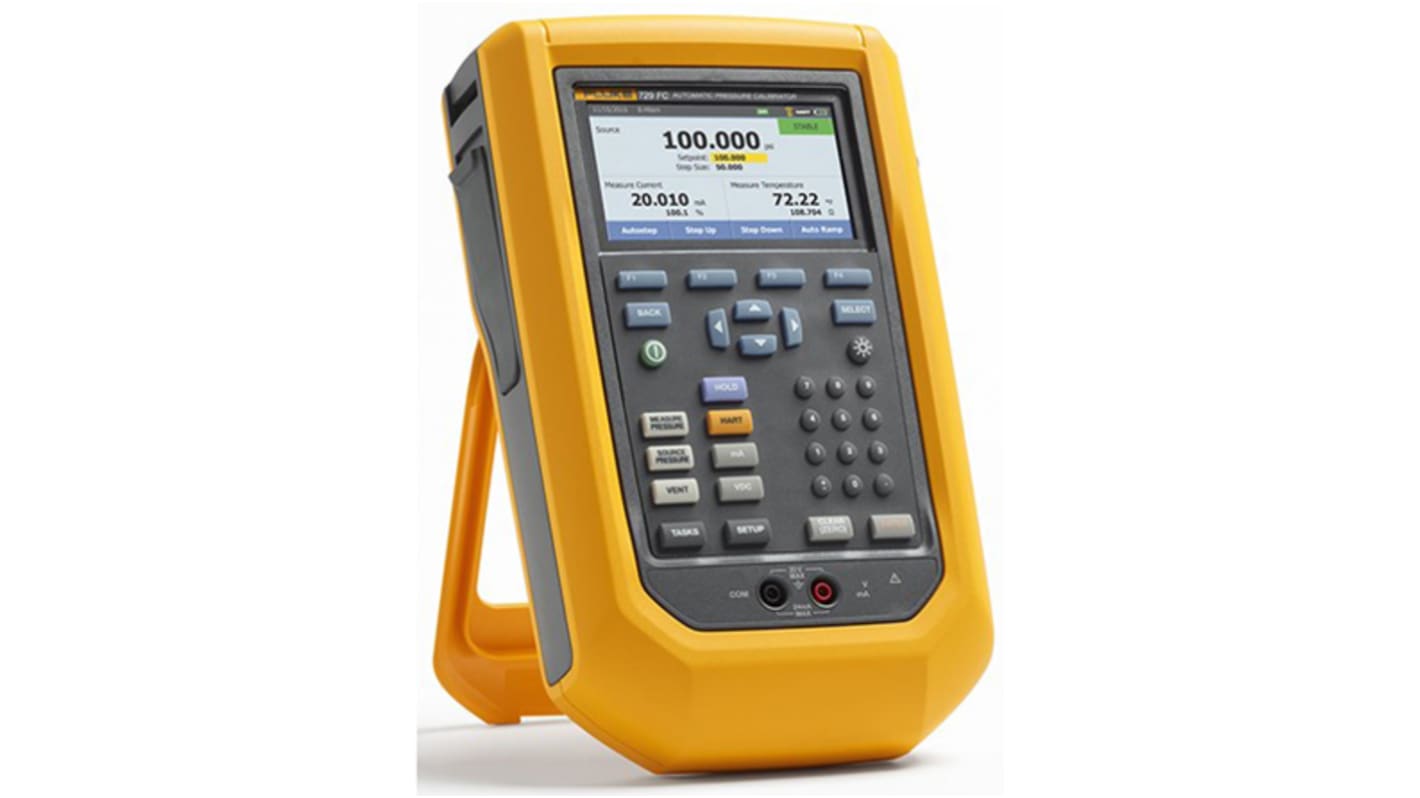

This pressure calibrator is a portable, battery-powered instrument designed for field calibration of pressure transmitters and loop devices. It automates pressure generation and regulation via an internal electric pump, simplifies multi-point testing with on-board templates, and interfaces with Fluke Connect and calibration management software for wireless monitoring and data transfer where supported.

Features & Benefits

• ±0.01% accuracy ensures precise measurement and verification
• Differential pressure port supports ranges from -0.82 to 10.34 bar
• Built-in leak testing verifies test setup integrity quickly
• 4–20 mA source, simulate and measure with 24V loop power
• Rechargeable battery enables mobile use and on-site logging
• Colour LCD display presents multi-channel data clearly

Applications

• Suitable for commissioning pressure transmitters in process plants
• Ideal for routine maintenance of 4–20 mA control loops
• Used for on-site calibration of differential pressure sensors to 10.34 bar
• Can be used for documenting multi-point tests with data logging
• Used with HART-enabled transmitters for Basic configuration and trim

What pressure range can it reliably measure and source?

It covers negative to positive differential pressures from -0.82 to 10.34 bar and supports automated generation up to the model’s maximum range.

How does it help with documenting calibration results?

You can use built-in test templates to automatically step through points and Record applied pressure, measured mA and percentage error for each point, and transfer results to calibration management software.

Can it power transmitters during testing?

Yes, the unit provides 24V loop power to energise transmitters during standalone mA measurements and simulations.

What environmental limits affect operation and charging?

Measurement operates from -10 °C to 50 °C

pressure control is 0 °C to 50 °C and the battery will only charge up to 40 °C.

What connections and compatibility are available for extended measurement ranges?

It accepts legacy pressure modules for alternate ranges and supports an optional RTD probe for temperature measurement when required.
