Festo MS series 1 μm 1/4 in G 14 bar Pneumatic Filter 360L/min max with Manual drain

모든 Pneumatic Filters 열람하기

Subtotal (1 unit)*

₩122,300.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 9 개 단위 배송 준비 완료
  • 추가로 2026년 10월 01일 부터 6 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩122,300.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
202-3331
제조사 부품 번호:
MS4-LFM-1/4-BRM
제조업체:
Festo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Festo

Filtration Size

1μm

Product Type

Pneumatic Filter

Port Size

1/4 in G

Drain Type

Manual

Series

MS

Maximum Flow Rate

360L/min

Seal Material

Nitrile Rubber (NBR)

Maximum Operating Pressure

14 bar

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Model Number

529461

Bowl Material

Plastic

Filter Type

Fibre

COO (Country of Origin):
HU

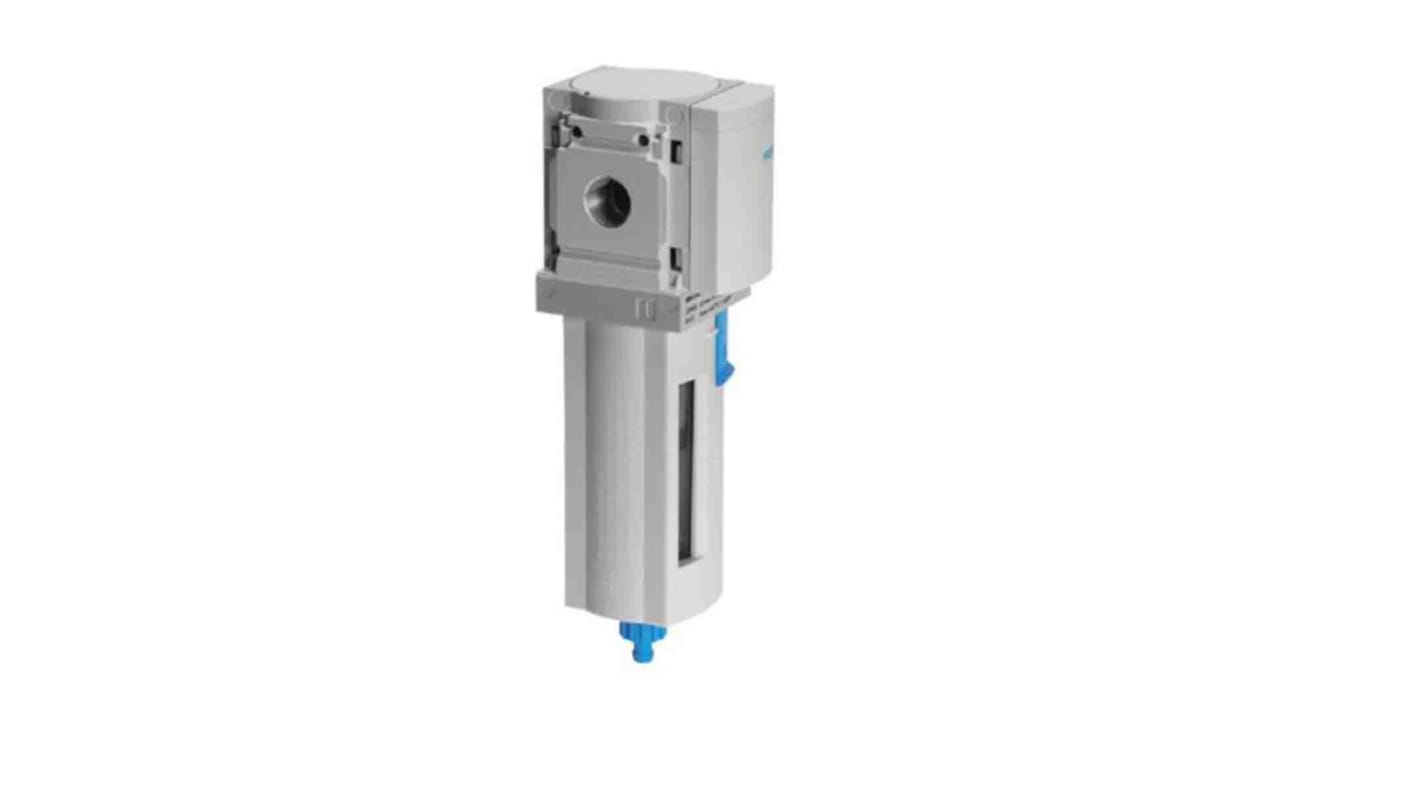

Festo Series MS Pneumatic Filter, 1 μm Filtration size, 14 Bar Maximum Operating Pressure - MS4-LFM-1/4-BRM, Numeric Part Number: 529461


This pneumatic filter is designed to ensure clean air for various applications in the automation and engineering sectors. The unit features a filtration size of 1μm, crucial for maintaining optimal air quality. With a maximum flow rate of 360 L/min, it supports efficient filtration processes. It operates effectively within a pressure range of 0 bar to 14 bar and accommodates temperatures between -10°C and +60°C.

Features & Benefits


• High filtration efficiency of 99.99% ensures clean airflow

• Manual drain type for easy condensate removal

• Corrosion resistance class 2 for moderate environments

• Compact design for line installation in pneumatic systems

Applications


• Appropriate for use in the food industry due to material compliance

• Ideal for automation technologies requiring clean compressed air

• Used in electronics manufacturing to maintain air quality

• Employed in mechanical where air purity is vital

What is the maximum condensate volume this product can handle?


The maximum condensate volume for this filter is 19cm³, which allows for effective removal of moisture from the compressed air system without frequent intervention.

What materials are used in the construction of the filter?


The housing is made of die-cast aluminium, while the bowl is constructed from plastic, ensuring durability and ease of maintenance. The seals are made from NBR, which provides excellent resistance to various fluids.

How does the filter contribute to air quality in industrial settings?


This filter removes particulates and aerosols, significantly improving air quality by maintaining a residual oil content of only 0.5 mg/m³, making it suitable for sensitive applications.
