PicoScope 2000 Series, 25 MHz PC Based Oscilloscope 2-Channel
- RS 제품 번호:
- 793-3657
- Distrelec 제품 번호:
- 110-71-705
- 제조사 부품 번호:
- PICOSCOPE 2205A
- 제조업체:
- Pico Technology

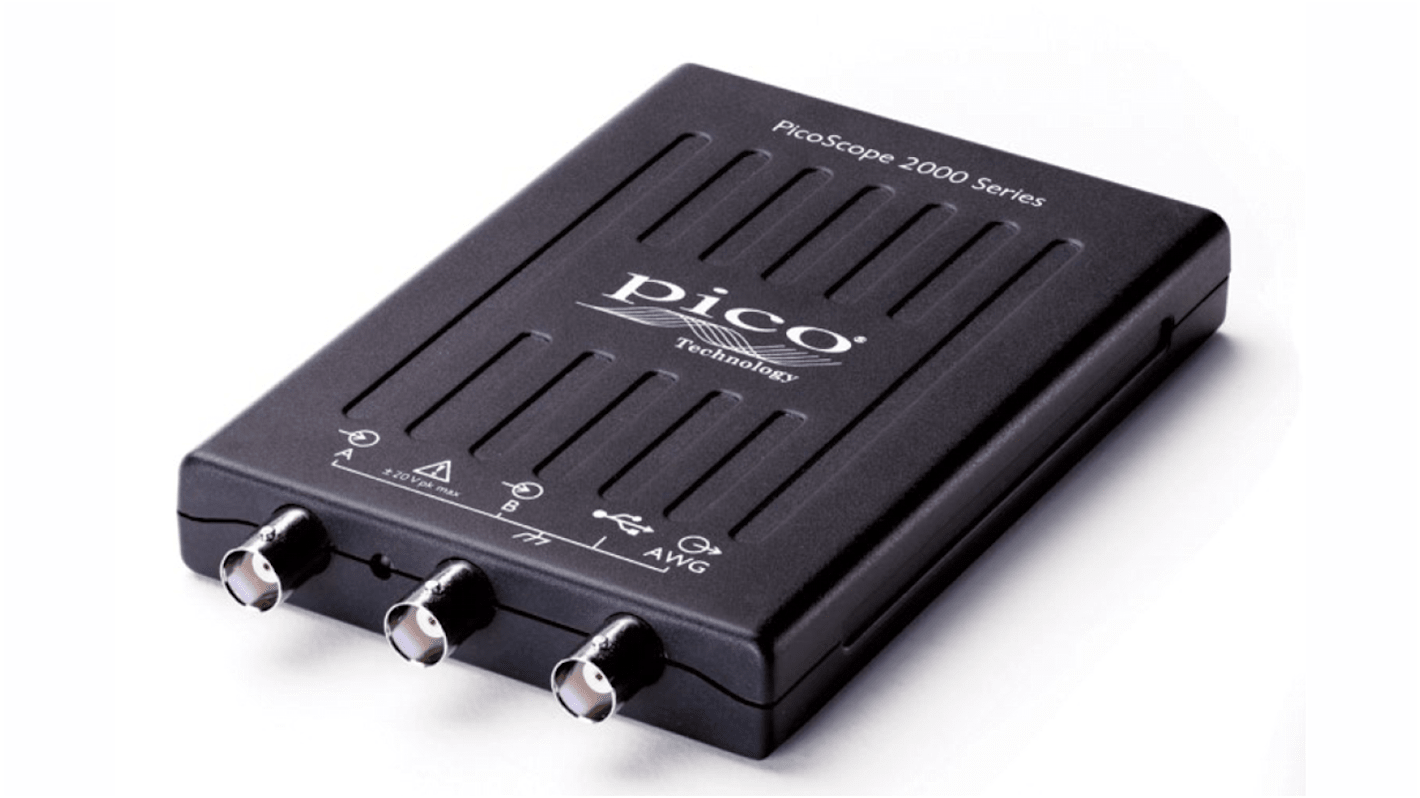

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 unit)*
₩444,200.00
재고있음
- 추가로 2026년 11월 23일 부터 21 개 단위 배송
- 추가로 2026년 11월 25일 부터 14 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩444,200.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 793-3657
- Distrelec 제품 번호:
- 110-71-705
- 제조사 부품 번호:
- PICOSCOPE 2205A
- 제조업체:
- Pico Technology
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pico Technology | |
| Product Type | Oscilloscope | |
| Bandwidth | 25MHz | |
| Number of Channels | 2 | |
| Model Number | PicoScope 2205A | |
| Oscilloscope Type | PC Based | |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB | |
| Series | PicoScope 2000 | |
| Standards/Approvals | REACH, RoHS, WEEE | |
| Length | 142mm | |
| Width | 92mm | |
| Height | 18.80mm | |
| Maximum Vertical Sensitivity | 4V/div | |
| Minimum Time Base | 5ns/div | |
| Maximum Time Base | 5000s/div | |
| Rise Time | 14ns | |
| Vertical Resolution | 8 bit | |
| Minimum Vertical Sensitivity | 10mV/div | |
| Power Source | USB | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pico Technology | ||
Product Type Oscilloscope | ||
Bandwidth 25MHz | ||
Number of Channels 2 | ||
Model Number PicoScope 2205A | ||
Oscilloscope Type PC Based | ||
Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB | ||
Series PicoScope 2000 | ||
Standards/Approvals REACH, RoHS, WEEE | ||
Length 142mm | ||
Width 92mm | ||
Height 18.80mm | ||
Maximum Vertical Sensitivity 4V/div | ||
Minimum Time Base 5ns/div | ||
Maximum Time Base 5000s/div | ||
Rise Time 14ns | ||
Vertical Resolution 8 bit | ||
Minimum Vertical Sensitivity 10mV/div | ||
Power Source USB | ||
- COO (Country of Origin):
- GB
PicoScope 2000 Series Oscilloscope, 25MHz Bandwidth, 2 Channels - PICOSCOPE 2205A
This oscilloscope is a Compact PC-linked instrument designed for waveform capture and analysis via a USB connection. It operates as a two-channel, computer-hosted device suited to bench and field diagnostics, supporting multiple serial interfaces for signal decoding and powered directly from the USB port.
Features and Benefits:
• 25MHz bandwidth provides accurate analogue signal capture
• 5ns/div time base enables precise short-duration timing measurements
• 14ns rise time resolves fast edge transitions for fault analysis
• 10mV/div sensitivity allows measurement of low-amplitude signals
• 8-bit vertical resolution balances sample density and data throughput
• 5ns/div time base enables precise short-duration timing measurements
• 14ns rise time resolves fast edge transitions for fault analysis
• 10mV/div sensitivity allows measurement of low-amplitude signals
• 8-bit vertical resolution balances sample density and data throughput
Applications
• Suitable for automotive serial bus diagnostics using CAN and LIN
• Ideal for electronics lab waveform visualisation and troubleshooting
• Used with embedded systems for SPI, I2C and UART serial decoding
• Can be used for RS232 signal validation and communication testing
• Suitable for portable field measurements requiring USB power
• Ideal for electronics lab waveform visualisation and troubleshooting
• Used with embedded systems for SPI, I2C and UART serial decoding
• Can be used for RS232 signal validation and communication testing
• Suitable for portable field measurements requiring USB power
How is the instrument powered during operation?
It draws power from the host USB connection and requires no external supply.
Which serial protocols can it Interface with for decoding?
It supports CAN, I2C, LIN, RS232, SPI and UART signalling for protocol analysis.
What type of oscilloscope architecture does it use?
It functions as a PC-based oscilloscope, relying on the host computer for display and control.
What precision does the vertical system provide for measurements?
The vertical input offers 8-bit quantisation with selectable sensitivity down to 10mV/div.
