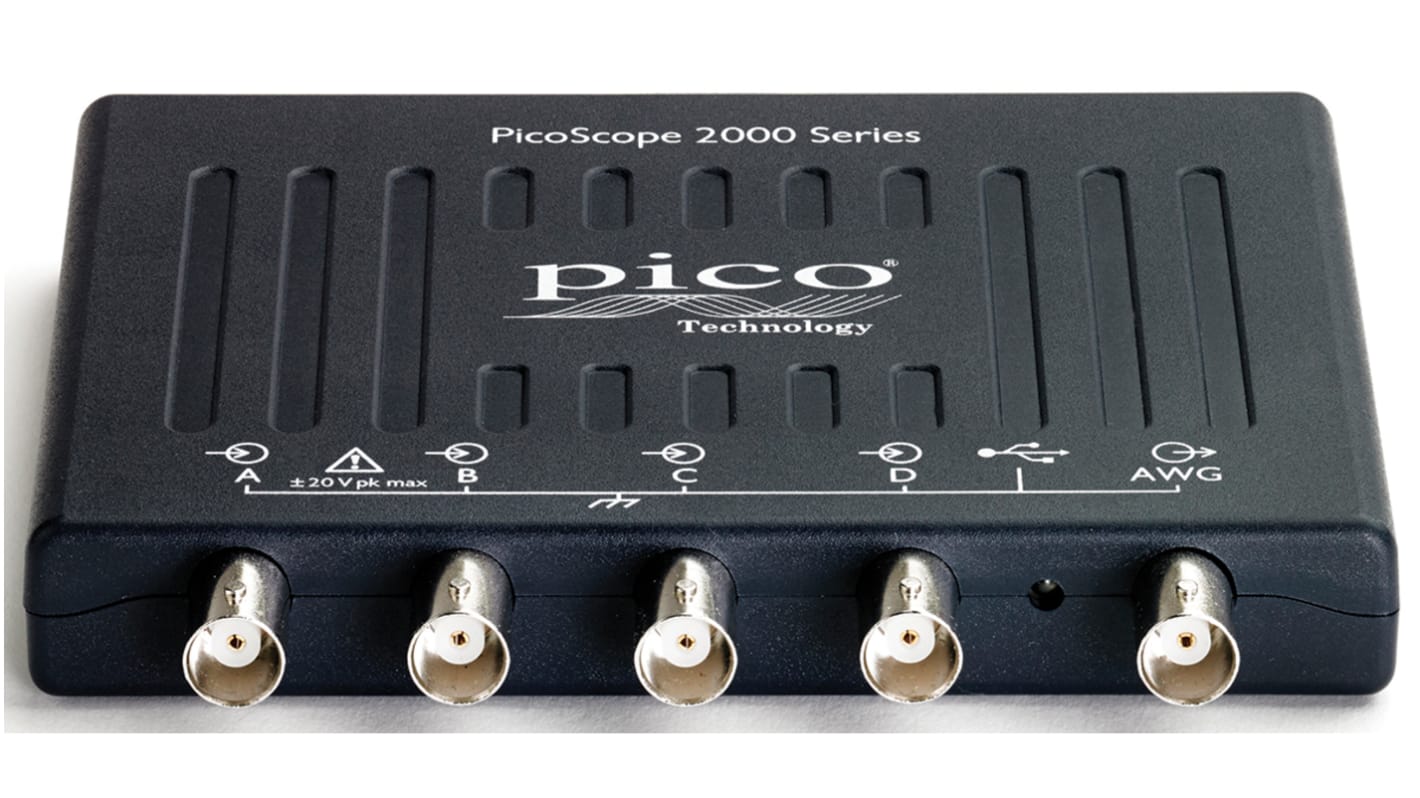

PicoScope 2000 Series, 50 MHz PC Based Oscilloscope 4-Channel
- RS 제품 번호:
- 111-6775
- Distrelec 제품 번호:
- 300-73-914
- 제조사 부품 번호:
- PicoScope 2406B
- 제조업체:
- Pico Technology
Subtotal (1 unit)*
₩1,101,460.00
재고있음
- 추가로 2026년 11월 23일 부터 21 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,101,460.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 111-6775
- Distrelec 제품 번호:
- 300-73-914
- 제조사 부품 번호:
- PicoScope 2406B
- 제조업체:
- Pico Technology
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pico Technology | |
| Product Type | Oscilloscope | |
| Bandwidth | 50MHz | |
| Number of Channels | 4 | |
| Model Number | PicoScope 2406B | |
| Oscilloscope Type | PC Based | |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB | |
| Series | PicoScope 2000 | |
| Length | 130mm | |
| Height | 18.80mm | |
| Width | 104mm | |
| Standards/Approvals | REACH, RoHS, WEEE | |
| Minimum Vertical Sensitivity | 4mV/div | |
| Minimum Time Base | 1ns/div | |
| Maximum Vertical Sensitivity | 4V/div | |
| Rise Time | 7ns | |
| Maximum Time Base | 5000s/div | |
| Power Source | USB | |
| Vertical Resolution | 8 bit | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pico Technology | ||
Product Type Oscilloscope | ||
Bandwidth 50MHz | ||
Number of Channels 4 | ||
Model Number PicoScope 2406B | ||
Oscilloscope Type PC Based | ||
Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB | ||
Series PicoScope 2000 | ||
Length 130mm | ||
Height 18.80mm | ||
Width 104mm | ||
Standards/Approvals REACH, RoHS, WEEE | ||
Minimum Vertical Sensitivity 4mV/div | ||
Minimum Time Base 1ns/div | ||
Maximum Vertical Sensitivity 4V/div | ||
Rise Time 7ns | ||
Maximum Time Base 5000s/div | ||
Power Source USB | ||
Vertical Resolution 8 bit | ||
- COO (Country of Origin):
- GB
PicoScope 2000 Series Oscilloscope, 50MHz Bandwidth, 4 Channels - PicoScope 2406B
This oscilloscope is a Compact PC-based instrument designed for signal capture and analysis via a USB connection. It provides mixed-protocol interfacing for serial buses and is intended for bench or field tasks where a portable, computer-driven scope is required. The unit operates from USB power and integrates with standard laboratory workflows to record, visualise and troubleshoot electronic signals.
Features and Benefits:
• 50MHz bandwidth delivers clear signal frequency content
• 7ns rise time captures fast edge transitions
• 8-bit vertical resolution preserves amplitude detail
• 4mV/div sensitivity allows measurement of small signals
• 1ns/div time base supports high-temporal-resolution sampling
• 7ns rise time captures fast edge transitions
• 8-bit vertical resolution preserves amplitude detail
• 4mV/div sensitivity allows measurement of small signals
• 1ns/div time base supports high-temporal-resolution sampling
Applications
• Suitable for automotive serial-bus diagnostics with CAN and LIN
• Ideal for embedded I2C and SPI protocol development
• Used for RS232 and UART signal validation during testing
• Can be used for USB‑powered portable waveform recording
• Suitable for laboratory waveform analysis on PC platforms
• Ideal for embedded I2C and SPI protocol development
• Used for RS232 and UART signal validation during testing
• Can be used for USB‑powered portable waveform recording
• Suitable for laboratory waveform analysis on PC platforms
How is the instrument powered during use?
It draws power through the USB connection so no external supply is required.
Which physical interfaces are available for device communication?
The unit provides CAN, I2C, LIN, RS232, SPI, UART and USB interfaces for direct protocol capture.
What form factor should I expect for fitting into tight workspaces?
The device has a Compact footprint measuring 130mm x 104mm x 18.8mm for constrained benches.
What resolution and timing range are available for measurements?
Vertical resolution is 8-bit and time-base settings span from 1ns/div up to 5000s/div.
