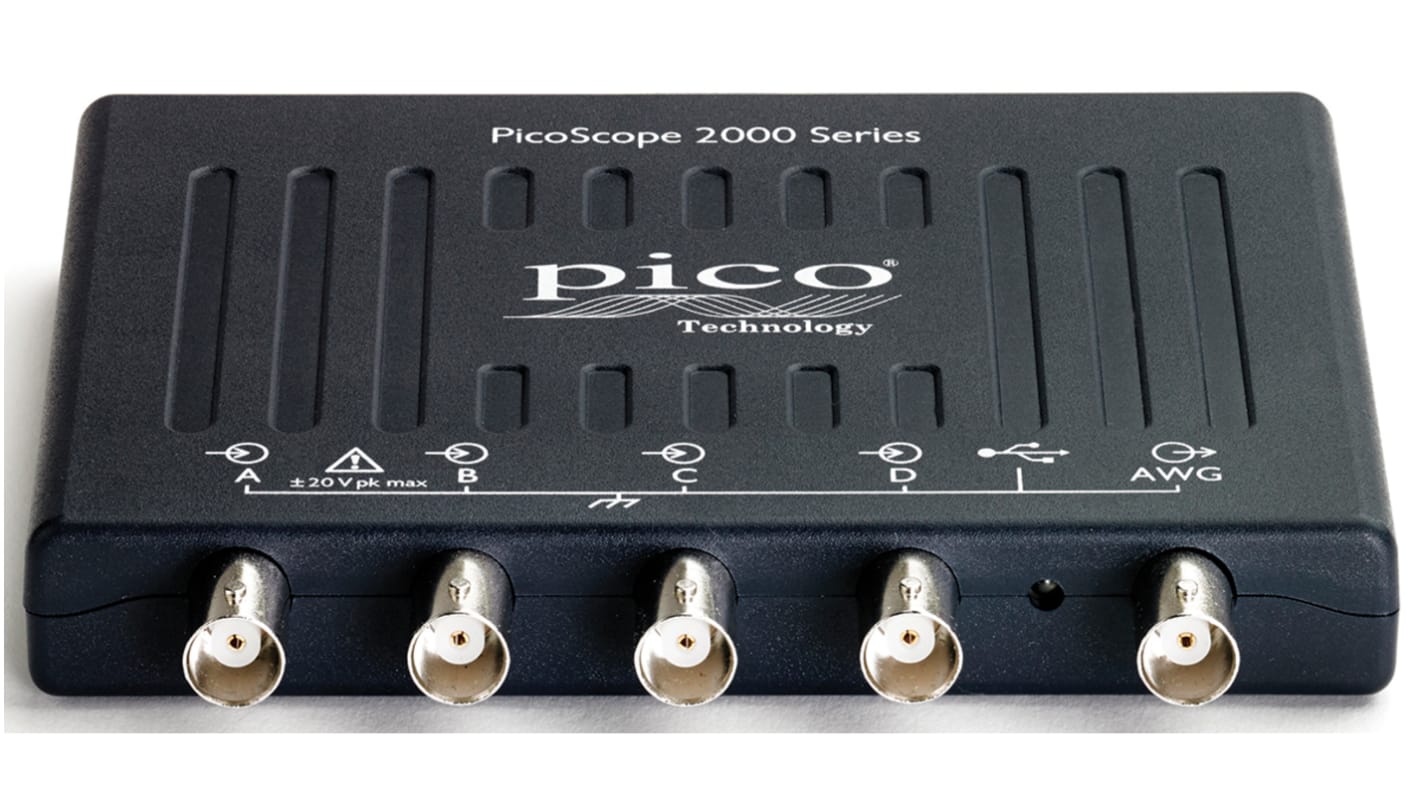

PicoScope 2000 Series, 100 MHz PC Based Oscilloscope 4-Channel
- RS 제품 번호:
- 111-6777
- Distrelec 제품 번호:
- 300-73-916
- 제조사 부품 번호:
- PicoScope 2408B
- 제조업체:
- Pico Technology
Subtotal (1 unit)*
₩2,140,640.00
재고있음
- 10 개 단위 배송 준비 완료
- 추가로 2026년 11월 25일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,140,640.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 111-6777
- Distrelec 제품 번호:
- 300-73-916
- 제조사 부품 번호:
- PicoScope 2408B
- 제조업체:
- Pico Technology
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pico Technology | |
| Product Type | Oscilloscope | |
| Bandwidth | 100MHz | |
| Number of Channels | 4 | |
| Model Number | PicoScope 2408B | |
| Oscilloscope Type | PC Based | |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB | |
| Series | PicoScope 2000 | |
| Width | 104mm | |
| Standards/Approvals | REACH, RoHS, WEEE | |
| Length | 130mm | |
| Height | 18.80mm | |
| Rise Time | 3.5ns | |
| Minimum Time Base | 1ns/div | |
| Maximum Vertical Sensitivity | 4V/div | |
| Maximum Time Base | 5000s/div | |
| Vertical Resolution | 8 bit | |
| Minimum Vertical Sensitivity | 4mV/div | |
| Power Source | USB | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pico Technology | ||
Product Type Oscilloscope | ||
Bandwidth 100MHz | ||
Number of Channels 4 | ||
Model Number PicoScope 2408B | ||
Oscilloscope Type PC Based | ||
Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB | ||
Series PicoScope 2000 | ||
Width 104mm | ||
Standards/Approvals REACH, RoHS, WEEE | ||
Length 130mm | ||
Height 18.80mm | ||
Rise Time 3.5ns | ||
Minimum Time Base 1ns/div | ||
Maximum Vertical Sensitivity 4V/div | ||
Maximum Time Base 5000s/div | ||
Vertical Resolution 8 bit | ||
Minimum Vertical Sensitivity 4mV/div | ||
Power Source USB | ||
- COO (Country of Origin):
- GB
PicoScope 2000 Series Oscilloscope, 100MHz Bandwidth, 4 Channels - PicoScope 2408B
This oscilloscope is a Compact PC-connected instrument for signal acquisition and analysis. It connects via USB to a host computer and supports serial and automotive bus protocols, enabling waveform capture and protocol inspection within software-based workflows. The device is suitable for bench and field environments where a portable, computer-integrated measurement tool is required.
Features and Benefits:
• 100MHz bandwidth delivers clear high-frequency signal capture
• 1ns/div timebase enables fine temporal resolution for transient analysis
• 8-bit vertical resolution balances dynamic range and data rate
• 4mV/div sensitivity permits detection of small-amplitude signals
• 3.5ns rise time supports measurement of fast edges
• 1ns/div timebase enables fine temporal resolution for transient analysis
• 8-bit vertical resolution balances dynamic range and data rate
• 4mV/div sensitivity permits detection of small-amplitude signals
• 3.5ns rise time supports measurement of fast edges
Applications
• Used for automotive diagnostics on CAN and LIN networks
• Suitable for embedded system debugging with SPI and I2C
• Ideal for serial link inspection using UART and RS232
• Can be used for software-based laboratory measurements and education
• Used with portable test rigs requiring USB power
• Suitable for embedded system debugging with SPI and I2C
• Ideal for serial link inspection using UART and RS232
• Can be used for software-based laboratory measurements and education
• Used with portable test rigs requiring USB power
What interfaces does the device support for mixed-signal inspection?
It provides CAN, I2C, LIN, RS232, SPI, UART and USB interfaces for protocol-level capture and decoding.
How is the instrument powered during field use?
It draws power from the USB connection, removing the need for an external PSU.
What are the instruments physical form-factor dimensions?
The unit measures 18.80 mm in height, 130 mm in length and 104 mm in width.
Which standards relate to environmental and substance controls?
It conforms to REACH, RoHS and WEEE requirements.
