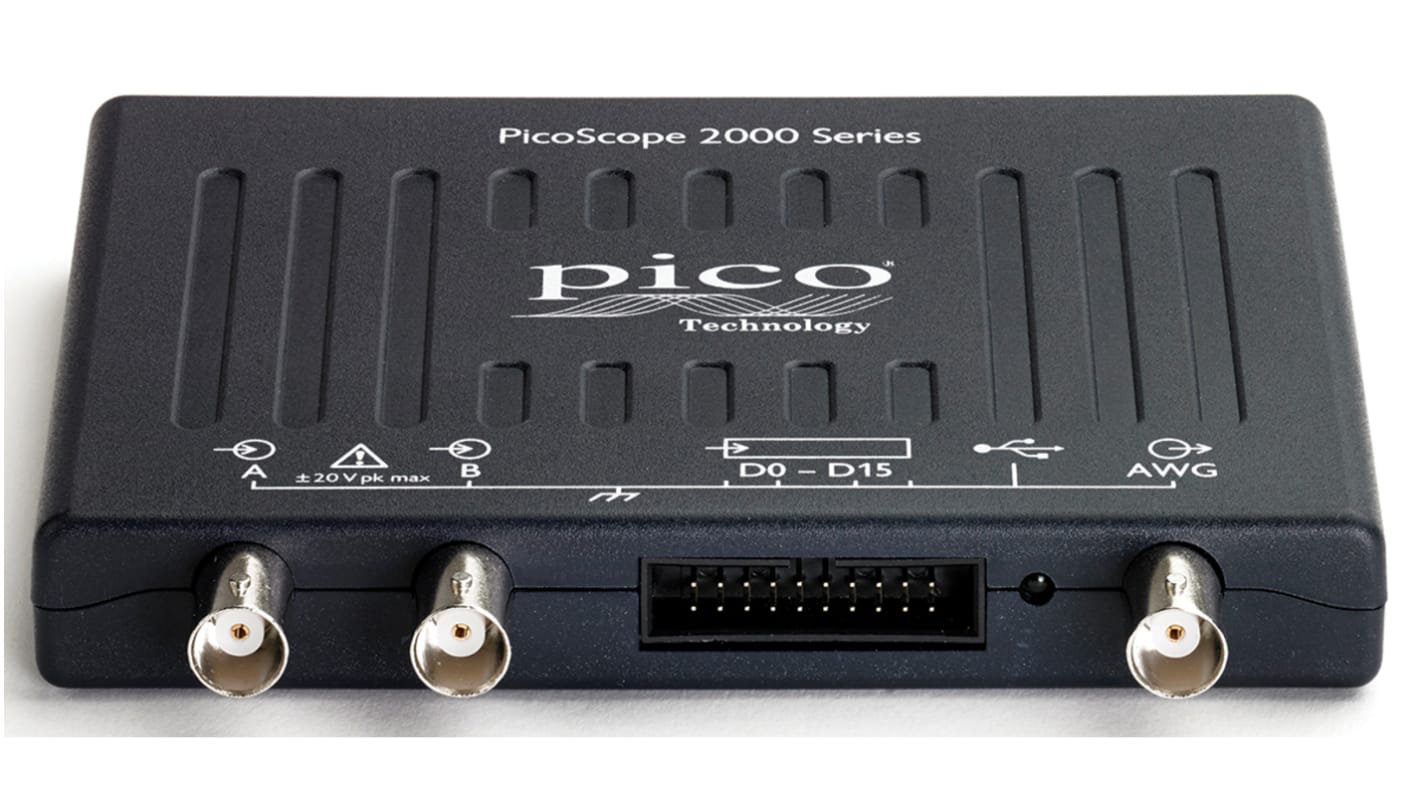

PicoScope 2205A MSO 2-channel 25 MHz PC Oscilloscope

PicoScope 2205A MSO is a 25 MHz 2-channel mixed signal oscilloscope which also functions as a 16-channel logic analyser, sampling at a maximum of 500 MS/s. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2205A MSO has a buffer memory of 48 kS and a 1 MHz AWG signal generator. Automatic measurements are available in scope mode and in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC.
The 2205A MSO offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2205A MSO takes advantage of the computing, display and communication power of an attached laptop or desktop PC.

Features and Benefits

Powerful, portable, compact
2 analog/16 digital channels
25 MHz bandwidth
Built-in arbitrary waveform generator
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Dimensions 130 x 104 x 18.8 mm
Weight <200 g
Input capacitance is 8pF
Sampling rate is 500MSa/s with 48KS buffer
Input impedance is 200Kohm

Applications

Design
Test
Education
Servicing
Monitoring
Fault finding
Repairs

Certifications

EN 61010-1:2010

Note

Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish.
Extra and/or replacement probes, cable and test clips are available separately.

Standards

EN 61010-1:2010

Supplied with

USB 2.0 cable, passive probes (x2), digital input cable, logic test clips (x20), quick start guide and software

모두 선택	제품 정보	값
	브랜드	Pico Technology
	Bandwidth	25MHz
	Number of Analogue Channels	2
	Number of Digital Channels	16
	Oscilloscope Type	PC Based
	Oscilloscope Form	Mixed Signal
	Interface	CAN, IIC, LIN, RS232, SPI, UART, USB
	Sample Rate Random	500 Msps
	Series	PicoScope 2000
	Digital/Analogue	Digital
	Maximum Vertical Sensitivity	4V/div
	Dimensions	130 x 104 x 18.8mm
	Minimum Vertical Sensitivity	4mV/div
	Weight	<200g
	Input Impedance	200 kΩ
	Input Capacitance	8 pF
	Minimum Time Base	2ns/div
	Rise Time	14ns
	Maximum Time Base	5000s/div
	Vertical Resolution	8 bit
	Power Source	USB
