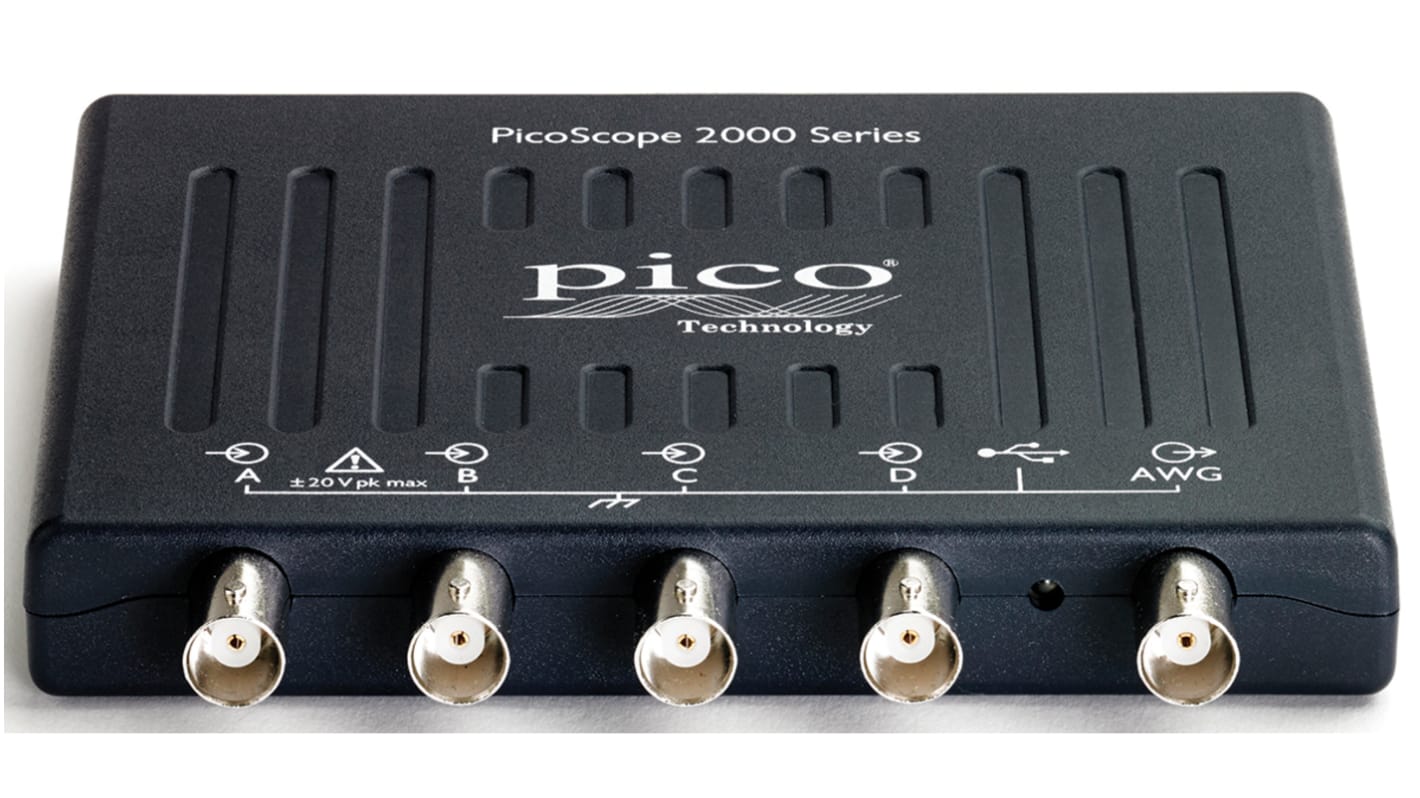

PicoScope 2000 Series, 25 MHz PC Based Oscilloscope 4-Channel
- RS 제품 번호:
- 111-6774
- Distrelec 제품 번호:
- 300-73-913
- 제조사 부품 번호:
- PicoScope 2405A
- 제조업체:
- Pico Technology
Subtotal (1 unit)*
₩959,140.00
재고있음
- 20 개 단위 배송 준비 완료
- 추가로 2026년 11월 25일 부터 14 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩959,140.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 111-6774
- Distrelec 제품 번호:
- 300-73-913
- 제조사 부품 번호:
- PicoScope 2405A
- 제조업체:
- Pico Technology
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pico Technology | |
| Product Type | Oscilloscope | |
| Bandwidth | 25MHz | |
| Number of Channels | 4 | |
| Model Number | PicoScope 2405A | |
| Oscilloscope Type | PC Based | |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB | |
| Series | PicoScope 2000 | |
| Width | 104mm | |
| Standards/Approvals | REACH, RoHS, WEEE | |
| Length | 130mm | |
| Height | 18.8mm | |
| Minimum Time Base | 2ns/div | |
| Maximum Time Base | 5000s/div | |
| Minimum Vertical Sensitivity | 4mV/div | |
| Rise Time | 14ns | |
| Vertical Resolution | 8 bit | |
| Power Source | USB | |
| Maximum Vertical Sensitivity | 4V/div | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pico Technology | ||
Product Type Oscilloscope | ||
Bandwidth 25MHz | ||
Number of Channels 4 | ||
Model Number PicoScope 2405A | ||
Oscilloscope Type PC Based | ||
Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB | ||
Series PicoScope 2000 | ||
Width 104mm | ||
Standards/Approvals REACH, RoHS, WEEE | ||
Length 130mm | ||
Height 18.8mm | ||
Minimum Time Base 2ns/div | ||
Maximum Time Base 5000s/div | ||
Minimum Vertical Sensitivity 4mV/div | ||
Rise Time 14ns | ||
Vertical Resolution 8 bit | ||
Power Source USB | ||
Maximum Vertical Sensitivity 4V/div | ||
- COO (Country of Origin):
- GB
PicoScope 2000 Series Oscilloscope, 25MHz Bandwidth, 4 Channels - PicoScope 2405A
This oscilloscope is a Compact PC-connected diagnostic instrument designed for signal capture and analysis. It operates from a USB supply and interfaces with serial and embedded buses to examine time‑domain waveforms. The device is suited to laboratory and field tasks where a small footprint and straightforward connection to a computer are required.
Features and Benefits:
• 2ns/div minimum time base enables capture of fast transient events
• 14ns rise time preserves high‑frequency edge detail
• 8‑bit vertical resolution supports general‑purpose signal fidelity
• 4mV/div minimum sensitivity reduces noise floor for small signals
• 5000s/div maximum time base allows long‑duration monitoring
• 14ns rise time preserves high‑frequency edge detail
• 8‑bit vertical resolution supports general‑purpose signal fidelity
• 4mV/div minimum sensitivity reduces noise floor for small signals
• 5000s/div maximum time base allows long‑duration monitoring
Applications
• Suitable for analysing automotive CAN and LIN networks
• Used for debugging I²C and SPI peripheral communications
• Ideal for UART and RS232 signal verification
• Can be used for long‑term signal logging via USB connection
• Used for debugging I²C and SPI peripheral communications
• Ideal for UART and RS232 signal verification
• Can be used for long‑term signal logging via USB connection
How many channels are available for simultaneous signals?
It provides four independent input channels allowing concurrent multi‑signal observation.
What standards compliance applies to materials and manufacture?
The instrument meets REACH, RoHS and WEEE requirements for restricted substances and waste handling.
What physical form factor should I expect for tight workspaces?
The unit has a Compact enclosure measuring 130mm length, 104mm width and 18.8mm height.
What interfaces are supported for embedded systems analysis?
It supports CAN, I²C, LIN, RS232, SPI, UART and USB connectivity.
