제조사부품번호

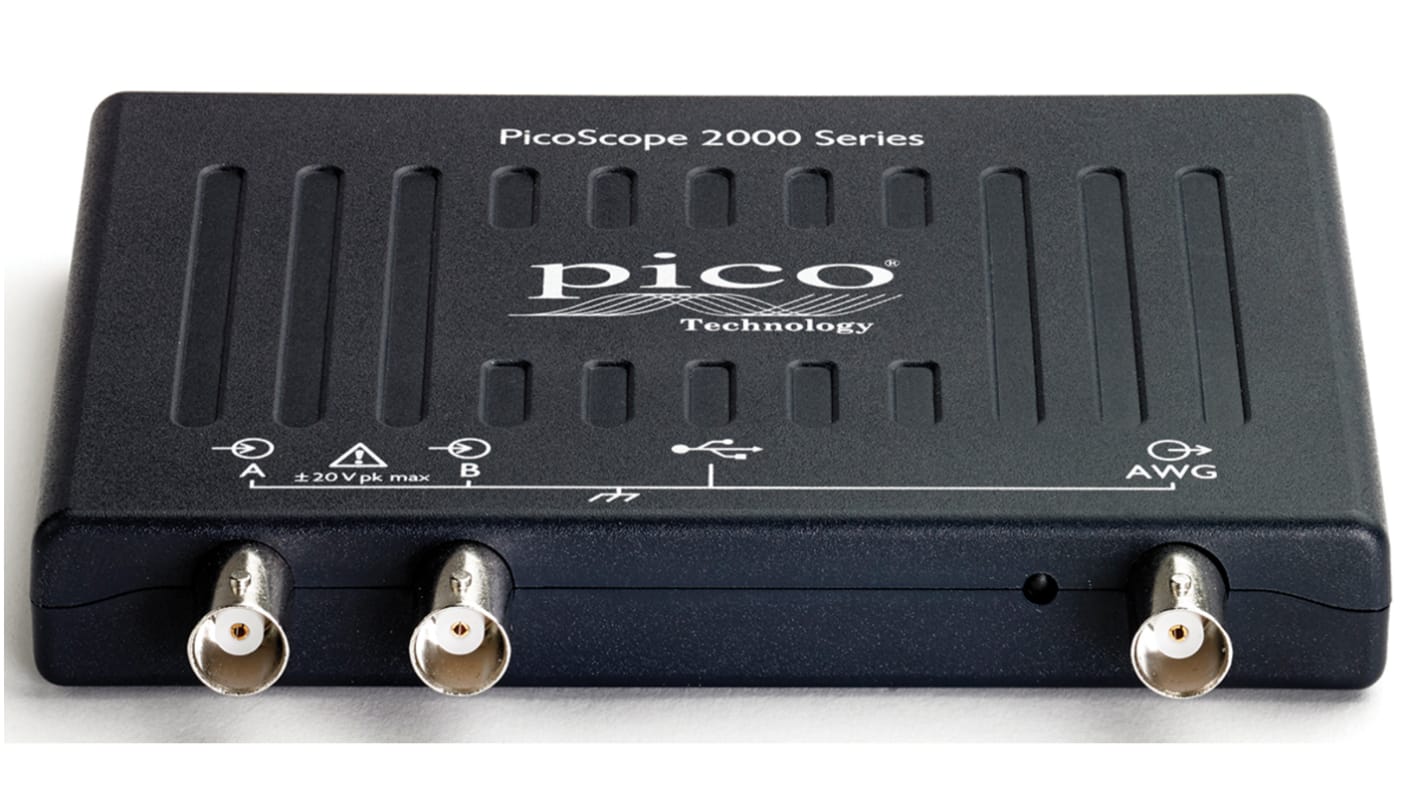

PicoScope 2000 Series, 100 MHz PC Based Oscilloscope 2-Channel

RS 제품 번호:: 111-6771
Distrelec 제품 번호:: 300-73-907
제조사 부품 번호:: PicoScope 2206B
제조업체:: Pico Technology

PicoScope 2000 Series, 100 MHz PC Based Oscilloscope 2-Channel

모든 Oscilloscopes 열람하기

Subtotal (1 unit)*

₩771,040.00

재고있음

17 개 단위 배송 준비 완료
추가로 2026년 11월 25일 부터 8 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩771,040.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 111-6771
Distrelec 제품 번호:: 300-73-907
제조사 부품 번호:: PicoScope 2206B
제조업체:: Pico Technology

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	100MHz
	Number of Channels	2
	Model Number	2206B
	Oscilloscope Type	PC Based
	Interface Type	CAN, IIC, LIN, RS232, SPI, UART, USB
	Series	PicoScope 2000
	Length	130mm
	Width	104mm
	Standards/Approvals	REACH, RoHS, WEEE
	Height	18.80mm
	Minimum Time Base	1ns/div
	Maximum Vertical Sensitivity	4V/div
	Power Source	USB
	Vertical Resolution	8 bit
	Maximum Time Base	5000s/div
	Rise Time	7ns
	Minimum Vertical Sensitivity	4mV/div

	모두 선택
	브랜드 Pico Technology
	Product Type Oscilloscope
	Bandwidth 100MHz
	Number of Channels 2
	Model Number 2206B
	Oscilloscope Type PC Based
	Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB
	Series PicoScope 2000
	Length 130mm
	Width 104mm
	Standards/Approvals REACH, RoHS, WEEE
	Height 18.80mm
	Minimum Time Base 1ns/div
	Maximum Vertical Sensitivity 4V/div
	Power Source USB
	Vertical Resolution 8 bit
	Maximum Time Base 5000s/div
	Rise Time 7ns
	Minimum Vertical Sensitivity 4mV/div

COO (Country of Origin):: GB

PicoScope 2000 Series Oscilloscope, 50MHz Bandwidth, 2 Channels - PicoScope 2206B

This oscilloscope is a Compact USB‑powered PC‑based instrument designed to capture and visualise electrical signals for testing and diagnostics. It connects to a computer via USB and supports multiple serial protocols for mixed‑signal analysis. The device offers a balance of frequency response and portability for bench and field use.

Features and Benefits:

• 50MHz bandwidth delivers clear signal reproduction for mid‑frequency work
• 2 channels enable simultaneous dual‑signal comparison
• 7ns rise time provides accurate transient edge measurement
• 8‑bit vertical resolution permits fine amplitude discrimination
• 4mV/div minimum sensitivity exposes low‑amplitude signals

Applications

• Suitable for automotive bus analysis with CAN and LIN
• Ideal for embedded debugging using I2C and SPI
• Used for serial comms troubleshooting via UART and RS232
• Can be used for portable field measurements via USB power
• Suitable for general signal capture in laboratory settings

What Interface options are available for connectivity?

It supports USB connection for PC operation and can interpret CAN, I²C, LIN, RS232, SPI and UART interfaces.

How does timebase flexibility affect measurements?

The minimum timebase of 2ns/div allows high‑speed waveform inspection while the maximum 5000s/div supports long‑duration signal monitoring.

What power arrangement is required for operation?

The unit is powered solely via USB, eliminating the need for an external mains adaptor.

What physical footprint should be expected for mounting or storage?

The instrument dimensions are Compact with a height of 18.80mm, length of 130mm and width of 104mm.
