IGBTs

IGBT (insulated-gate bipolar transistors) are semiconductors mainly used as switching devices to allow or stop power flow. They have many benefits as a result of being a cross between two of the most common transistors, Bipolar transistors and MOSFET.

What is a typical application of IGBTs?
• Electric motors
• Uninterruptible power supplies
• Solar panel installations
• Welders
• Power converters & inverters
• Inductive chargers
• Inductive cookers

How do IGBT transistors work?
IGBT transistors are three-terminal devices which apply a voltage to a semiconductor, changing its properties to block power flow when it's in the off state and allow power flow in the on state. They are controlled by a metal oxide semiconductor gate structure. IGBT transistors are widely used for switching electrical power in applications such as welding, electric cars, air conditioners, trains and uninterruptible power supplies.

What are the different types of IGBT Transistors?
There are various types of IGBT transistors and they are categorised by parameters such as maximum voltage, collector current, packaging type and switching speed. The type of IGBT transistor you choose will vary depending on the exact power level, and the applications being considered.

What is a difference between MOSFETs and IGBTs?
An IGBTs do have a much lower forward voltage drop compared to a conventional MOSFET in a higher blocking voltage rated devices. However, MOSFETs are characterised by a lower forward voltage at lower current densities due to the absence of diode Vf in the IGBT's output BJT.

...
Read more Read less

검색 필터링

총 1231개 제품 중 41번째-60번째 제품을 조회 중
한장내 검색 결과 수
제품설명 단가 Maximum Continuous Collector Current Maximum Collector Emitter Voltage Maximum Gate Emitter Voltage Maximum Power Dissipation Number of Transistors Package Type Mounting Type Channel Type Pin Count Switching Speed Transistor Configuration Length Width Height
RS 제품 번호 168-4694
제조사 부품 번호IXYP8N90C3
제조사IXYS
₩2,983.75
Each (In a Tube of 50)
수량
48 A 900 V ±20V 125 W - TO-220 Through Hole N 3 50kHz Single 10.66mm 4.83mm 16mm
RS 제품 번호 804-7606
제조사 부품 번호IXYN100N120B3H1
제조사IXYS
₩40,532.50
Each
수량
165 A 1200 V ±20V 690 W - SOT-227B Surface Mount N 4 5 → 30kHz Single 38.23mm 25.07mm 9.6mm
RS 제품 번호 495-732
제조사 부품 번호IRGP4063DPBF
제조사Infineon
₩11,502.55
Each
수량
96 A 600 V ±20V - - TO-247AC Through Hole N 3 - Single 15.9mm 5.3mm 20.3mm
RS 제품 번호 146-1728
제조사 부품 번호IXGH72N60B3
제조사IXYS
₩7,229.20
Each (In a Tube of 60)
수량
75 A 600 V ±20V 540 W - TO-247 Through Hole N 3 40kHz Single 16.26mm 5.3mm 21.46mm
RS 제품 번호 168-4760
제조사 부품 번호IXYN100N120B3H1
제조사IXYS
₩37,496.05
Each (In a Tube of 10)
수량
165 A 1200 V ±20V 690 W - SOT-227B Surface Mount N 4 5 → 30kHz Single 38.23mm 25.07mm 9.6mm

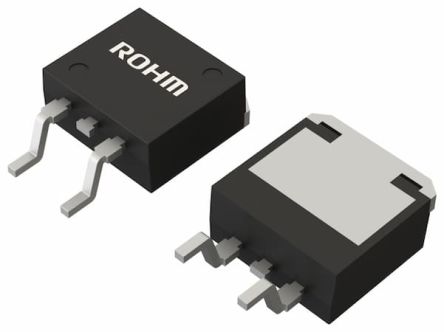

RS 제품 번호 171-5347
제조사 부품 번호RGT30NS65DGC9
제조사ROHM
₩1,639.90
Each (On a Reel of 1000)
수량
30 A 650 (Minimum) V 30V 133 W 1 TO-262 Through Hole P 3+Tab - Single 10.1mm 4.5mm 9mm
RS 제품 번호 171-5348
제조사 부품 번호RGT30TM65DGC9
제조사ROHM
₩2,856.65
Each (In a Tube of 50)
수량
14 A 650 (Minimum) V 30V 32 W 1 TO-220NFM Through Hole P 3+Tab - Single 10mm 4.5mm 15mm
RS 제품 번호 171-5349
제조사 부품 번호RGT40NS65DGC9
제조사ROHM
₩1,928.20
Each (On a Reel of 1000)
수량
40 A 650 (Minimum) V 30V 161 W 1 TO-262 Through Hole P 3+Tab - Single 10.1mm 4.5mm 9mm
RS 제품 번호 808-0234
제조사 부품 번호IXYX120N120C3
제조사IXYS
₩33,290.90
Each
수량
240 A 1200 V ±20V 1.5 kW - PLUS247 Through Hole N 3 50kHz Single 16.13mm 5.21mm 21.34mm
RS 제품 번호 808-0212
제조사 부품 번호IXA27IF1200HJ
제조사IXYS
₩9,878.15
Each
수량
43 A 1200 V ±20V 150 W - ISOPLUS247 Through Hole N 3 - Single 16.13mm 5.21mm 21.34mm
RS 제품 번호 164-6958
제조사 부품 번호STGD20N45LZAG
₩1,147.00
Each (On a Reel of 2500)
수량
25 A 475 V 16V 125 W 1 DPAK Surface Mount N 3 - Single 6.6mm 2.4mm 6.2mm
RS 제품 번호 171-5350
제조사 부품 번호RGT40TM65DGC9
제조사ROHM
₩2,759.00
Each (In a Tube of 50)
수량
17 A 650 (Minimum) V 30V 39 W 1 TO-220NFM Through Hole P 3+Tab - Single 10mm 4.5mm 15mm
RS 제품 번호 180-7749
제조사 부품 번호SIHP10N40D-E3
제조사Vishay
₩2,323.45
Each (In a Pack of 5)
수량
- - - - - - - - - - - - - -
RS 제품 번호 165-8176
제조사 부품 번호IKW25N120T2FKSA1
제조사Infineon
₩7,401.25
Each (In a Tube of 30)
수량
50 A 1200 V ±20V 349 W - TO-247 Through Hole N 3 - Single 16.13mm 5.21mm 21.1mm
RS 제품 번호 145-3473
제조사 부품 번호NGTB15N120IHWG
제조사ON Semiconductor
₩3,580.50
Each (In a Tube of 30)
수량
30 A 1200 V ±20V 278 W - TO-247 Through Hole N 3 1MHz Single 16.25mm 5.3mm 21.4mm
RS 제품 번호 165-8122
제조사 부품 번호IRG7PH35UD-EP
제조사Infineon
₩8,714.10
Each (In a Tube of 25)
수량
50 A 1200 V ±30V 180 W - TO-247AD Through Hole N 3 1MHz Single 15.87mm 5.31mm 20.7mm
RS 제품 번호 180-8845
제조사 부품 번호IRF9Z30PBF
제조사Vishay
₩2,676.85
Each (In a Pack of 5)
수량
- - - - - - - - - - - - - -
RS 제품 번호 180-8117
제조사 부품 번호SUD08P06-155L-GE3
제조사Vishay
₩1,015.25
Each (In a Pack of 20)
수량
- - - - - - - - - - - - - -
RS 제품 번호 162-3334
제조사 부품 번호IKZ75N65ES5XKSA1
제조사Infineon
₩10,597.35
Each
수량
80 A 650 V ±30V 395 W 1 TO-247 Through Hole P 4 40kHz Single 15.9mm 5.1mm 22.5mm
RS 제품 번호 180-8724
제조사 부품 번호IRFR420APBF
제조사Vishay
₩1,511.25
Each (In a Pack of 5)
수량
- - - - - - - - - - - - - -
