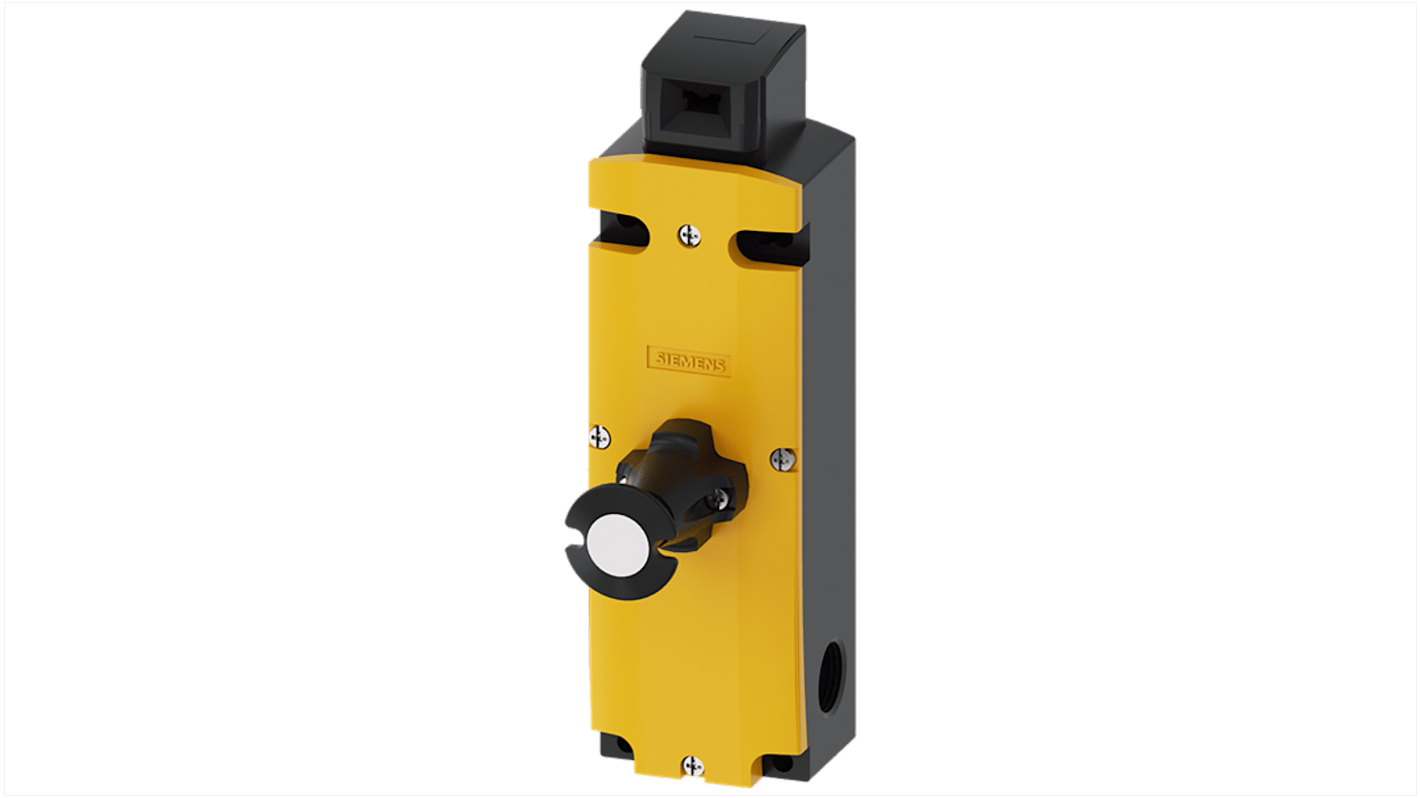

Siemens 3SE5 Series Safety Enabling Switch, 5 Position, 1 NO/2 NC, IP65, IP67
- RS 제품 번호:
- 153-204
- 제조사 부품 번호:
- 3SE5322-0SF22
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩1,377,040.00
제조사가 재고 비축중
- 2026년 10월 12일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,377,040.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 153-204
- 제조사 부품 번호:
- 3SE5322-0SF22
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Series | 3SE5 | |
| Product Type | Safety Enabling Switch | |
| Contact Configuration | 1 NO/2 NC | |
| Number of Positions | 5 | |
| IP Rating | IP65, IP67 | |
| Terminal Type | Screw | |
| Housing Material | Plastic | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 250V | |
| Maximum Operating Temperature | 60°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | CE, cULus, TUV, UKCA, CCC, EAC | |
| Depth | 43.8mm | |
| Length | 185mm | |
| Width | 54mm | |
| Mechanical Life | 1000000Cycles | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Series 3SE5 | ||
Product Type Safety Enabling Switch | ||
Contact Configuration 1 NO/2 NC | ||
Number of Positions 5 | ||
IP Rating IP65, IP67 | ||
Terminal Type Screw | ||
Housing Material Plastic | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 250V | ||
Maximum Operating Temperature 60°C | ||
Hazardous Area Certification No | ||
Standards/Approvals CE, cULus, TUV, UKCA, CCC, EAC | ||
Depth 43.8mm | ||
Length 185mm | ||
Width 54mm | ||
Mechanical Life 1000000Cycles | ||
- COO (Country of Origin):
- DE
The Siemens mechanical safety switch is designed to offer robust protection in various industrial applications. With a tumbling lock mechanism, it ensures safety in environments with multiple approaches, accommodating up to five different directions. The product is crafted from durable plastic, making it both lightweight and resilient against harsh conditions. With a high locking force and a proven mechanical service life, it effectively meets stringent safety standards, providing peace of mind in critical operations. The switch operates at a supply voltage of 115V and is suitable for demanding environments, including those with extreme temperatures. Its clever design includes a positive opening function to guarantee safety throughout its operational lifespan.
Robust plastic enclosure provides high durability
Operates safely from -25 to +60 °C temperatures
Suitable for environments requiring high locking forces
Mechanical service life up to one million cycles
Easy installation with screw fixing options
