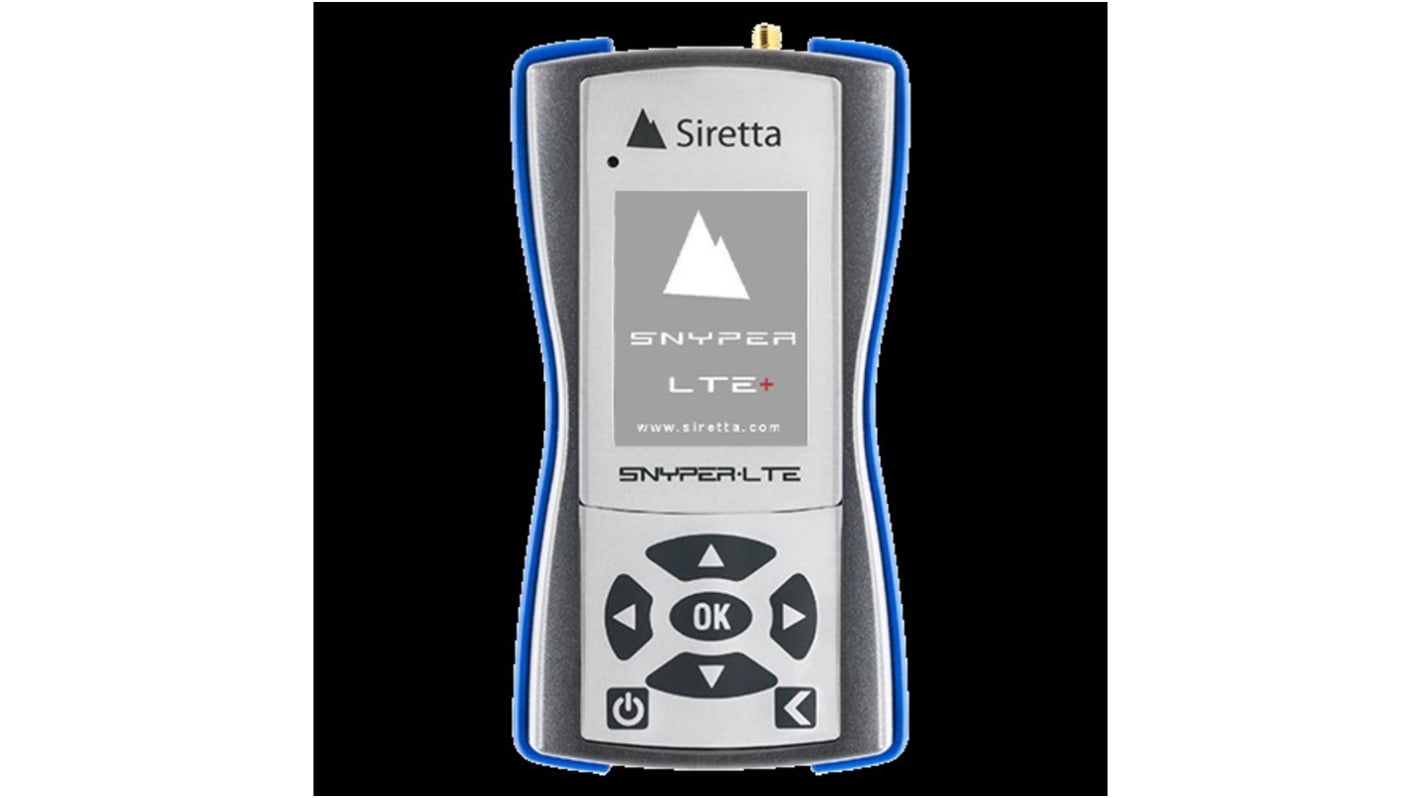

Siretta SNYPER-LTE+ (USA) V2 RF Detector 2300 MHz SIM card reader, SMA Female Cellular Antenna

RS 제품 번호:: 238-9555
제조사 부품 번호:: SNYPER-LTE+ (USA) V2
제조업체:: Siretta

Siretta SNYPER-LTE+ (USA) V2 RF Detector 2300 MHz SIM card reader, SMA Female Cellular Antenna

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

RS 제품 번호:: 238-9555
제조사 부품 번호:: SNYPER-LTE+ (USA) V2
제조업체:: Siretta

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siretta
	Product Type	RF Detector
	Maximum Frequency	2300MHz
	Minimum Frequency	700MHz
	Frequency Sensitivity	1.9 GHz
	Connector Type	SIM card reader, SMA Female Cellular Antenna
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	RoHS
	Weight	207g
	Length	141mm
	Height	36mm
	Width	76 mm

	모두 선택
	브랜드 Siretta
	Product Type RF Detector
	Maximum Frequency 2300MHz
	Minimum Frequency 700MHz
	Frequency Sensitivity 1.9 GHz
	Connector Type SIM card reader, SMA Female Cellular Antenna
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Standards/Approvals RoHS
	Weight 207g
	Length 141mm
	Height 36mm
	Width 76 mm

COO (Country of Origin):: RO

SNYPER-LTE+ (USA) V2

The SNYPER-LTE+ (USA) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE & 3G/UMTS North American networks. The SNYPER-LTE+ (USA) does not require a SIM in order to provide network survey results.

Features & Benefits

Enhanced cellular surveying of new and existing installations on 4G and 3G networks

Establish most suitable operator for application

Evaluate your “preferred” MNO’s performance

Determine optimum antenna placement

Results are reported in CSV & graphical HTML format

SIM free operation on all bands and technologies

Complete network breakdown and summary results

Additional Features

It incorporates a number of important features and can perform three types of survey: 4G/LTE only, 3G/UMTS only and a combined 4G/LTE & 3G/UMTS survey. The combined 4G/LTE & 3G/UMTS survey will provide multiple results from each network operator, in one single survey.

The powerful SNYPER summary page displays percentage thresholds to determine the most suitable mobile network operator available and the performance of a “preferred” MNO can be evaluated against the other networks.

Physical Interfaces

1 x USB 2.0 FS (12 MBits/s)

1 x SMA female cellular antenna connector

1 x Red LED charging indicator

1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT

1 x Tactile multifunction keypad

The full breakdown for the HTML summary graphs are displayed in corresponding CSV files. The SNYPER-LTE Graphyte (USA) also incorporates Siretta’s leading live SCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording.

Supplied Accessories

1 x General Purpose Omni-Directional Antenna

1 x 0.5m USB Mini Cable

1 x Multi-Region Power Supply UK / EU / US / AU

Certifications

FCC

RoHS
