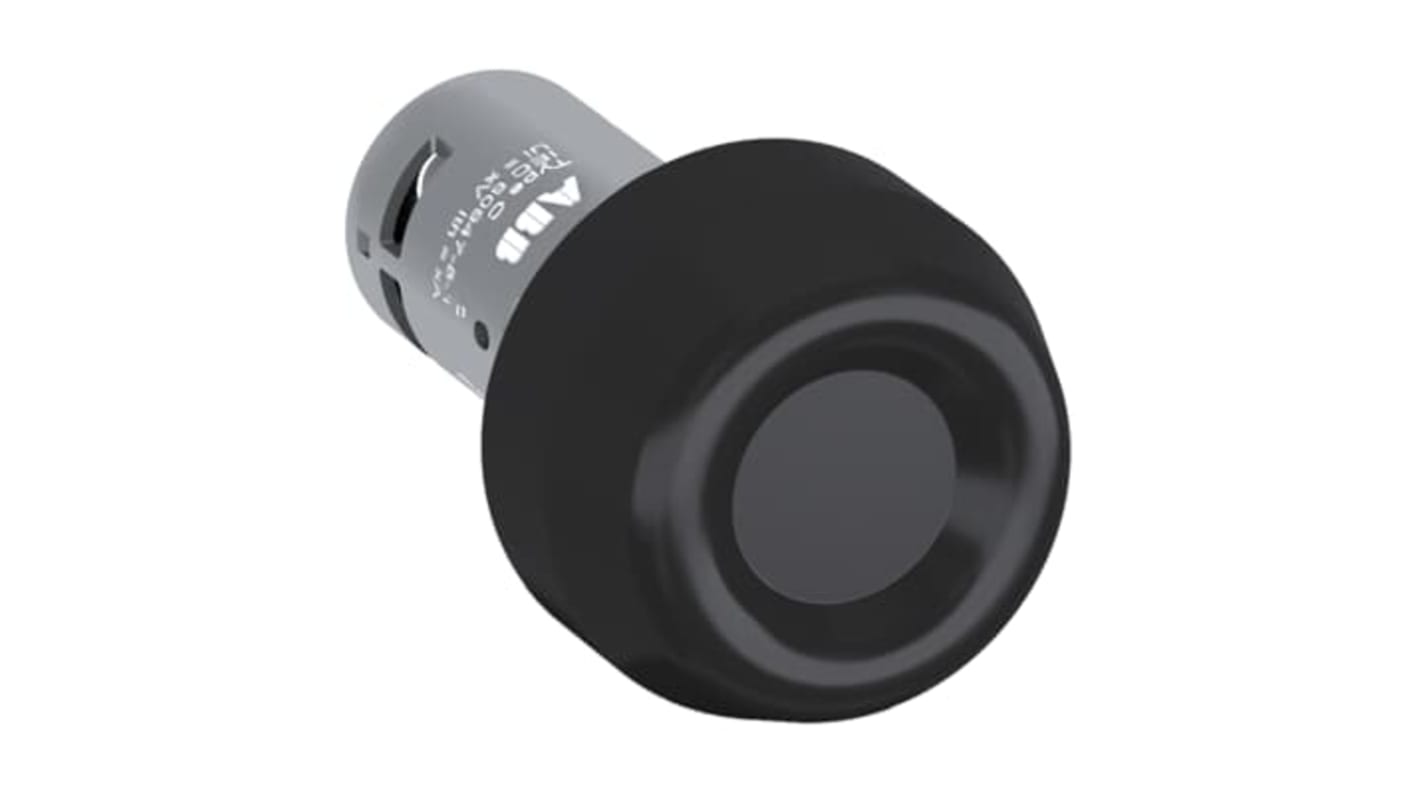

ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout 240 V ac
- RS 제품 번호:
- 835-2817
- 제조사 부품 번호:
- 1SFA619105R1056 CP6-10B-02
- 제조업체:
- ABB
Subtotal (1 unit)*
₩35,268.80
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩35,268.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 835-2817
- 제조사 부품 번호:
- 1SFA619105R1056 CP6-10B-02
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 22 mm | |
| Series | Compact | |
| Mount Type | Panel | |
| Terminal Type | Pre-Wired | |
| Contact AC Voltage | 240V ac | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Round | |
| Maximum Operating Temperature | 70°C | |
| Switch Contact Current | 5 A | |
| Standards/Approvals | IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 60073IEC/EN 60529EN 50013DIN 40050-9UL 508CSA C22.2 No 14 | |
| Width | 37 mm | |
| Height | 37mm | |
| Length | 61mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 22 mm | ||
Series Compact | ||
Mount Type Panel | ||
Terminal Type Pre-Wired | ||
Contact AC Voltage 240V ac | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Round | ||
Maximum Operating Temperature 70°C | ||
Switch Contact Current 5 A | ||
Standards/Approvals IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 60073IEC/EN 60529EN 50013DIN 40050-9UL 508CSA C22.2 No 14 | ||
Width 37 mm | ||
Height 37mm | ||
Length 61mm | ||
Heavy Duty Push Buttons
ABB Pilot devices increases its product range towards vehicles and heavy industry by introducing the 22mm Compact heavy duty push button. This robust range of push buttons offers one of the highest ratings and protection in the market. Rubber sealing reinforces the inside of the push button, providing added protection and making it suitable in areas where regular push buttons are not enough.
Available in green, black or red
ABB 22.5mm Compact Range
A comprehensive range of components for the user who wants a reliable and cost-effective solution to meet their needs.
