ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout, 1 NO/1 NC, IP20, IP66, IP67, IP69K, 125 V dc 240

RS 제품 번호:: 835-2829
제조사 부품 번호:: 1SFA619105R1072 CP6-10G-11
제조업체:: ABB

ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout, 1 NO/1 NC, IP20, IP66, IP67, IP69K, 125 V dc 240

모든 Push Button Switches 열람하기

Subtotal (1 unit)*

₩38,200.50

재고있음

추가로 2026년 6월 29일 부터 4 개 단위 배송
추가로 2026년 7월 03일 부터 20 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩38,200.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 835-2829
제조사 부품 번호:: 1SFA619105R1072 CP6-10G-11
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Switch Operation	Momentary
	Actuator Colour	Green
	Product Type	Push Button Switch
	Illuminated	No
	Series	Compact
	Panel Cutout Size	22 mm
	Mount Type	Panel
	Contact Configuration	1 NO/1 NC
	Terminal Type	Pre-Wired
	IP Rating	IP20, IP66, IP67, IP69K
	Minimum Operating Temperature	-25°C
	Contact DC Voltage	125V dc
	Contact AC Voltage	240V ac
	Actuator Style	Round
	Maximum Operating Temperature	70°C
	Length	61mm
	Switch Contact Current	2A
	Standards/Approvals	IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 60073IEC/EN 60529EN 50013DIN 40050-9UL 508CSA C22.2 No 14
	Width	37mm
	Height	37mm

	모두 선택
	브랜드 ABB
	Switch Operation Momentary
	Actuator Colour Green
	Product Type Push Button Switch
	Illuminated No
	Series Compact
	Panel Cutout Size 22 mm
	Mount Type Panel
	Contact Configuration 1 NO/1 NC
	Terminal Type Pre-Wired
	IP Rating IP20, IP66, IP67, IP69K
	Minimum Operating Temperature -25°C
	Contact DC Voltage 125V dc
	Contact AC Voltage 240V ac
	Actuator Style Round
	Maximum Operating Temperature 70°C
	Length 61mm
	Switch Contact Current 2A
	Standards/Approvals IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 60073IEC/EN 60529EN 50013DIN 40050-9UL 508CSA C22.2 No 14
	Width 37mm
	Height 37mm

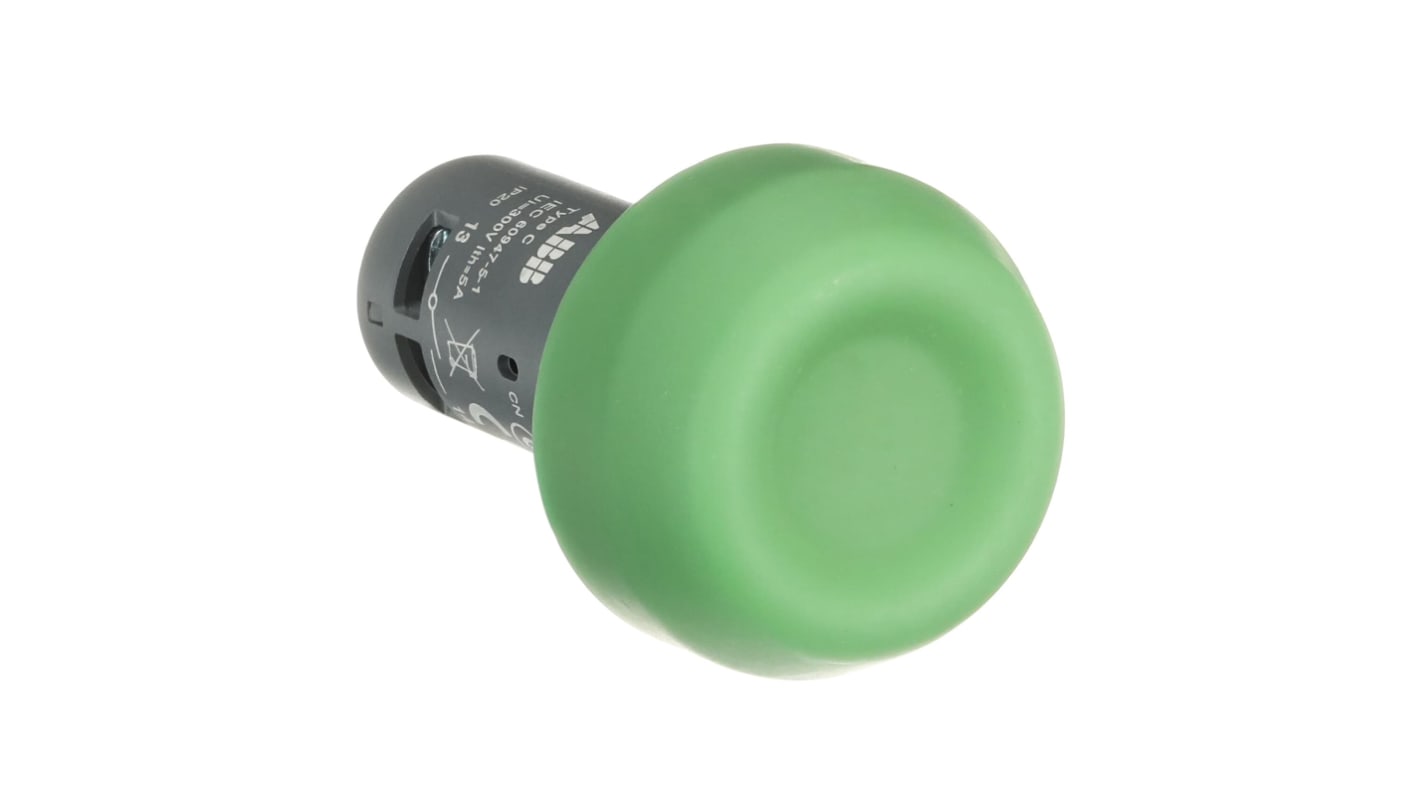

ABB Compact Series Push Button Switch, Green Actuator, 22mm Panel Cutout Size - 1SFA619105R1072 CP6-10G-11

This push button switch is a momentary control device designed for panel mounting in industrial automation and electrical installations. It provides a simple user Interface for initiating or interrupting control circuits and is suitable for environments requiring compact, panel-mounted operator controls.

Features and Benefits:

• Pre-wired terminals enable Rapid installation and reduced wiring time • Dual-contact arrangement offers one normally open and one normally closed contact • Rated for 240V AC and 125V DC to support diverse control voltages • Protected to IP20, IP66, IP67 and IP69K for washdown and harsh environments • Operates reliably between -25°C and 70°C for varied site conditions • Momentary action provides tactile control for intermittent switching tasks

Applications

• Suitable for machine start/stop control panels in automation systems • Ideal for emergency stop Interface when used within appropriate circuit designs • Used with control relays and contactors in electrical distribution panels • Can be used for operator input on test rigs and production lines • Suitable for retrofit of control desks requiring a 22mm panel cut-out

What panel aperture is required for mounting?

A 22mm panel cut-out is required for secure mounting and correct seal alignment.

What current can each contact carry in typical circuits?

Each contact is rated for switching currents up to 2A under specified conditions.

How is the switch secured to a panel during assembly?

The device is designed for panel mounting with appropriate fastening to ensure correct positioning in the cut-out.

Which Terminal connection style is provided for installers?

The unit is supplied with pre-wired terminals to simplify connection to control wiring.
