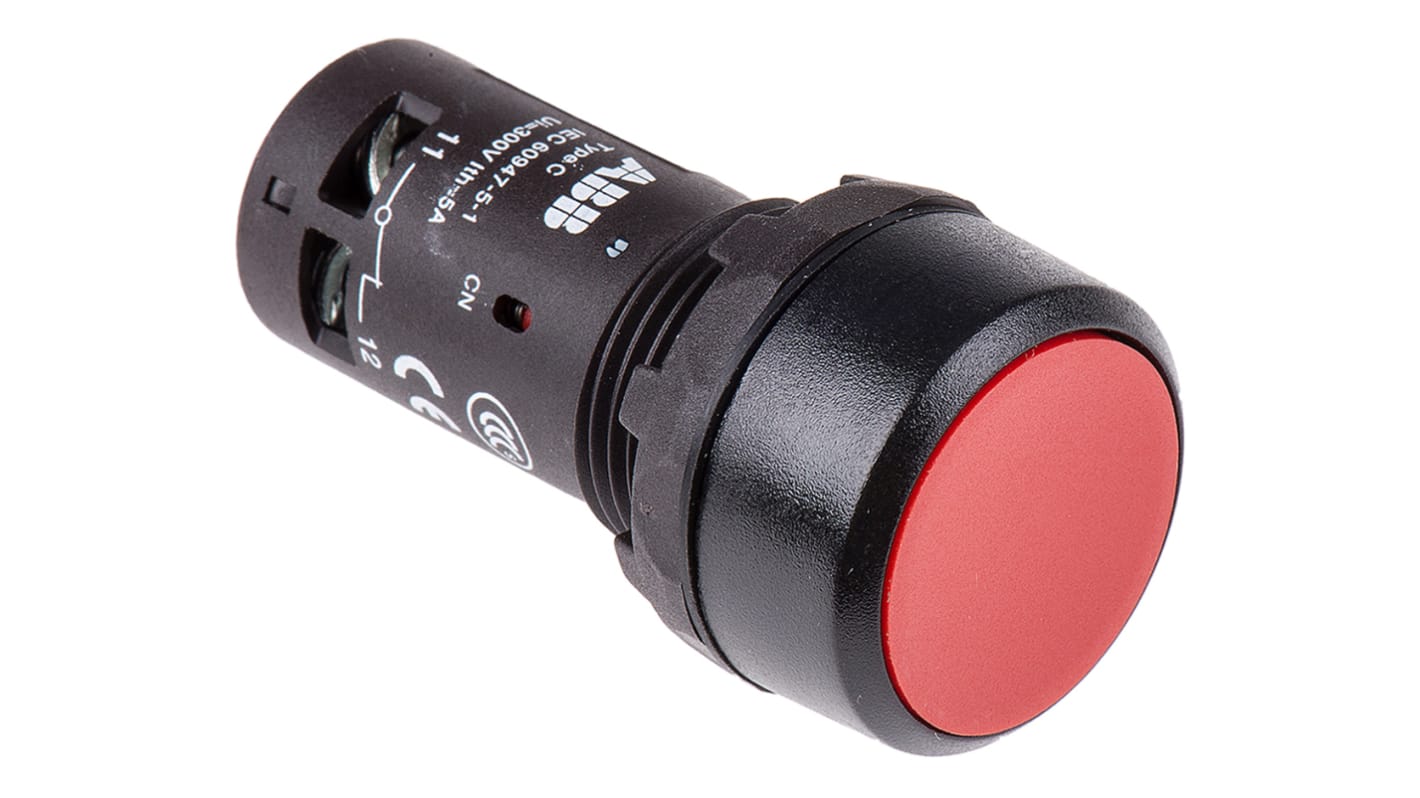

ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout, SPST, IP69K
- RS 제품 번호:
- 479-3627
- 제조사 부품 번호:
- 1SFA619100R1041 CP1-10R-01
- 제조업체:
- ABB
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩15,359.60
재고있음
- 68 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩15,359.60 |
| 6 - 11 | ₩14,758.00 |
| 12 + | ₩14,118.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 479-3627
- 제조사 부품 번호:
- 1SFA619100R1041 CP1-10R-01
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Actuator Colour | Red | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 22 mm | |
| Series | Compact | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| IP Rating | IP69K | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Switch Contact Current | 1 A | |
| Standards/Approvals | IEC 73IEC 529IEC 947-5-1EN 50 013EN 60 947-5-1EN 947-5-5UL 508CSA C22.2 No. 14 | |
| Width | 30 mm | |
| Height | 30mm | |
| Length | 55mm | |
| Legend | Blank | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Actuator Colour Red | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 22 mm | ||
Series Compact | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
IP Rating IP69K | ||
Actuator Style Round | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Switch Contact Current 1 A | ||
Standards/Approvals IEC 73IEC 529IEC 947-5-1EN 50 013EN 60 947-5-1EN 947-5-5UL 508CSA C22.2 No. 14 | ||
Width 30 mm | ||
Height 30mm | ||
Length 55mm | ||
Legend Blank | ||
제외
- COO (Country of Origin):
- CN
ABB Push Button, 300V Rated Insulation Voltage, 1A Rated Operational Current - Compact Series - 1SFA619100R1041
Want to activate different bits of your system in a jiffy? Add this red push button from ABB to your control panel. As a momentary 1NC unit, it's ideal for user-supervised machines that are switched on and off frequently. It fits in a standard cutout with a diameter of 22mm, so you won't have to drill a new hole to install it. The flush design prevents accidental actuation from someone brushing up against it. Thanks to its maximum power loss of 2.5W, this is an energy-efficient option.
Features & Benefits
• Screw terminals for speedy wiring with a Pozidrive 2 screwdriver
• IP69K rating indicates it's dust-tight and waterproof to suit demanding indoor and outdoor environments
• Handles environments thanks to a broad operating temperature range of -25°C to +70°C
Applications
• Manufacturing industry
• Packaging facilities
• Processing equipment
• Control systems
How much use can this push button withstand?
The component can be used up to 500,000 times without wearing down, making it a long-lasting and reliable option for your control panel.
Does this button come in other colours?
If you want to colour code your system, you can pick from green (479-3576), blue (479-3598) or yellow (479-3655) options. A grey option (479-3560) is also available.
