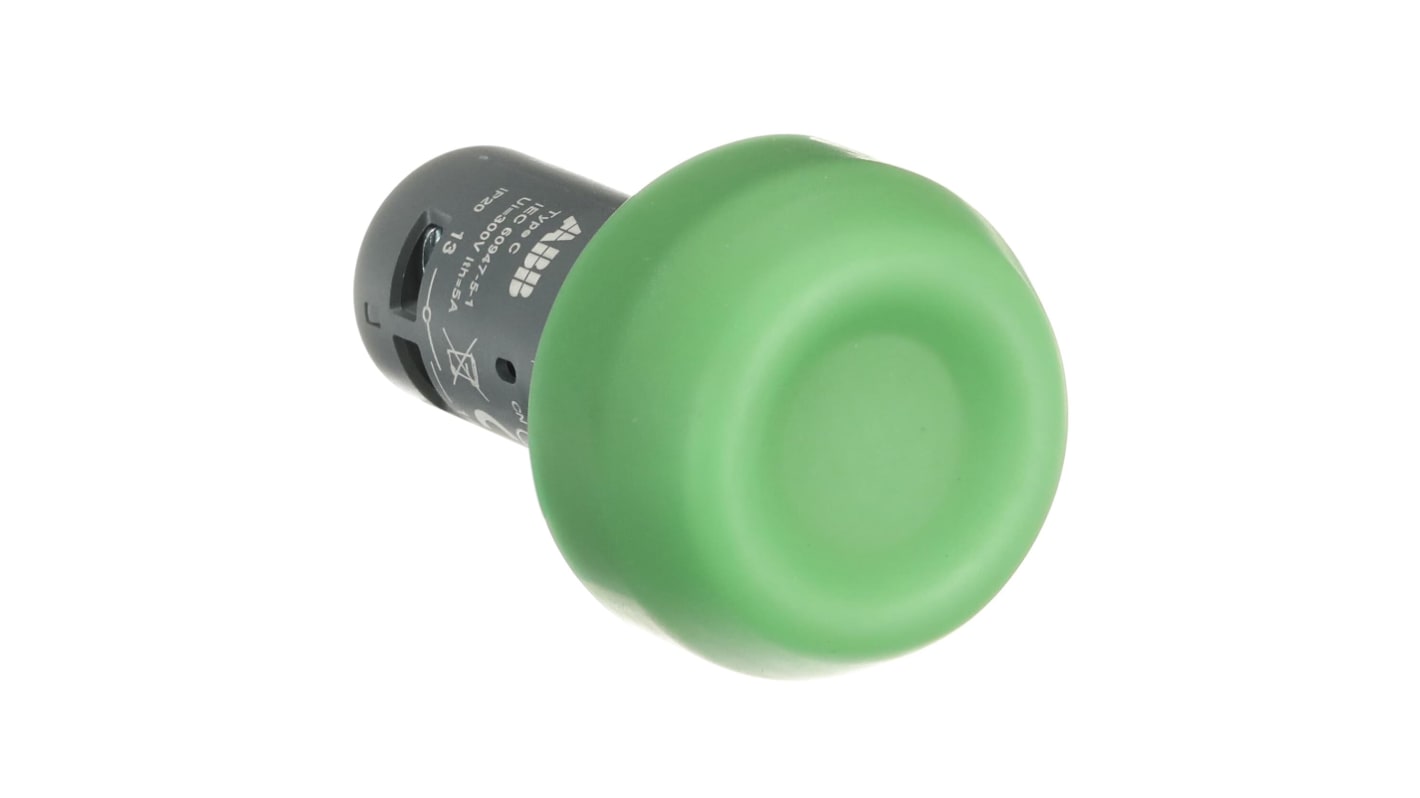

ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout, 2 NO/2 NC, IP20, IP66, IP67, IP69K, 125 V 240 V

RS 제품 번호:: 835-2807
제조사 부품 번호:: 1SFA619105R1022 CP6-10G-20
제조업체:: ABB

ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout, 2 NO/2 NC, IP20, IP66, IP67, IP69K, 125 V 240 V

모든 Push Button Switches 열람하기

Subtotal (1 unit)*

₩26,344.50

재고있음

추가로 2026년 6월 29일 부터 11 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩26,344.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 835-2807
제조사 부품 번호:: 1SFA619105R1022 CP6-10G-20
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Actuator Colour	Green
	Switch Operation	Momentary
	Product Type	Push Button Switch
	Illuminated	No
	Series	Compact
	Panel Cutout Size	22 mm
	Mount Type	Panel
	Contact Configuration	2 NO/2 NC
	Terminal Type	Pre-Wired
	IP Rating	IP20, IP66, IP67, IP69K
	Minimum Operating Temperature	-25°C
	Contact AC Voltage	240V ac
	Actuator Style	Round
	Contact DC Voltage	125V
	Maximum Operating Temperature	70°C
	Width	37mm
	Height	37mm
	Switch Contact Current	2A
	Length	61mm
	Standards/Approvals	IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 60073IEC/EN 60529EN 50013DIN 40050-9UL 508CSA C22.2 No 14

	모두 선택
	브랜드 ABB
	Actuator Colour Green
	Switch Operation Momentary
	Product Type Push Button Switch
	Illuminated No
	Series Compact
	Panel Cutout Size 22 mm
	Mount Type Panel
	Contact Configuration 2 NO/2 NC
	Terminal Type Pre-Wired
	IP Rating IP20, IP66, IP67, IP69K
	Minimum Operating Temperature -25°C
	Contact AC Voltage 240V ac
	Actuator Style Round
	Contact DC Voltage 125V
	Maximum Operating Temperature 70°C
	Width 37mm
	Height 37mm
	Switch Contact Current 2A
	Length 61mm
	Standards/Approvals IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 60073IEC/EN 60529EN 50013DIN 40050-9UL 508CSA C22.2 No 14

ABB Compact Series Push Button Switch, Green Actuator, 22mm Panel Cutout Size - 1SFA619105R1022 CP6-10G-20

This push-button switch is a panel-mounted control designed for momentary operator input in industrial control systems. It provides a round green actuator for clear Visual identification and is intended for use where short-duration switching is required on control panels in automated and electrical environments.

Features and Benefits:

• 2NO2NC contact arrangement supports multiple circuit functions • Pre-wired terminals reduce installation time and wiring errors • Rated for 240V AC operation to handle common control voltages • 125V DC contact capability enables DC control circuit use • IP20 to IP69K protection levels allow deployment in harsh environments • Momentary operation prevents sustained actuation during faults

Applications

• Suitable for machine start/stop control in automation cabinets • Ideal for operator panels on assembly-line equipment • Used with motor control centres for short control pulses • Can be used for emergency reset or acknowledgement switches • Suitable for outdoor control enclosures requiring wash-down resistance

What Terminal arrangement simplifies wiring in confined panels?

The unit is supplied with pre-wired connections to speed installation and reduce the space taken by Terminal blocks.

How does the contact rating affect signal interfacing?

The contacts carry up to 2A, allowing direct switching of low-power control circuits without additional relays in many cases.

What environmental conditions can it withstand?

It operates between -25°C and 70°C and meets ingress protection up to IP69K for high-pressure, high-temperature wash-downs.

What form factor suits limited cutout options?

The switch is designed for a 22mm panel cut-out to fit standard control panel apertures.
