ABB Compact Series Push Button Switch, Momentary, Panel, 22 mm Cutout, 1 NO/1 NC, IP20, IP66, IP67, IP69K, 125 V 240 V
- RS 제품 번호:
- 835-2823
- 제조사 부품 번호:
- 1SFA619105R1076 CP6-10B-11
- 제조업체:
- ABB
Subtotal (1 unit)*
₩37,520.00
재고있음
- 추가로 2026년 7월 20일 부터 8 개 단위 배송
- 추가로 2026년 7월 31일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩37,520.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 835-2823
- 제조사 부품 번호:
- 1SFA619105R1076 CP6-10B-11
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cutout Size | 22 mm | |
| Series | Compact | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO/1 NC | |
| Terminal Type | Pre-Wired | |
| IP Rating | IP20, IP66, IP67, IP69K | |
| Minimum Operating Temperature | -25°C | |
| Contact DC Voltage | 125V | |
| Actuator Style | Round | |
| Contact AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | NC/NO | |
| Switch Contact Current | 2A | |
| Standards/Approvals | IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 60073IEC/EN 60529EN 50013DIN 40050-9UL 508CSA C22.2 No 14 | |
| Length | 61mm | |
| Height | 37mm | |
| Width | 37mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cutout Size 22 mm | ||
Series Compact | ||
Mount Type Panel | ||
Contact Configuration 1 NO/1 NC | ||
Terminal Type Pre-Wired | ||
IP Rating IP20, IP66, IP67, IP69K | ||
Minimum Operating Temperature -25°C | ||
Contact DC Voltage 125V | ||
Actuator Style Round | ||
Contact AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration NC/NO | ||
Switch Contact Current 2A | ||
Standards/Approvals IEC/EN 60947-1IEC/EN 60947-5-1IEC/EN 60073IEC/EN 60529EN 50013DIN 40050-9UL 508CSA C22.2 No 14 | ||
Length 61mm | ||
Height 37mm | ||
Width 37mm | ||

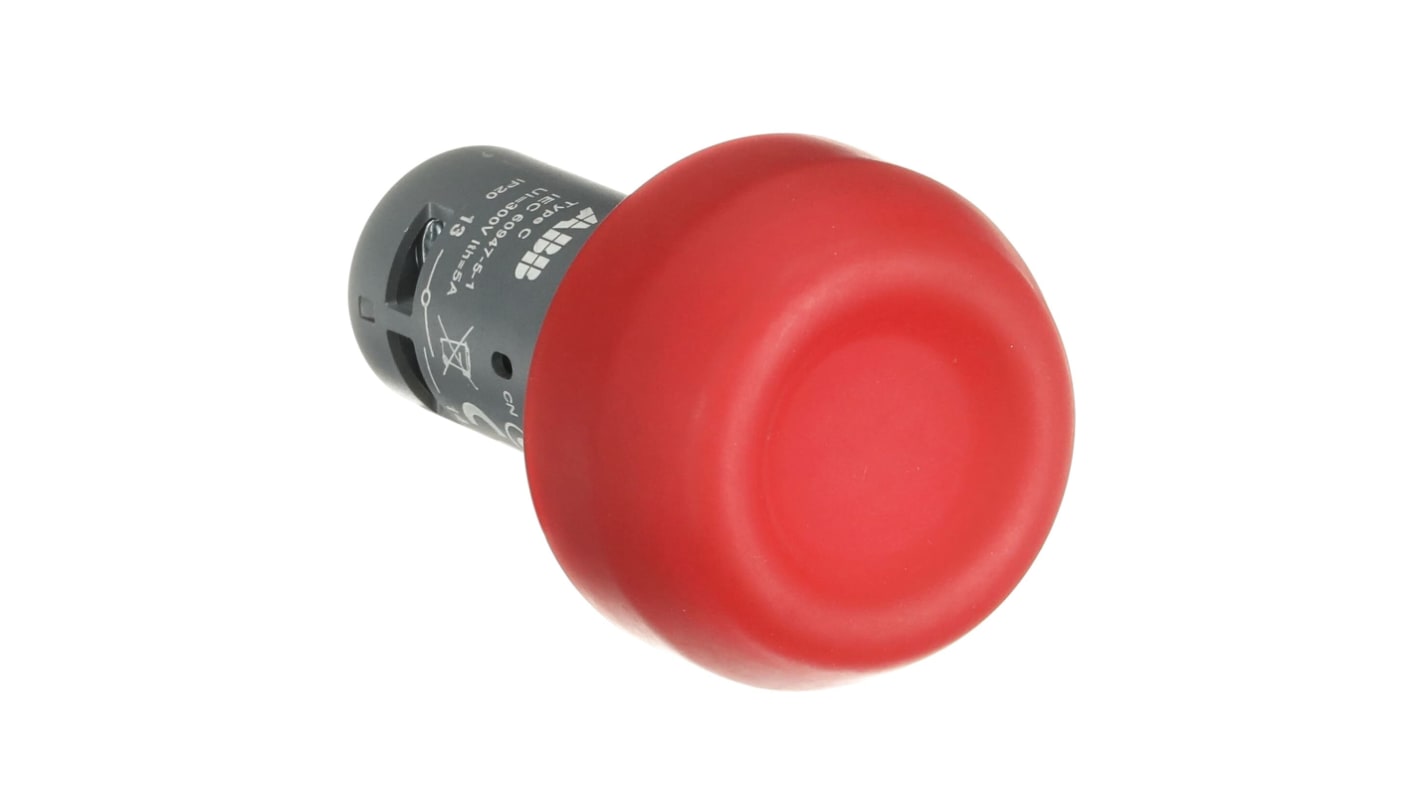

Heavy Duty Push Buttons
ABB Pilot devices increases its product range towards vehicles and heavy industry by introducing the 22mm Compact heavy duty push button. This robust range of push buttons offers one of the highest ratings and protection in the market. Rubber sealing reinforces the inside of the push button, providing added protection and making it suitable in areas where regular push buttons are not enough.
Available in green, black or red
ABB 22.5mm Compact Range
A comprehensive range of components for the user who wants a reliable and cost-effective solution to meet their needs.
