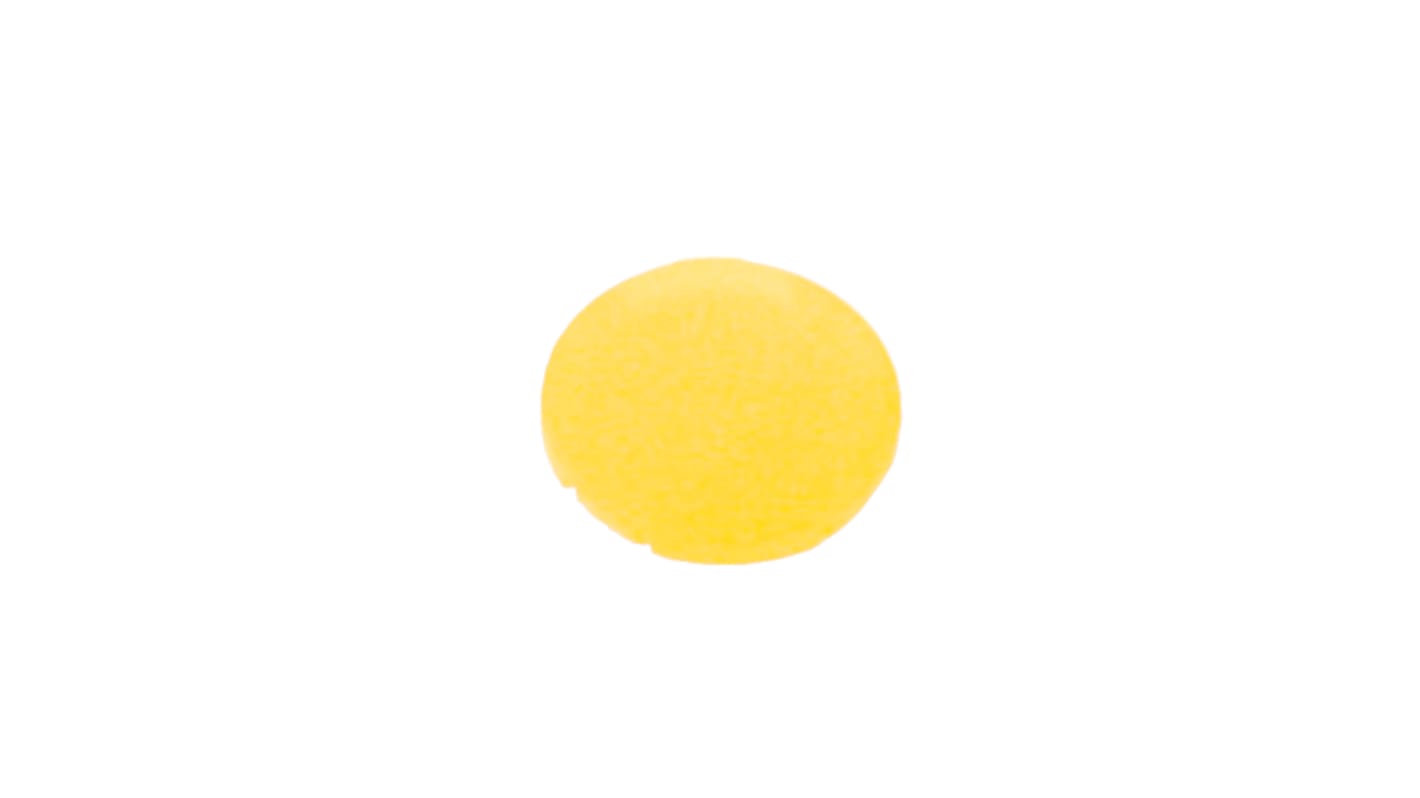

Eaton Yellow Round Push Button Lens for Use with M30C-FDL-X, M22(S)-DRL-X, M30C-FDRL-X, M22(S)-DL-X, M22S-DGL-X

모든 Push Button Lenses 열람하기

Subtotal (1 pack of 10 units)*

₩27,720.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 80 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
10 +₩2,772.00₩27,720.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
229-9400
제조사 부품 번호:
216444 M22-XDL-Y
제조업체:
Eaton
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Eaton

Product Type

Push Button Lens

For Use With

M30C-FDL-X, M22(S)-DRL-X, M30C-FDRL-X, M22(S)-DL-X, M22S-DGL-X

Lens Colour

Yellow

Lens Shape

Round

Width

24mm

Standards/Approvals

No

Height

3mm

Diameter

22.2mm

Length

24mm

COO (Country of Origin):
DE

Eaton Push Button Lens, 22.2mm Diameter, Yellow Lens - 216444 M22-XDL-Y


This push button lens is a round yellow indicator element designed for use in industrial control assemblies. It provides a visible actuator cover that fits with multiple Eaton push button housings, offering a bright signalling surface suitable for panel-mounted control and indicator duties in automation and electrical installations.

Features and Benefits:


• Compatible with a range of Eaton housings for quick replacement • 24mm by 24mm footprint for straightforward panel integration • 3mm height for low-profile Visual indication • Round shape for uniform light distribution across the lens • Yellow colour for clear status signalling in control panels

Applications


• Suitable for replacing worn or damaged indicator covers on industrial push buttons • Used with M30C-FDL-X style housings in control cabinets • Ideal for retrofit upgrades on M22-button operator arrays • Can be used for Visual signalling on machinery control panels

Will this lens fit smaller-diameter operators?


The lens is intended for panel operators that accept a 22.2mm nominal cut-out size and mates with compatible housings rather than smaller bespoke operators.

How does the lens affect illumination from LEDs or bulbs beneath it?


The round yellow material provides colour filtration and disperses light evenly, improving the recognisability of status without altering the light source mounting.

Can the lens be used across different Eaton operator families?


It is designed to be compatible with multiple Eaton operator types that accept this lens form, allowing cross-family spares management.

What should be checked during replacement installation?


Verify the receiving operator accepts a 22.2mm lens and that the lens seats flush within the 24mm external envelope for correct panel alignment.

Note

Eaton formerly known as Moeller
