제조사부품번호

Eaton M30C-FDRL-G-X1 Series Green Maintained Push Button Actuator, 30.5 mm Cutout, IP69, IP67, IP66

RS 제품 번호:: 274-1131
제조사 부품 번호:: 182932 M30C-FDRL-G-X1
제조업체:: Eaton

Eaton M30C-FDRL-G-X1 Series Green Maintained Push Button Actuator, 30.5 mm Cutout, IP69, IP67, IP66

Subtotal (1 unit)*

₩57,020.00

제조사가 재고 비축중

2026년 11월 16일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩57,020.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 274-1131
제조사 부품 번호:: 182932 M30C-FDRL-G-X1
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Push Button Actuator
	Series	M30C-FDRL-G-X1
	Cutout Diameter	30.5mm
	Push Button Colour	Green
	Push Button Shape	Round
	Push Button Actuation	Maintained
	Push Button Style	Flat
	IP Rating	IP69, IP67, IP66
	Push Button Marking	Inscribed
	Push Button Diameter	30.5mm
	Standards/Approvals	IEC/EN 60947, VDE 0660
	Hazardous Area Certification	No

	모두 선택
	브랜드 Eaton
	Product Type Push Button Actuator
	Series M30C-FDRL-G-X1
	Cutout Diameter 30.5mm
	Push Button Colour Green
	Push Button Shape Round
	Push Button Actuation Maintained
	Push Button Style Flat
	IP Rating IP69, IP67, IP66
	Push Button Marking Inscribed
	Push Button Diameter 30.5mm
	Standards/Approvals IEC/EN 60947, VDE 0660
	Hazardous Area Certification No

COO (Country of Origin):: DE

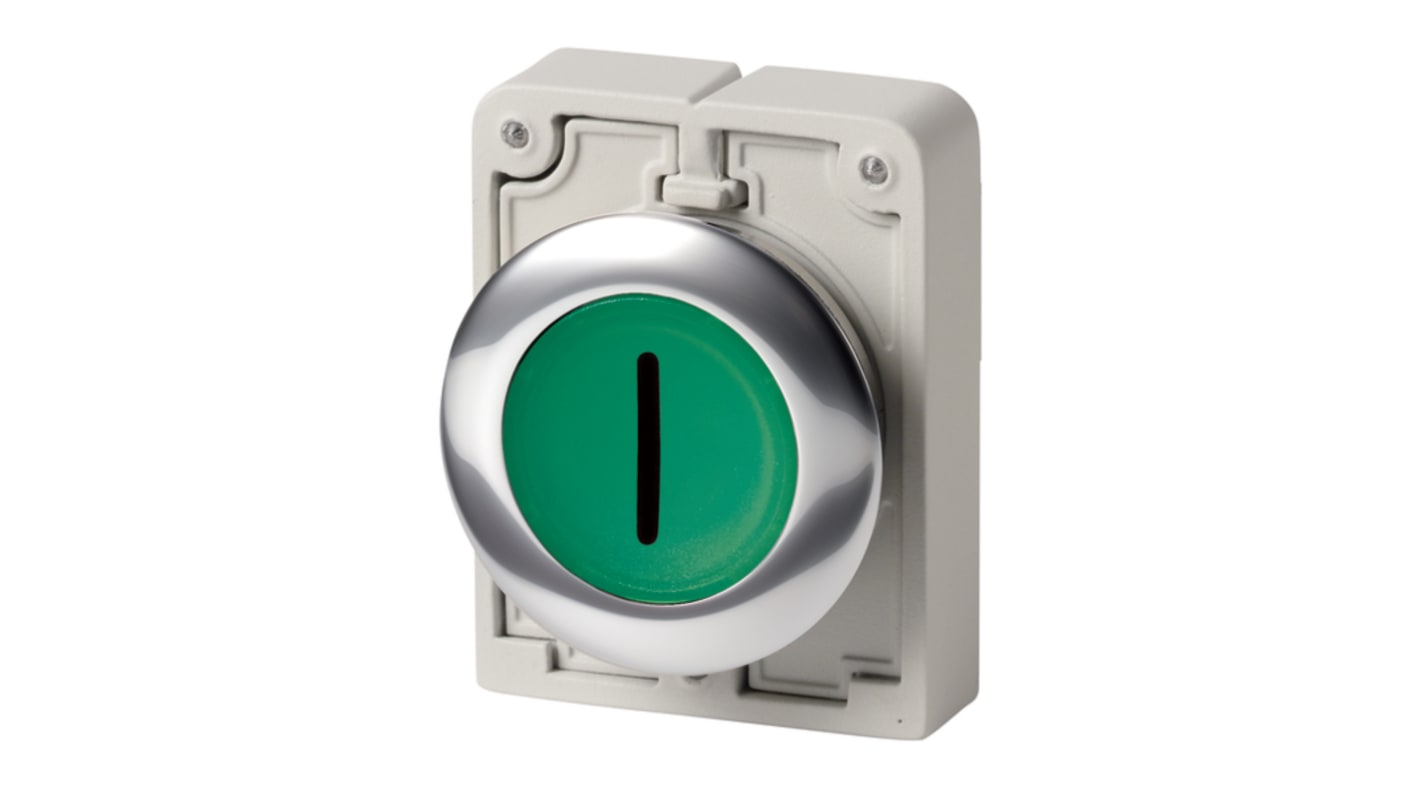

Eaton Push Button Actuator, 30.5mm Cutout Diameter, Green - 182932 M30C-FDRL-G-X1

This push-button actuator is an illuminated, maintained operator designed for control panels in industrial environments, offering a round, flat front for clear indication and manual switching. It is built for use where a labelled, inscribed green actuator is required and connects to smartwire-DT for integrated control. The bezel is metal with a titanium finish and the device supports both stay-put and spring-return modes selectable on the unit.

Features and Benefits:

• IP69, IP67, and IP66 protection for washdown and dust resistance
• 1800 operations/h rating for frequent switching cycles
• 5N actuating force for consistent tactile performance
• Ambient range -25°C to 70°C for varied site conditions
• Mechanical lifespan 1,000,000 operations for long duty life
• Front-side protection to IP67/IP69K for severe environments

Applications

• Suitable for control panels requiring a 30.5 mm cut-out push-button
• Used with SWD-RMQ connections for networked control systems
• Ideal for wet-process machinery needing heavy-duty waterproof push-button

What markings are provided on the operator for identification?

The actuator is inscribed on the front element to indicate function.

How is the unit mounted and orientated within panels?

It is designed for panel mounting and can be installed in any position as required.

What materials are used for the visible bezel and lens?

The bezel is metal with a titanium-colour finish and the lens is a round flat element.

How does the device handle shock and mechanical stress?

It meets sinusoidal shock requirements with 15g pulses and specified IEC mechanical shock tests.

Is the actuator suitable for illuminated indication and wiring integration?

Yes, it is configured for illumination and includes connections compatible with smartwire-DT.
