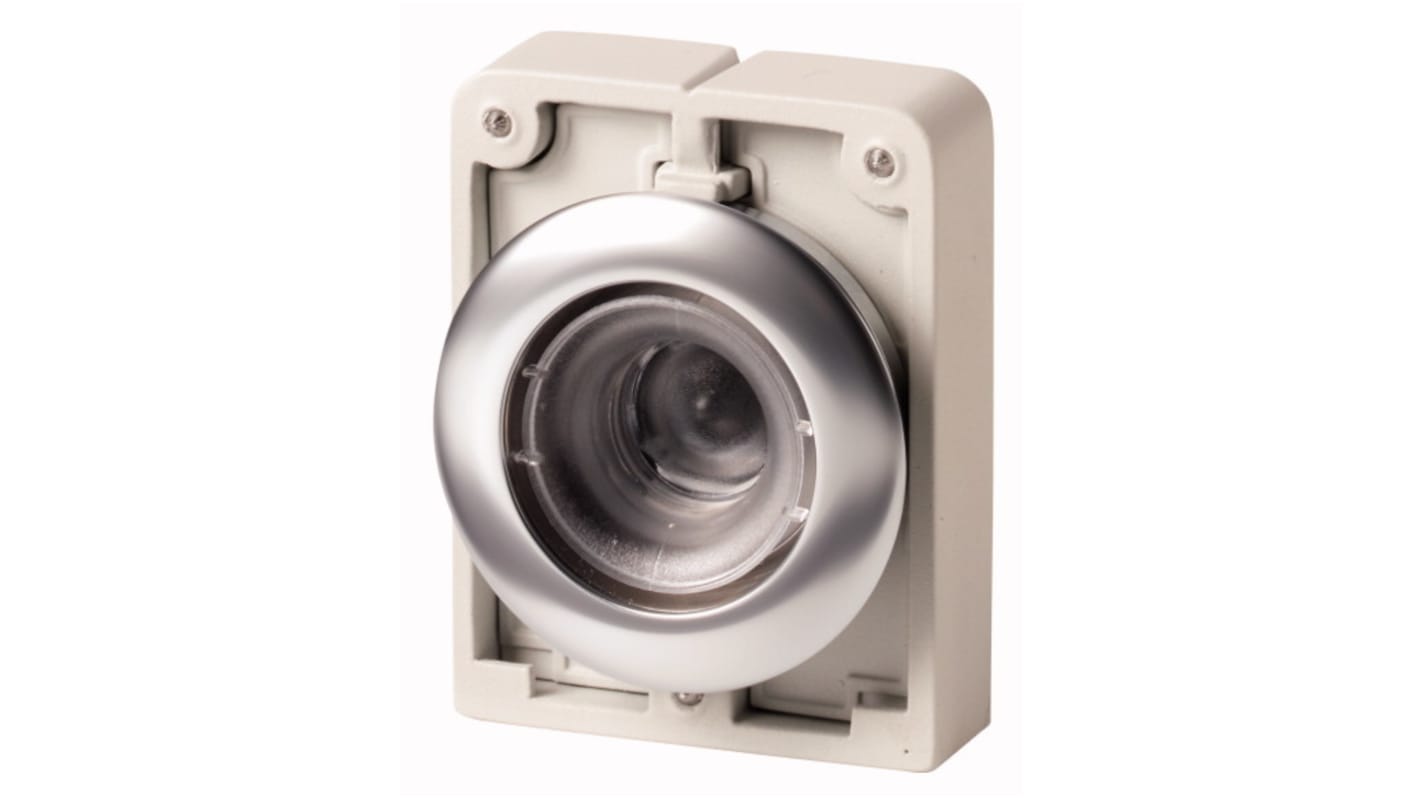

Eaton M30I-FDL-X Series Momentary Spring Return Push Button Actuator, 30.5 mm Cutout, IP69, IP66, IP67
- RS 제품 번호:
- 273-6456
- 제조사 부품 번호:
- 188064 M30I-FDL-X
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩48,380.00
재고있음
- 7 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩48,380.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 273-6456
- 제조사 부품 번호:
- 188064 M30I-FDL-X
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Push Button Actuator | |
| Series | M30I-FDL-X | |
| Cutout Diameter | 30.5mm | |
| Push Button Shape | Round | |
| Push Button Actuation | Momentary Spring Return | |
| Push Button Style | Flat | |
| IP Rating | IP69, IP66, IP67 | |
| Push Button Marking | Blank | |
| Push Button Diameter | 30.5mm | |
| Standards/Approvals | IEC/EN 60947, VDE 0660 | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Push Button Actuator | ||
Series M30I-FDL-X | ||
Cutout Diameter 30.5mm | ||
Push Button Shape Round | ||
Push Button Actuation Momentary Spring Return | ||
Push Button Style Flat | ||
IP Rating IP69, IP66, IP67 | ||
Push Button Marking Blank | ||
Push Button Diameter 30.5mm | ||
Standards/Approvals IEC/EN 60947, VDE 0660 | ||
Hazardous Area Certification No | ||
비준수
- COO (Country of Origin):
- DE
Eaton Push Button Actuator, IP66, IP67 and IP69, 30.5 Cutout Diameter - 188064 M30I-FDL-X
This push-button actuator is an illuminated, flat-front M30 device designed for industrial control panels where a momentary spring-return input is required. It is suitable for environments demanding frequent operation and enhanced protection, and it integrates with smartwire‑DT connections for system-level signalling. The bezel is stainless metal and the actuator supports a blank‑marked round lens configuration.
Features and Benefits:
• Rated for IP69 environmental resistance for high‑pressure cleaning
• Operates at ambient temperatures from -25°C to 70°C
• Mechanical life of 5,000,000 operations for long duty cycles
• Actuation requires 5N for consistent tactile response
• Shock tolerance of 15g to withstand mechanical impacts
• Operates at ambient temperatures from -25°C to 70°C
• Mechanical life of 5,000,000 operations for long duty cycles
• Actuation requires 5N for consistent tactile response
• Shock tolerance of 15g to withstand mechanical impacts
Applications
• Suitable for washdown production‑line control stations
• Ideal for integration with smartwire‑DT automation networks
• Used with operator consoles requiring momentary push inputs
• Ideal for integration with smartwire‑DT automation networks
• Used with operator consoles requiring momentary push inputs
What mounting cut‑out is required for installation?
The device fits a 30.5 mm round cut‑out and secures via a front ring.
How often can the actuator be operated per hour?
The actuator is rated for 3,600 operations per hour to support high‑cycle applications.
What materials are used for the bezel and front element?
The bezel is stainless metal and the front element is a flat round lens.
Which standards does the device comply with for electrical control applications?
It meets IEC/EN 60947 and VDE 0660 standards as part of its approvals.
