SMC EX250 series Pneumatic Logic Controller

RS 제품 번호:: 426-820
제조사 부품 번호:: EX250-SDN1
제조업체:: SMC

SMC EX250 series Pneumatic Logic Controller

모든 Pneumatic Logic Controllers 열람하기

Subtotal (1 unit)*

₩909,538.50

제조사가 재고 비축중

2026년 5월 25일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩909,538.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 426-820
제조사 부품 번호:: EX250-SDN1
제조업체:: SMC

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SMC
	Product Type	Pneumatic Logic Controller
	Series	EX250
	Number of Inputs	32
	Voltage	24V
	Display Type	LED Indicator
	Hazardous Area Certification	NO
	Number of Outputs	32
	Minimum Operating Temperature	+5°C
	Maximum Operating Temperature	+45°C
	Width	63mm
	Standards/Approvals	UL (CSA), RoHS, CE
	Height	75.1mm
	Depth	59.8mm
	Connection Type	Swivel Heavy Series with O-Ring 45° Elbow
	Output Type	PNP
	Suitable Medias	Air

	모두 선택
	브랜드 SMC
	Product Type Pneumatic Logic Controller
	Series EX250
	Number of Inputs 32
	Voltage 24V
	Display Type LED Indicator
	Hazardous Area Certification NO
	Number of Outputs 32
	Minimum Operating Temperature +5°C
	Maximum Operating Temperature +45°C
	Width 63mm
	Standards/Approvals UL (CSA), RoHS, CE
	Height 75.1mm
	Depth 59.8mm
	Connection Type Swivel Heavy Series with O-Ring 45° Elbow
	Output Type PNP
	Suitable Medias Air

COO (Country of Origin):: JP

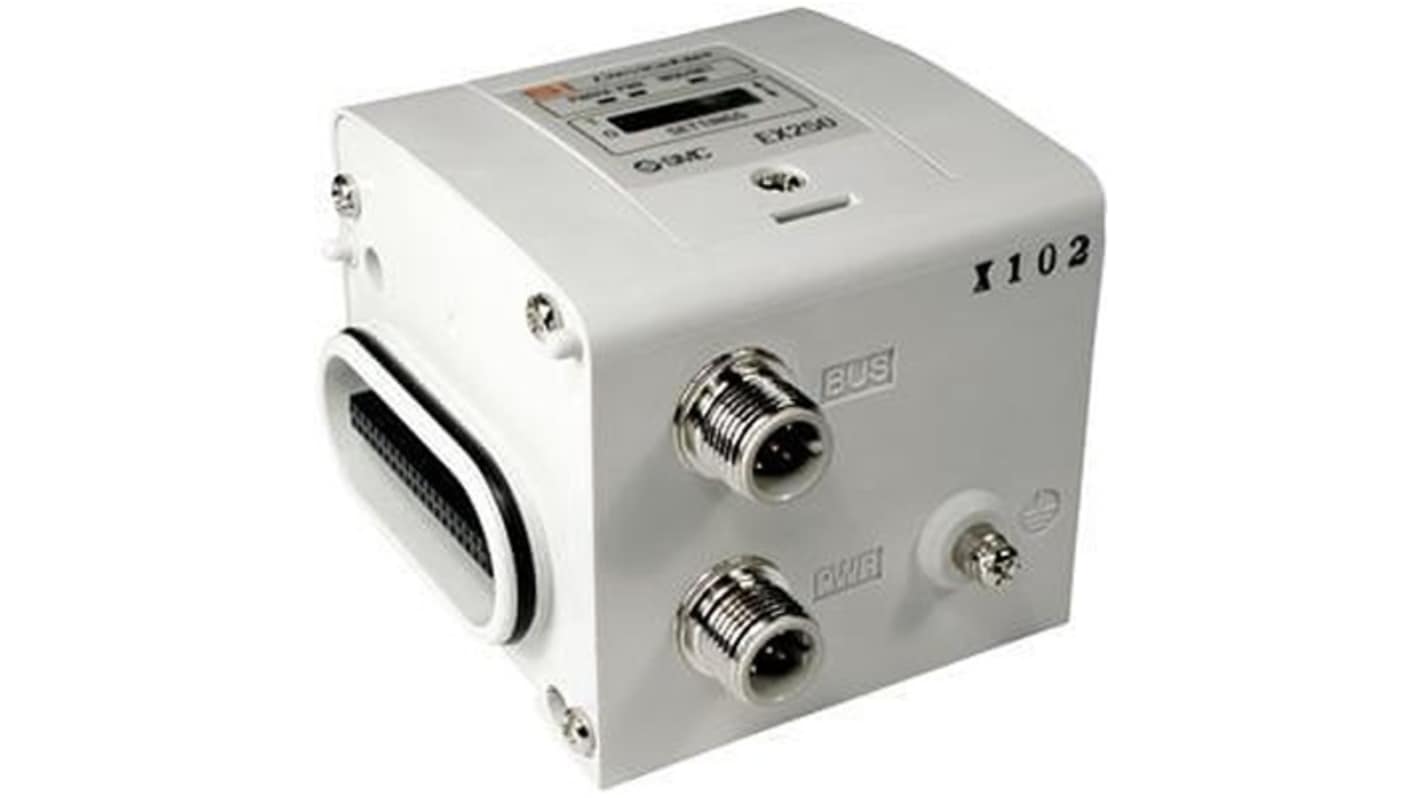

SMC EX250 Series Pneumatic Logic Controller, 32 Inputs, 32 Outputs - EX250-SDN1

This pneumatic logic controller provides decentralised, field-bus ready I/O control for air-based automation systems. Designed for panel or DIN-rail mounting, it links sensors and valve manifolds to common industrial networks while displaying status via an LED indicator. The unit operates from a 24V supply and suits applications requiring compact, high-density control of pneumatic outputs in ambient temperatures up to +45°C.

Features & Benefits

• 32 inputs and 32 outputs for high-density I/O control
• PNP outputs to simplify interfacing with sourcing devices
• Swivel heavy-series O-ring 45° elbow for secure connections
• LED indicator for clear real-time status feedback
• Separate common power supply option to isolate valve loads
• Compatible with Air as the controlled medium for valve actuation

Applications

• Suitable for distributed valve manifold control in factory automation
• Ideal for PLC integration over DeviceNet and other field buses
• Used with VQ/SV manifolds to drive solenoid valves on demand
• Can be used for machine I/O consolidation where DIN-rail mounting is required

What operating temperature range can I expect in typical use?

The controller is specified to operate up to +45°C and is intended for normal industrial ambient conditions without condensation.

How does the unit handle network and valve power connections?

It accepts a 24V control supply and includes separate power supply connector options to allow independent powering of valve loads and control electronics.

Are there protections for vibration and electrical isolation?

The design meets industrial vibration and impact resistance norms and provides insulation between external terminals and chassis as specified for industrial I/O modules.

What connector types and mounting are supported?

The unit uses M12-style connectors for communication and power, supports DIN-rail mounting, and offers swivel heavy-series elbow fittings for pneumatic ports.
