SMC EX600 series 0.7 Mpa Pneumatic Logic Controller

RS 제품 번호:: 426-838
제조사 부품 번호:: EX600-SDN1A
제조업체:: SMC

SMC EX600 series 0.7 Mpa Pneumatic Logic Controller

모든 Pneumatic Logic Controllers 열람하기

Subtotal (1 unit)*

₩812,331.00

제조사가 재고 비축중

2026년 5월 26일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩812,331.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 426-838
제조사 부품 번호:: EX600-SDN1A
제조업체:: SMC

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SMC
	Product Type	Pneumatic Logic Controller
	Series	EX600
	Number of Inputs	16
	Minimum Operating Pressure	0MPa
	Voltage	24V
	Display Type	LCD Backlight
	Hazardous Area Certification	NO
	Number of Outputs	32
	Maximum Operating Pressure	0.7 Mpa
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+50°C
	Depth	67.9mm
	Width	106mm
	Standards/Approvals	CE, CSA, UL
	Height	65.9mm
	Connection Type	5-Pin M12 Socket
	Output Type	NPN/PNP
	Suitable Medias	Air

	모두 선택
	브랜드 SMC
	Product Type Pneumatic Logic Controller
	Series EX600
	Number of Inputs 16
	Minimum Operating Pressure 0MPa
	Voltage 24V
	Display Type LCD Backlight
	Hazardous Area Certification NO
	Number of Outputs 32
	Maximum Operating Pressure 0.7 Mpa
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +50°C
	Depth 67.9mm
	Width 106mm
	Standards/Approvals CE, CSA, UL
	Height 65.9mm
	Connection Type 5-Pin M12 Socket
	Output Type NPN/PNP
	Suitable Medias Air

COO (Country of Origin):: JP

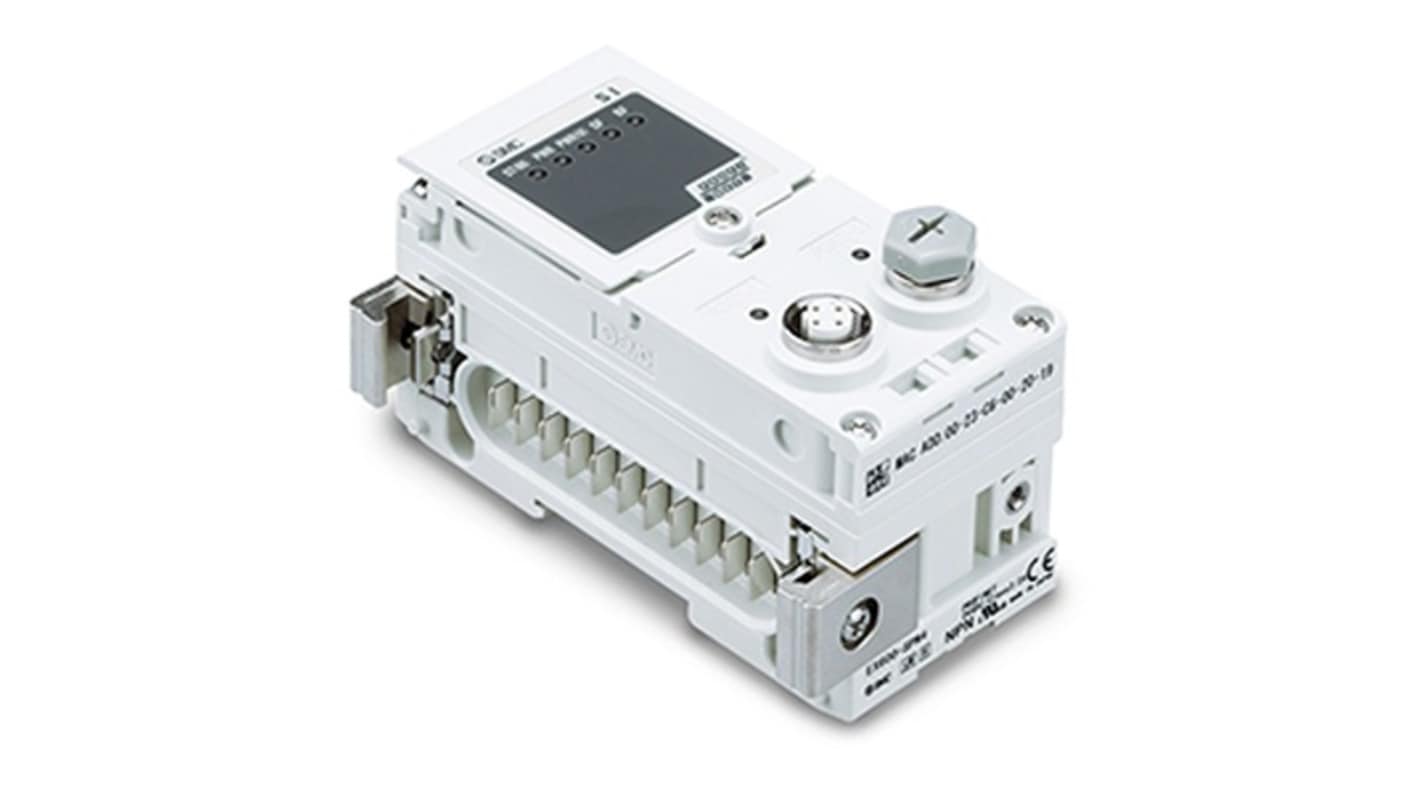

SMC EX600 Series Pneumatic Logic Controller, 16 Inputs, 32 Outputs - EX600-SDN1A

This pneumatic logic controller provides compact, programmable control for industrial Air systems. Designed for panel or inline installation, it manages discrete pneumatic signalling and control tasks while offering clear status indication via an illuminated display. Suited to automation, electrical and mechanical environments, it integrates with standard 24V control infrastructure and supports mixed sensor/actuator interfacing.

Features & Benefits

• 16 inputs enabling extensive sensor integration
• 32 outputs for broad actuator control capacity
• NPN/PNP output configuration allowing flexible wiring
• 5‑pin M12 socket simplifies field connection
• Maximum operating pressure 0.7 MPa for robust pneumatic operation
• LCD backlight ensures readable status in low light

Applications

• Suitable for sequencing valves in automated assembly lines
• Ideal for control of pick-and-place pneumatic grippers
• Used for centralised switching in machine control panels
• Can be used for signal distribution in compressed-air networks
• Suitable for interfacing multiple sensors in factory automation

What voltage does it require for operation?

It runs from a 24V supply compatible with common industrial control systems.

What environmental temperatures can it tolerate during use?

It operates reliably between -10 °C and +50 °C.

What kind of media is the device intended to work with?

It is designed specifically for use with compressed Air in pneumatic circuits.

How are electrical connections MADE to the unit?

Connections are via a 5‑pin M12 socket intended for secure industrial cabling.

Does it support operation in intrinsically hazardous areas?

It has no hazardous-area certification and should not be used where such certification is required.
