제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SMC
	Product Type	Pneumatic Logic Controller
	Series	EX250
	Number of Inputs	48
	Voltage	24V
	Hazardous Area Certification	NO
	Display Type	LED Indicator
	Number of Outputs	32
	Minimum Operating Temperature	5°C
	Maximum Operating Temperature	+45°C
	Width	63mm
	Depth	59.8mm
	Height	78.9mm
	Standards/Approvals	CE, RoHS, UL (CSA)
	Suitable Medias	Air
	Connection Type	Swivel Heavy Series with O-Ring 45° Elbow
	Output Type	PNP

	모두 선택
	브랜드 SMC
	Product Type Pneumatic Logic Controller
	Series EX250
	Number of Inputs 48
	Voltage 24V
	Hazardous Area Certification NO
	Display Type LED Indicator
	Number of Outputs 32
	Minimum Operating Temperature 5°C
	Maximum Operating Temperature +45°C
	Width 63mm
	Depth 59.8mm
	Height 78.9mm
	Standards/Approvals CE, RoHS, UL (CSA)
	Suitable Medias Air
	Connection Type Swivel Heavy Series with O-Ring 45° Elbow
	Output Type PNP

COO (Country of Origin):: JP

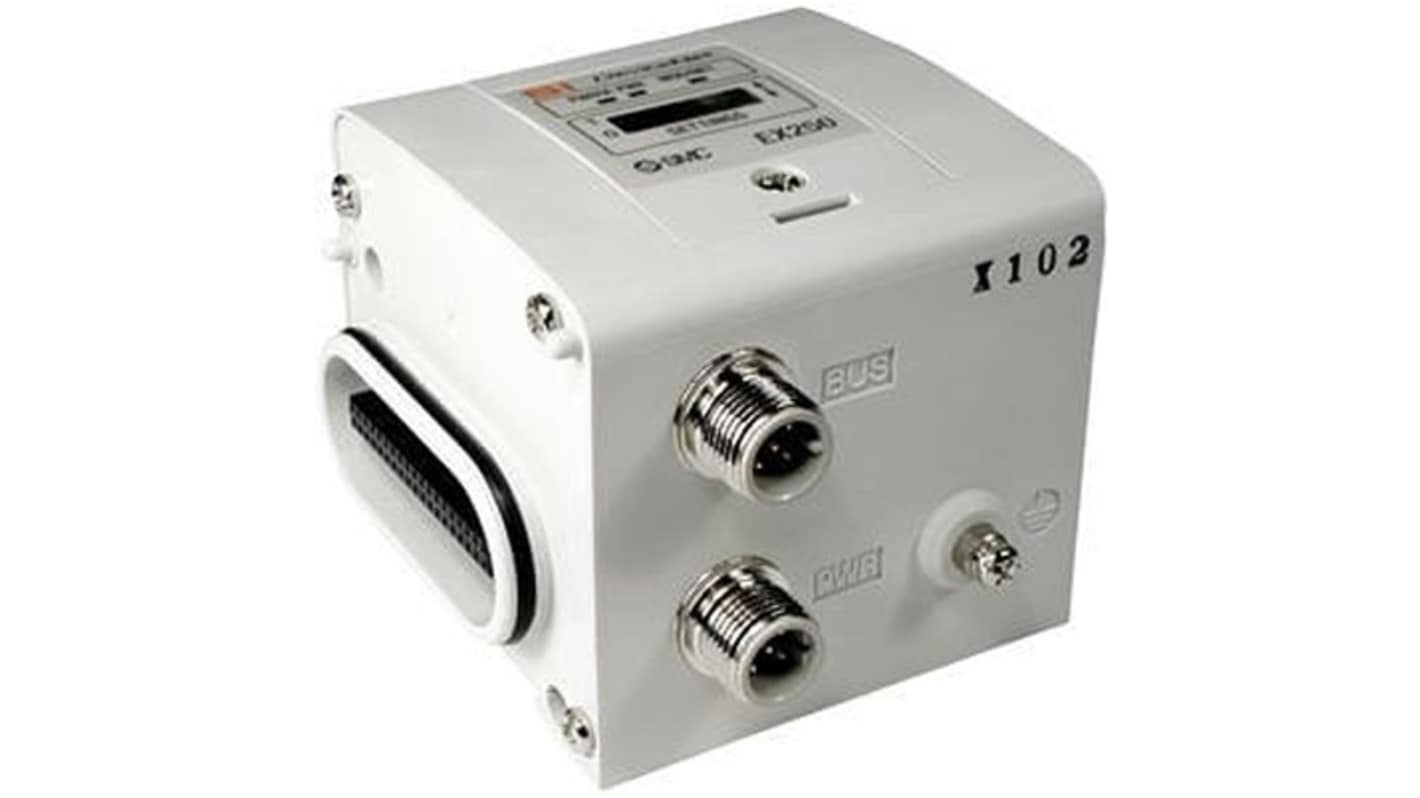

SMC EX250 Series Pneumatic Logic Controller, 48 Inputs, 32 Outputs - EX250-SEN1

This pneumatic logic controller is a Compact industrial module designed to manage pneumatic valve networks and sensor inputs within automation systems. It operates from a 24V supply and accepts Air as the controlled medium. The unit provides LED indication for status monitoring and connects via a swivel heavy-series 45° elbow connector to simplify cabling in confined assemblies. It is intended for use where reliable PNP switching and a dense I/O count are required in factory and process environments.

Features & Benefits

• 48 inputs and 32 outputs deliver high I/O density for complex control
• PNP output configuration enables sink to source integration with PLCs
• 24V supply reduces integration complexity with standard control systems
• LED indicators offer immediate Visual status for diagnostics
• Operating range to +45°C permits use near warm equipment
• Swivel heavy-series 45° elbow eases tight-cabinet wiring routes

Applications

• Suitable for distributed valve manifold control in automated lines
• Ideal for pneumatic sequencing in packaging machinery
• used with solenoid valves in material-handling installations
• Can be used for remote I/O extension on manufacturing cells
• Suitable for factory-floor automation requiring Compact controllers

How is the unit connected to plant networks and field devices?

Connection is MADE using a swivel heavy-series 45° elbow Interface for the supply and signal cabling, and I/O devices wire directly to the designated terminals

the controller expects a 24V supply for logic and outputs.

What environmental limits must be observed during installation?

The controller is specified to operate up to +45°C and within non‑condensing humidity ranges

avoid locations exceeding that temperature to maintain correct operation.

What output behaviour occurs on communication failure?

Outputs are PNP type

in the event of communication irregularities the controller’s built-in status LEDs indicate errors so operators can identify and isolate the fault for corrective action.

Which medium is this device intended to control?

The controller is designed for pneumatic systems and specifically manages devices using compressed Air as the controlled medium.

SMC EX250 series Pneumatic Logic Controller
