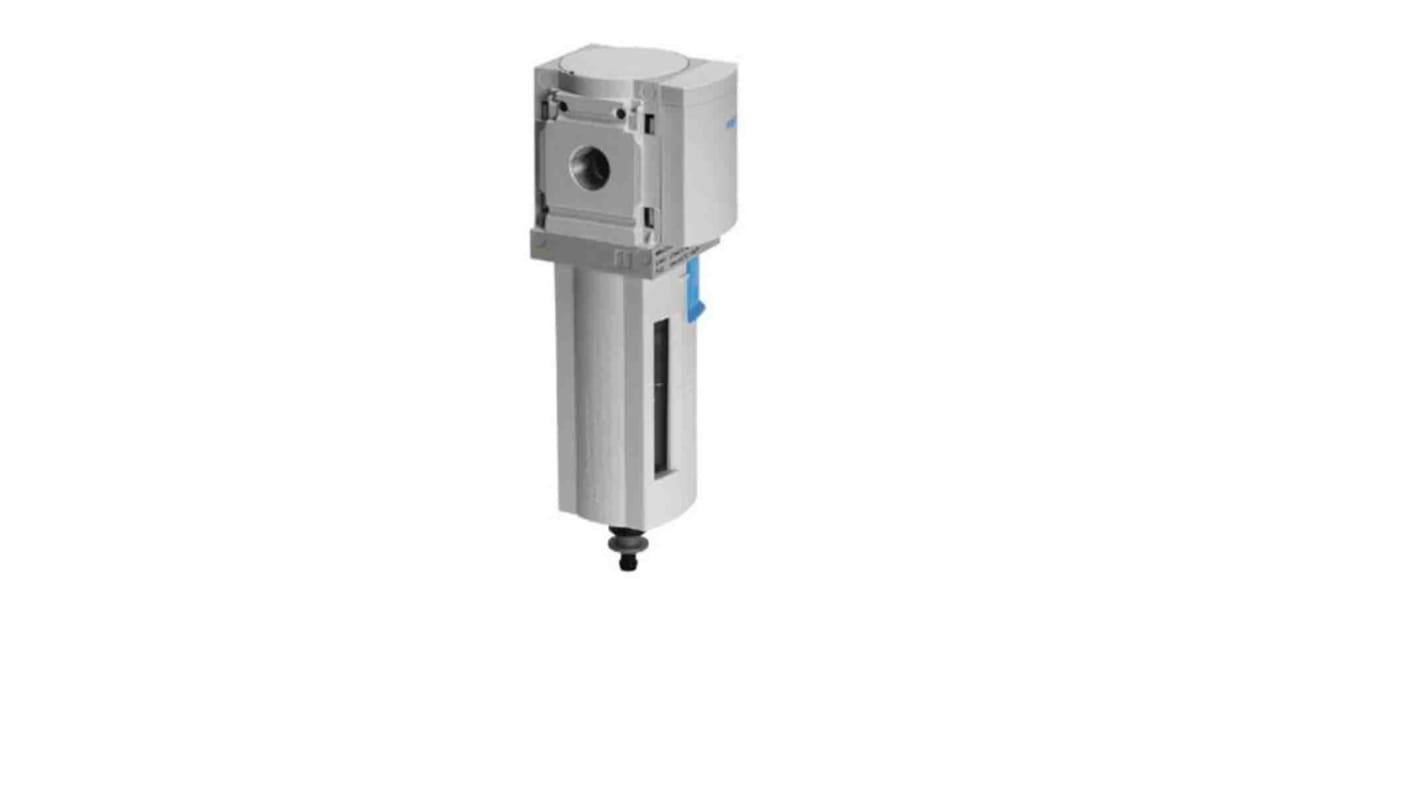

Festo MS series 40 μm 1/4 in G 20 bar Pneumatic Filter 2500L/min max with Manual drain

RS 제품 번호:: 202-3337
제조사 부품 번호:: MS6-LF-1/4-ERM
제조업체:: Festo

Festo MS series 40 μm 1/4 in G 20 bar Pneumatic Filter 2500L/min max with Manual drain

Subtotal (1 unit)*

₩115,060.00

제조사가 재고 비축중

2026년 11월 05일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩115,060.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 202-3337
제조사 부품 번호:: MS6-LF-1/4-ERM
제조업체:: Festo

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Festo
	Filtration Size	40μm
	Product Type	Pneumatic Filter
	Port Size	1/4 in G
	Drain Type	Manual
	Series	MS
	Maximum Flow Rate	2500L/min
	Seal Material	Nitrile Rubber (NBR)
	Maximum Operating Pressure	20 bar
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	ISO 8573-1:2010, RoHS
	Model Number	529631
	Bowl Material	Plastic
	Filter Type	Centrifugal Blower

	모두 선택
	브랜드 Festo
	Filtration Size 40μm
	Product Type Pneumatic Filter
	Port Size 1/4 in G
	Drain Type Manual
	Series MS
	Maximum Flow Rate 2500L/min
	Seal Material Nitrile Rubber (NBR)
	Maximum Operating Pressure 20 bar
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals ISO 8573-1:2010, RoHS
	Model Number 529631
	Bowl Material Plastic
	Filter Type Centrifugal Blower

COO (Country of Origin):: HU

Festo Series MS Pneumatic Filter, 40 μm Filtration size, 20 Bar Maximum Operating Pressure - MS6-LF-1/4-ERM, Numeric Part Number: 529631

This pneumatic filter is designed to enhance air quality in various industrial applications. Featuring a filtration size of 40μm, this high-performance unit ensures effective removal of contaminants and particulates from compressed air systems. With its vertical +/-5° mounting position and durable plastic bowl guard, this filter is built for ease of use and longevity in demanding environments.

Features & Benefits

• Manual drain mechanism simplifies maintenance processes

• Maximum flow rate of 2500 L/min accommodates high-demand applications

• Sintered filter design with centrifugal separator enhances filtration efficiency

• Operating pressure range from 0 bar to 20 bar enables versatile usage

• Corrosion resistance class CRC 2 provides durability in moderate stress environments

• Suitable for compressed air and inert gases as operating mediums

Applications

• Used in pneumatic systems to improve air quality

• Suitable for in automation and mechanical industries

• Ideal for filtering air in food processing environments

What maintenance is required to ensure optimal performance?

Regularly cleaning the manual drain and checking the bowl guard for damage are essential for maintaining efficiency and ensuring longevity. The filter should also be inspected periodically to ensure the sintered design retains its effectiveness.

Can this filter be used with different operating media?

Yes, this filter is compatible with compressed air and inert gases, making it versatile for varied applications in industrial settings.

What measures ensure this product complies with industry standards?

Its construction materials are RoHS-compliant, and it meets ISO 8573-1:2010 standards for air quality, ensuring it adheres to necessary regulatory requirements.

How does the condensate separation feature enhance operation?

The design provides over 75% condensate separation, reducing the risk of moisture entering the system, which can lead to equipment damage and inefficiencies.

What temperature range can this filter operate effectively in?

The pneumatic filter functions effectively between -10°C and +60°C, making it suitable for a variety of environmental conditions.
