Fluke 289 Handheld Digital Multimeter True RMS

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Multimeters 열람하기

Subtotal (1 unit)*

₩1,632,385.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,632,385.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
156-730
Distrelec 제품 번호:
176-09-213
제조사 부품 번호:
FLUKE 289/EUR
제조업체:
Fluke
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Fluke

Multimeter Type

Handheld

Product Type

Multimeter

Model Number

289

Display Type

Digital

Resistance Resolution

10mΩ

Functions Measured

AC Current, DC Current, Resistance, Capacitance, AC Voltage, Temperature, Continuity, DC Voltage

Maximum DC Voltage Measurement

1000V

True RMS

Yes

DC Current Accuracy

±0.15% rdg + 2 Digits

AC Current Accuracy

±0.7 % rdg + 5 Digits

DC Voltage Accuracy

±0.025% rdg + 5 Digits

AC Voltage Accuracy

±0.4 % rdg + 40 Digits

DC Current Resolution

0.01μA dc

DC Voltage Resolution

1 μV

AC Current Resolution

0.01μA ac

Maximum Frequency

100kHz

Resistance Measurement Accuracy

±0.05 % + 2 Digits

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

55°C

Battery Life

180h

Height

222mm

Width

102 mm

Weight

870.9g

Standards/Approvals

No

Length

60mm

Safety Category Level

CAT IV, CAT III

Battery Type

AA x 6

Safety Category Voltage

1000V

제외

COO (Country of Origin):
US

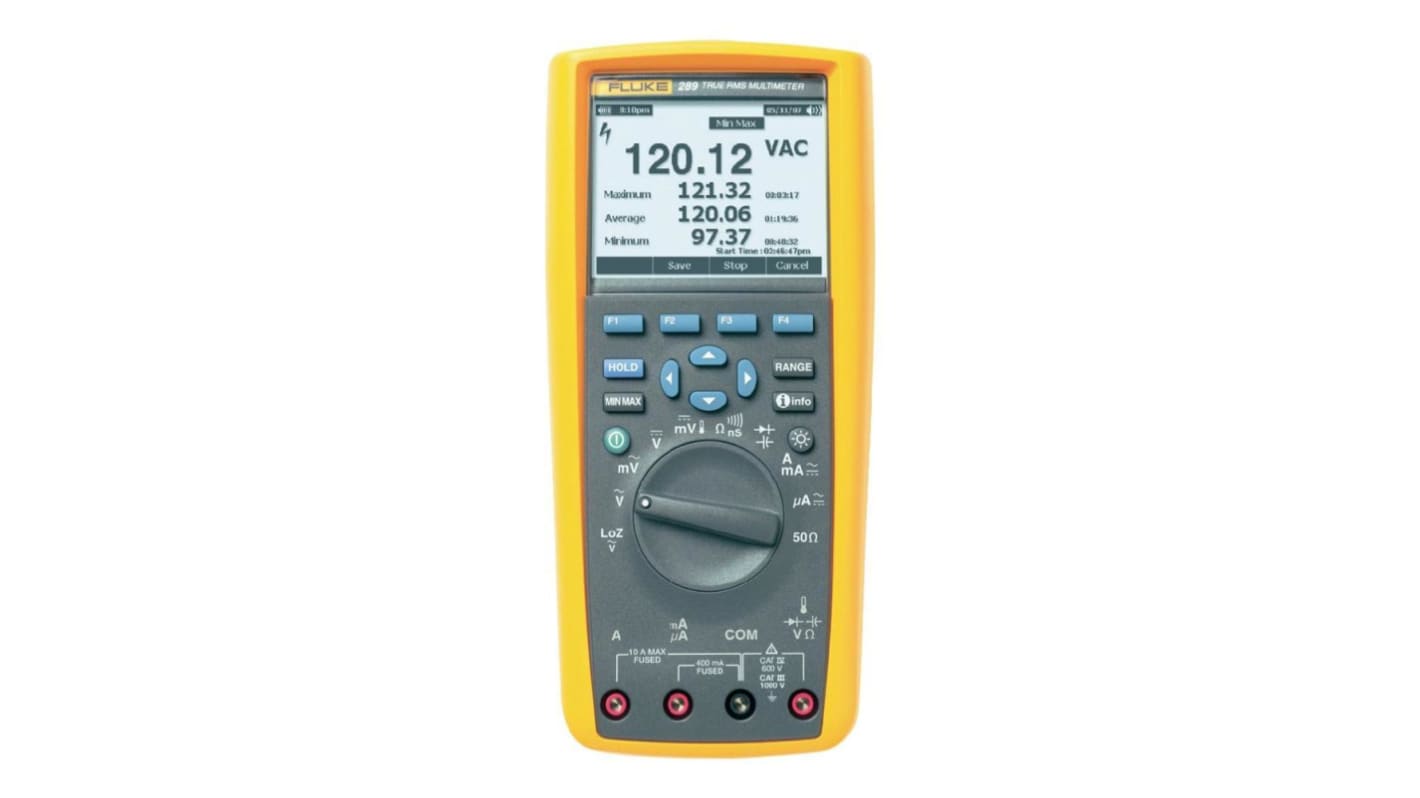

FLUKE Multimeter, Backlit Display, Shock and Vibration Resistant - FLUKE 289/EUR


Want to tackle industrial electrical issues – or even prevent them altogether? This advanced digital multimeter from FLUKE helps you out. Thanks to True-RMS technology and a low pass filter, you can trust it to give accurate readings for AC/DC voltage and current, as well as resistance, capacitance and frequency. Its peak capture mode lets it record transients as fast as 250μs, meaning no activity goes unnoticed. FLUKE's innovative TrendCapture feature, complete with zoom, gives you quick, easy-to-read graphical representations of your results, too. This lets you detect anomalies double quick. Plus, the device's handy low impedance voltage function ensures you can say goodbye to ghost voltages for good.

• Large backlit display is easy to read in all light conditions

• Resists shock and vibration, so you get durability in demanding environments

• Info button offers on-screen help to cut out confusion over device functions

Applications


• Industrial electronics

• Plant automation

• Power distribution

• Electro-mechanical equipment repair

What temperatures can I use this multimeter in?


Thanks to the product's operating temperature range of -20°C to +55°C, you can rest assured it's a great shout in challenging settings.

Fluke 289 Digital Multimeters


The Fluke 289 is optimised for industrial and field service professionals involved in the installation and maintenance or support of facilities or critical systems. It is the next generation of high performance industrial logging multimeters. Compatible with Fluke Connect, which is designed to solve complex problems in electronics, plant automation, power distribution and electro-mechanical equipment. The ability to log data and graphically review up to 10000 recorded events and logged readings with on-board TrendCapture. This lets the 289 be your watchdog for systems or processes while you are off doing other jobs.;With the Fluke 289 being Fluke Connect-compatible, you can set it up with the ir3000 FC wireless connector (Sold Separately - RS 811-1385) to communicate with your IOS and Android smart devices. This is through the Fluke Connect mobile app and monitor readings from a remote location or sharing the readings with your team in an instant anytime.

Features & Benefits


50 000 Count, 320 x 240 dot-matrix LCD display with white backlight, allowing clear multiple on-screen display of measurement information

0.025% basic DC accuracy

Logging function with TrendCapture plots measurements as single line to help detect anomalies (TrendCapture allows graphically view of logged readings without a PC)

F1 → F4 soft keys provide flexible user function menus

Navigation keys allow quick selection of menu options and scroll through information screens

Saved measurements allow operator to name and recall measurements made in the field

Upgradeable field and expandable meter as new capabilities are added

Record events and trends for troubleshooting intermittent problems or profiling loads

i-info button on-board helps screen for measurement functions

Internal memory allows standalone logging for up to 180 hours

Preferred measurement settings can be easily saved

True RMS AC voltage and current for accurate measurement of complex signals or non-linear loads. AC bandwidth specified to 100 kHz

DBV / dBm measurement

1 μV resolution in DC mV range

Current measurement 20 A (30 seconds momentary, 10 A continuous)

Peak capture function to record transients as fast as 250 μs

Continuity / Conductance / Capacitance

Resistance and continuity

Duty cycle & pulse width measurement

Min / Max / Average with Time Stamp to record signal fluctuations

Real time and elapsed time modes

CAT III 1000 V / CAT IV 600 V safety rated

Fluke 289 Extra Features


LoZ low input impedance function helps prevent false readings due to ’ghost voltage’

50 Ω range for motor winding and low ohm measurements

Low pass filter allows for accurate measurements of motor drives

Optical USB PC communication interface allows for easy PC download to document logged data with FVF software, available separately

Supplied with

The Fluke 289 comes with:
Manual
6 x AA Batteries
Installed TL71 Silicone Test Leads
Probe Holder
2 x AC72 Alligator Clips
