Variohm Group E111 Series Incremental Position Sensor 11.4V, Analogue Signal, Solid Type, 10 mm Shaft
- RS 제품 번호:
- 553-596
- 제조사 부품 번호:
- E111.400AI200NUZ000
- 제조업체:
- Variohm Group
Subtotal (1 unit)*
₩4,838,700.00
제조사가 재고 비축중
- 2026년 10월 20일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩4,838,700.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 553-596
- 제조사 부품 번호:
- E111.400AI200NUZ000
- 제조업체:
- Variohm Group
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Variohm Group | |
| Encoder Technology | Incremental | |
| Product Type | Position Sensor | |
| Series | E111 | |
| Output Signal Type | Analogue | |
| Shaft Type | Solid | |
| Stroke | 400 mm | |
| Shaft Diameter | 10mm | |
| Interface Type | Cable Gland, M12 Connector | |
| IP Rating | IP67 | |
| Maximum Supply Voltage | 11.4V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | UKEX, IEC 68-2-6, IECEX, IEC 68-2-29, EN 61000-6-3, EN 61000-6-2, ATEX | |
| Mount Type | Threaded | |
| Maximum Operating Temperature | 80°C | |
| Switching Frequency | 10kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Variohm Group | ||
Encoder Technology Incremental | ||
Product Type Position Sensor | ||
Series E111 | ||
Output Signal Type Analogue | ||
Shaft Type Solid | ||
Stroke 400 mm | ||
Shaft Diameter 10mm | ||
Interface Type Cable Gland, M12 Connector | ||
IP Rating IP67 | ||
Maximum Supply Voltage 11.4V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals UKEX, IEC 68-2-6, IECEX, IEC 68-2-29, EN 61000-6-3, EN 61000-6-2, ATEX | ||
Mount Type Threaded | ||
Maximum Operating Temperature 80°C | ||
Switching Frequency 10kHz | ||
- COO (Country of Origin):
- GB

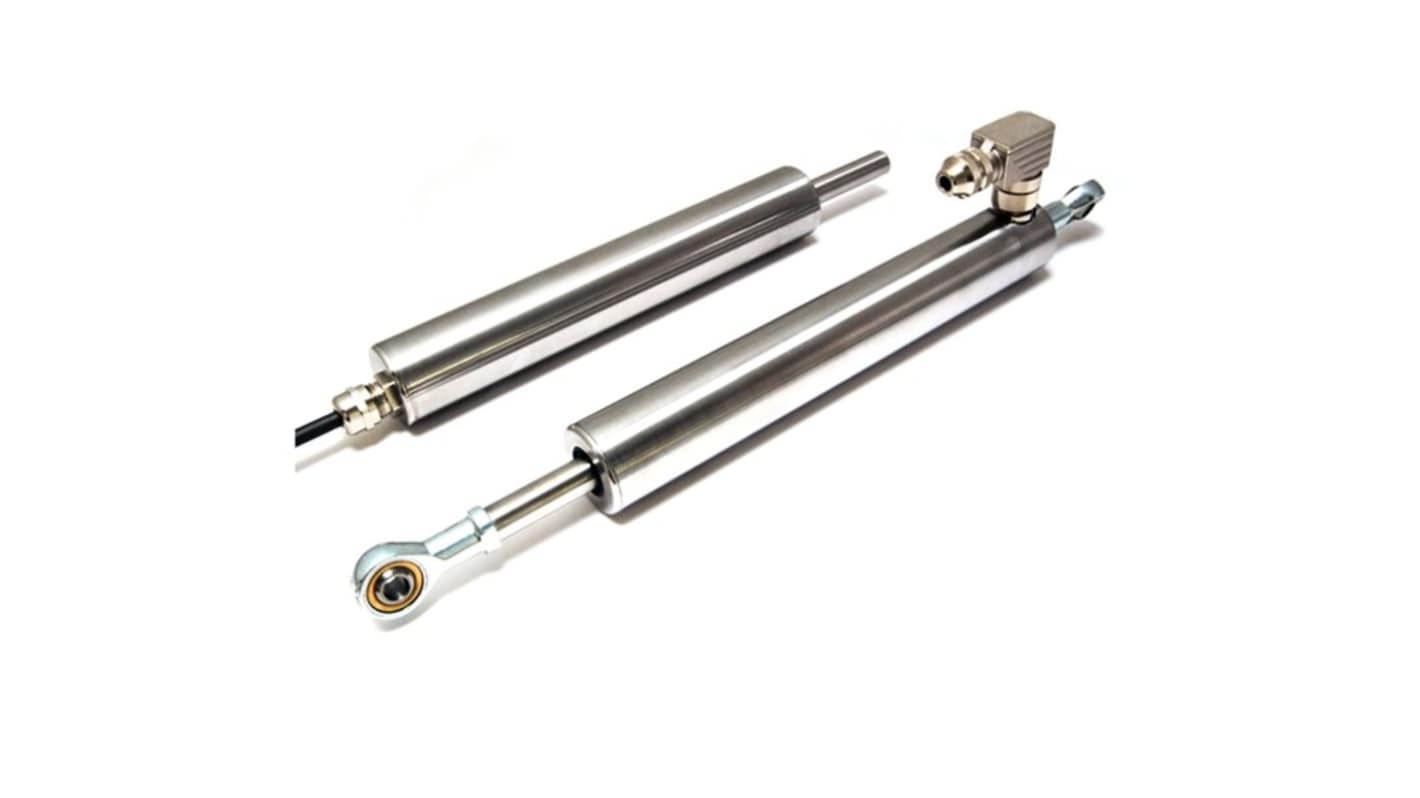

The Variohm Group Linear Position Sensor incorporates electronics system EX07 which is ATEX approved for use in potentially explosive gas/vapour and dust atmospheres. It is recommended for applications where vibration is an issue or there is a need for longer travel sensors, mounted horizontally, and supported between rod eyes. It remains an affordable position sensor designed for industrial and scientific feedback applications. The unit is highly compact and space-efficient, being responsive along almost its entire length.
Non contacting inductive technology to eliminate wear
High durability and reliability
High accuracy and stability
Sealing to IP67
