Variohm Group P100 Series Incremental Position Sensor 28V, Analogue Signal, Solid Type, 6 mm Shaft
- RS 제품 번호:
- 553-583
- 제조사 부품 번호:
- P100.125HJTRU
- 제조업체:
- Variohm Group
Subtotal (1 unit)*
₩1,224,229.50
제조사가 재고 비축중
- 2026년 6월 04일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,224,229.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 553-583
- 제조사 부품 번호:
- P100.125HJTRU
- 제조업체:
- Variohm Group
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Variohm Group | |
| Encoder Technology | Incremental | |
| Product Type | Position Sensor | |
| Series | P100 | |
| Output Signal Type | Analogue | |
| Stroke | 125 mm | |
| Shaft Type | Solid | |
| Shaft Diameter | 6mm | |
| Terminal Type | 4-Pin | |
| IP Rating | IP65, IP67 | |
| Maximum Supply Voltage | 28V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | IEC 68-2-29, EN 61000-6-2, EN 61000-6-3, IEC 68-2-6 | |
| Maximum Operating Temperature | 125°C | |
| Mount Type | Threaded | |
| Switching Frequency | 10kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Variohm Group | ||
Encoder Technology Incremental | ||
Product Type Position Sensor | ||
Series P100 | ||
Output Signal Type Analogue | ||
Stroke 125 mm | ||
Shaft Type Solid | ||
Shaft Diameter 6mm | ||
Terminal Type 4-Pin | ||
IP Rating IP65, IP67 | ||
Maximum Supply Voltage 28V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals IEC 68-2-29, EN 61000-6-2, EN 61000-6-3, IEC 68-2-6 | ||
Maximum Operating Temperature 125°C | ||
Mount Type Threaded | ||
Switching Frequency 10kHz | ||

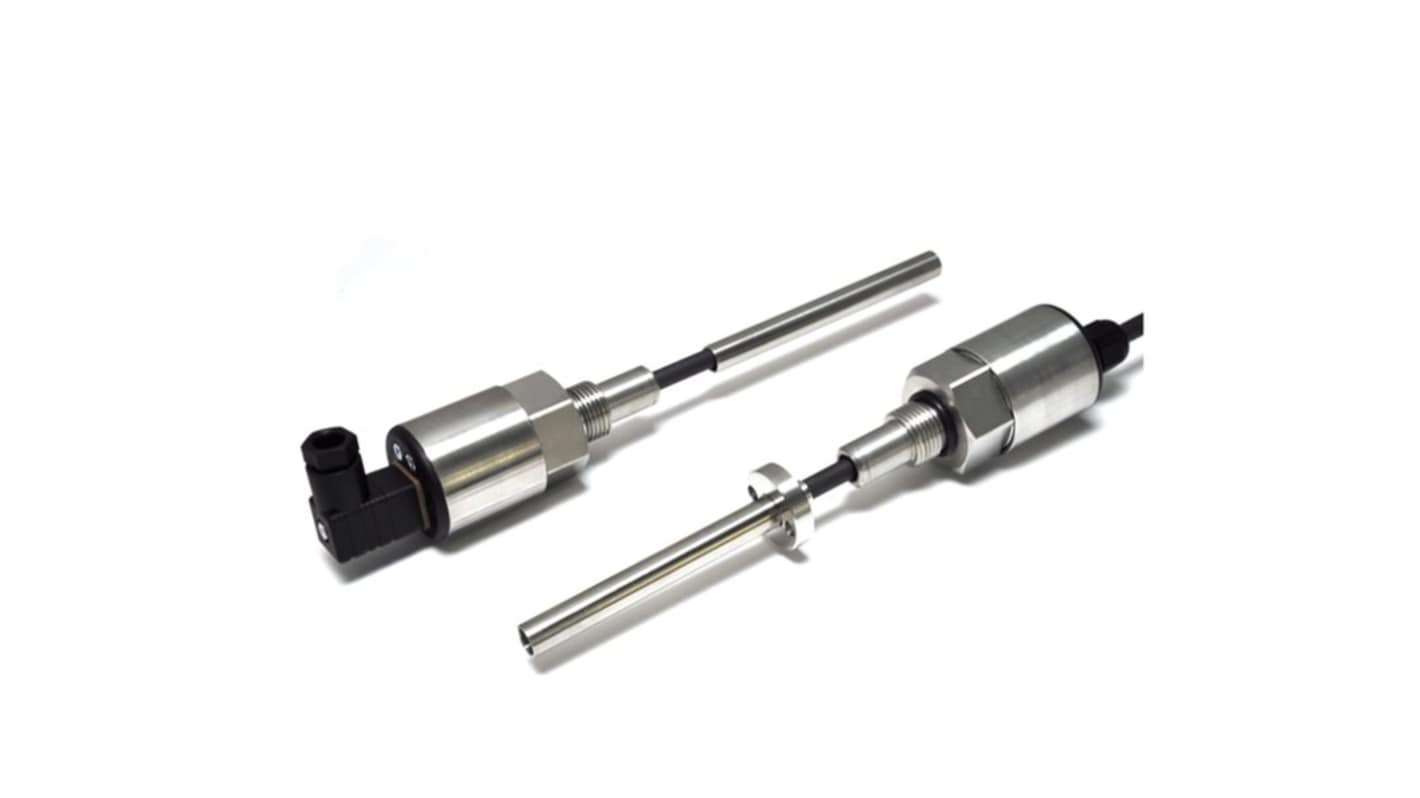

The Variohm Group Linear Position Sensor is an affordable position sensor designed for hydraulic and pneumatic cylinders feedback applications where service life, environmental resistance and cost are important. It is particularly suitable for OEMs seeking good sensor performance for arduous applications such as industrial machinery. Overall performance, repeatability and stability are outstanding over a wide temperature range. The unit is highly compact and space-efficient, being responsive along almost its entire length.
Non contacting inductive technology to eliminate wear
High durability and reliability
High accuracy and stability
Sealing to IP65 or IP67
