Variohm Group P117 Series Incremental Position Sensor 28V, Analogue Signal, Solid Type, 6 mm Shaft
- RS 제품 번호:
- 553-590
- 제조사 부품 번호:
- P117.225CKNU
- 제조업체:
- Variohm Group
Subtotal (1 unit)*
₩2,515,060.00
제조사가 재고 비축중
- 2026년 10월 19일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,515,060.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 553-590
- 제조사 부품 번호:
- P117.225CKNU
- 제조업체:
- Variohm Group
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Variohm Group | |
| Product Type | Position Sensor | |
| Encoder Technology | Incremental | |
| Series | P117 | |
| Output Signal Type | Analogue | |
| Stroke | 225 mm | |
| Shaft Type | Solid | |
| Shaft Diameter | 6mm | |
| IP Rating | IP67 | |
| Maximum Supply Voltage | 28V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | EN 61000-6-2, IEC 61076-2-104, EN 61000-6-3, IEC 61076-2-101 | |
| Maximum Operating Temperature | 125°C | |
| Mount Type | Clamp | |
| Switching Frequency | 10kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Variohm Group | ||
Product Type Position Sensor | ||
Encoder Technology Incremental | ||
Series P117 | ||
Output Signal Type Analogue | ||
Stroke 225 mm | ||
Shaft Type Solid | ||
Shaft Diameter 6mm | ||
IP Rating IP67 | ||
Maximum Supply Voltage 28V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals EN 61000-6-2, IEC 61076-2-104, EN 61000-6-3, IEC 61076-2-101 | ||
Maximum Operating Temperature 125°C | ||
Mount Type Clamp | ||
Switching Frequency 10kHz | ||
- COO (Country of Origin):
- GB

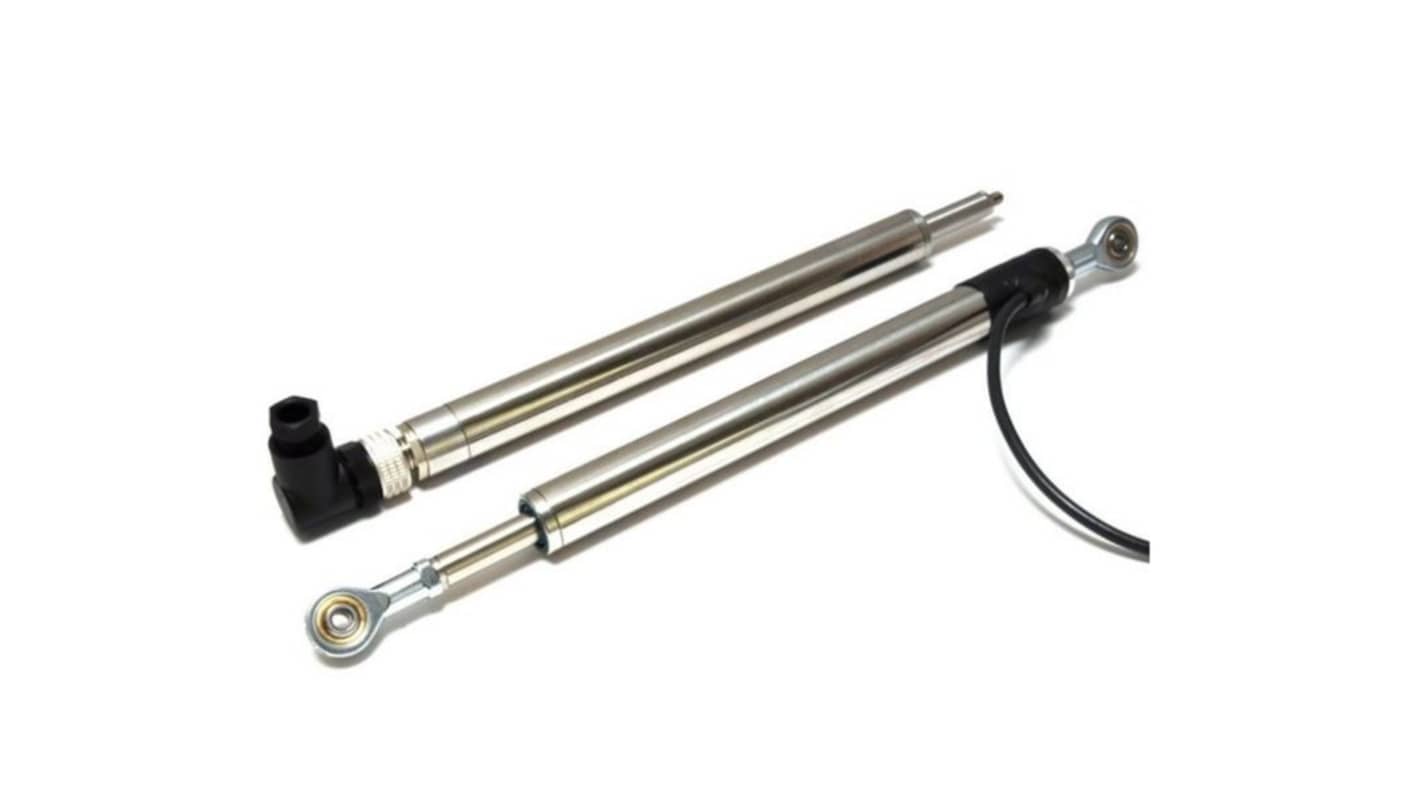

The Variohm Group Slim-Line Linear Position Sensor is an affordable, durable position sensor designed for industrial and scientific feedback applications. It is particularly suitable for OEMs seeking good sensor performance for arduous applications such as industrial machinery where cost is important. The sensor is very robust, the body and push rod being made of stainless steel.
Non contacting inductive technology to eliminate wear
Compact 19 mm diameter body
High accuracy and stability
Sealing to IP67
