Variohm Group S115 Series Incremental Position Sensor 28V, Analogue Signal, Solid Type, 6 mm Shaft
- RS 제품 번호:
- 553-586
- 제조사 부품 번호:
- S115.175HKNU
- 제조업체:
- Variohm Group
Subtotal (1 unit)*
₩3,146,680.00
제조사가 재고 비축중
- 2026년 10월 16일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩3,146,680.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 553-586
- 제조사 부품 번호:
- S115.175HKNU
- 제조업체:
- Variohm Group
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Variohm Group | |
| Product Type | Position Sensor | |
| Encoder Technology | Incremental | |
| Series | S115 | |
| Output Signal Type | Analogue | |
| Shaft Type | Solid | |
| Stroke | 175 mm | |
| Shaft Diameter | 6mm | |
| Interface Type | Cable Gland, Connector | |
| IP Rating | IP68, IP69K | |
| Maximum Supply Voltage | 28V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | EN 61000-6-2, IEC 68-2-29, EN 61000-6-3, IEC 68-2-6 | |
| Maximum Operating Temperature | 125°C | |
| Mount Type | Threaded, Clamp | |
| Switching Frequency | 10kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Variohm Group | ||
Product Type Position Sensor | ||
Encoder Technology Incremental | ||
Series S115 | ||
Output Signal Type Analogue | ||
Shaft Type Solid | ||
Stroke 175 mm | ||
Shaft Diameter 6mm | ||
Interface Type Cable Gland, Connector | ||
IP Rating IP68, IP69K | ||
Maximum Supply Voltage 28V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals EN 61000-6-2, IEC 68-2-29, EN 61000-6-3, IEC 68-2-6 | ||
Maximum Operating Temperature 125°C | ||
Mount Type Threaded, Clamp | ||
Switching Frequency 10kHz | ||
- COO (Country of Origin):
- GB

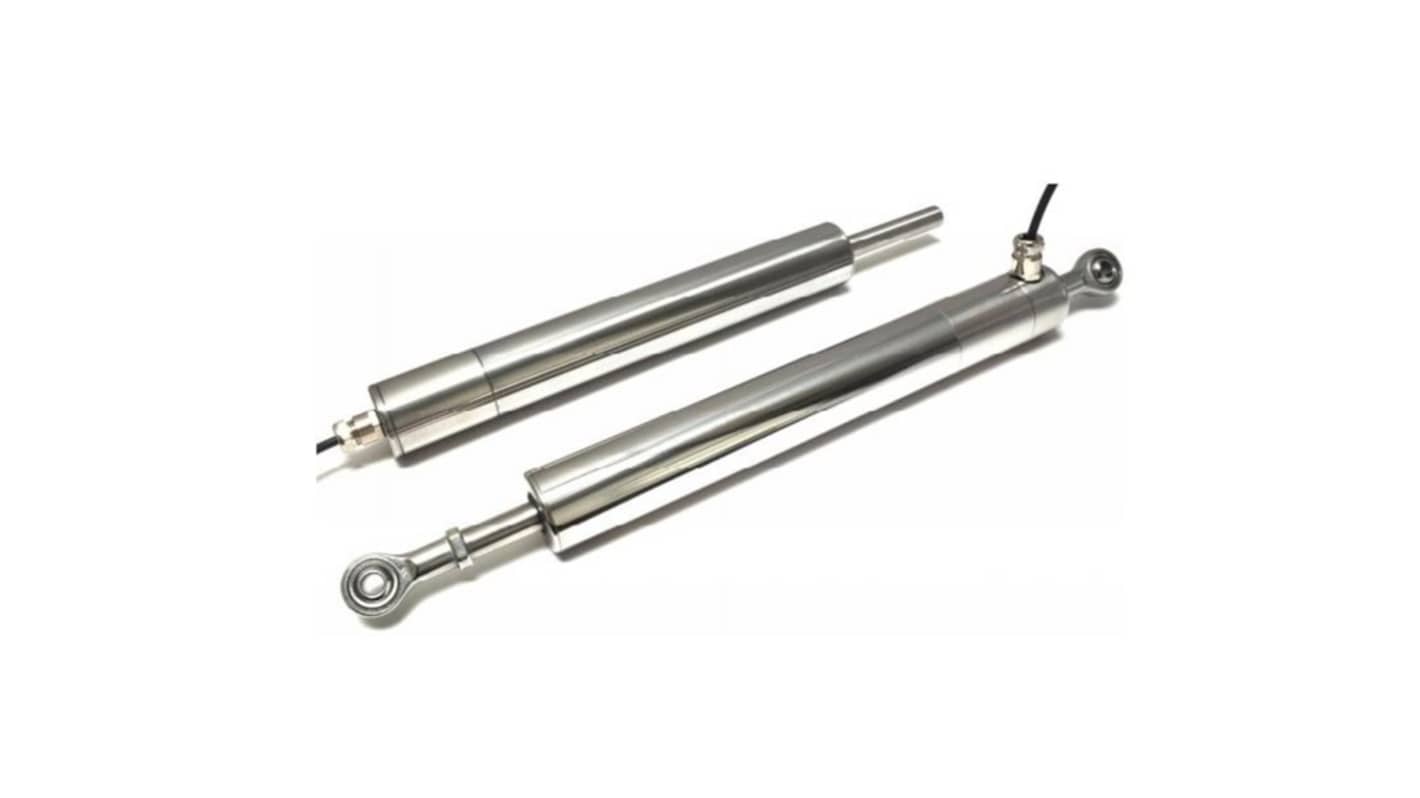

The Variohm Group Submersible Linear Position Sensor is a heavy-duty version of the S114 sensor recommended for applications where vibration is an issue or there is a need for longer travel sensors which are to be mounted horizontally between rod eyes. It remains an affordable position sensor designed for applications where the sensor would be completely submerged during normal operation. The unit is highly compact and space-efficient, being responsive along almost its entire length.
Non contacting inductive technology to eliminate wear
High durability and reliability
High accuracy and stability
Sealing to IP68 10 bar or IP69K
