Variohm Group X111 Series Incremental Position Sensor 5.5V, Analogue Signal, Solid Type, 6 mm Shaft
- RS 제품 번호:
- 553-593
- 제조사 부품 번호:
- X111.400AI200NUZ000
- 제조업체:
- Variohm Group
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 553-593
- 제조사 부품 번호:
- X111.400AI200NUZ000
- 제조업체:
- Variohm Group
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Variohm Group | |
| Product Type | Position Sensor | |
| Encoder Technology | Incremental | |
| Series | X111 | |
| Output Signal Type | Analogue | |
| Stroke | 400 mm | |
| Shaft Type | Solid | |
| Shaft Diameter | 6mm | |
| IP Rating | IP65, IP67 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Overall Width | 35mm | |
| Standards/Approvals | ATEX/IECEx/UKEX, EN 61000-6-3, IEC 68-2-29, IEC 68-2-6, EN 61000-6-2, IEC 60176-2-101 | |
| Maximum Operating Temperature | 80°C | |
| Mount Type | Threaded | |
| Switching Frequency | 10kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Variohm Group | ||
Product Type Position Sensor | ||
Encoder Technology Incremental | ||
Series X111 | ||
Output Signal Type Analogue | ||
Stroke 400 mm | ||
Shaft Type Solid | ||
Shaft Diameter 6mm | ||
IP Rating IP65, IP67 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Overall Width 35mm | ||
Standards/Approvals ATEX/IECEx/UKEX, EN 61000-6-3, IEC 68-2-29, IEC 68-2-6, EN 61000-6-2, IEC 60176-2-101 | ||
Maximum Operating Temperature 80°C | ||
Mount Type Threaded | ||
Switching Frequency 10kHz | ||
- COO (Country of Origin):
- GB

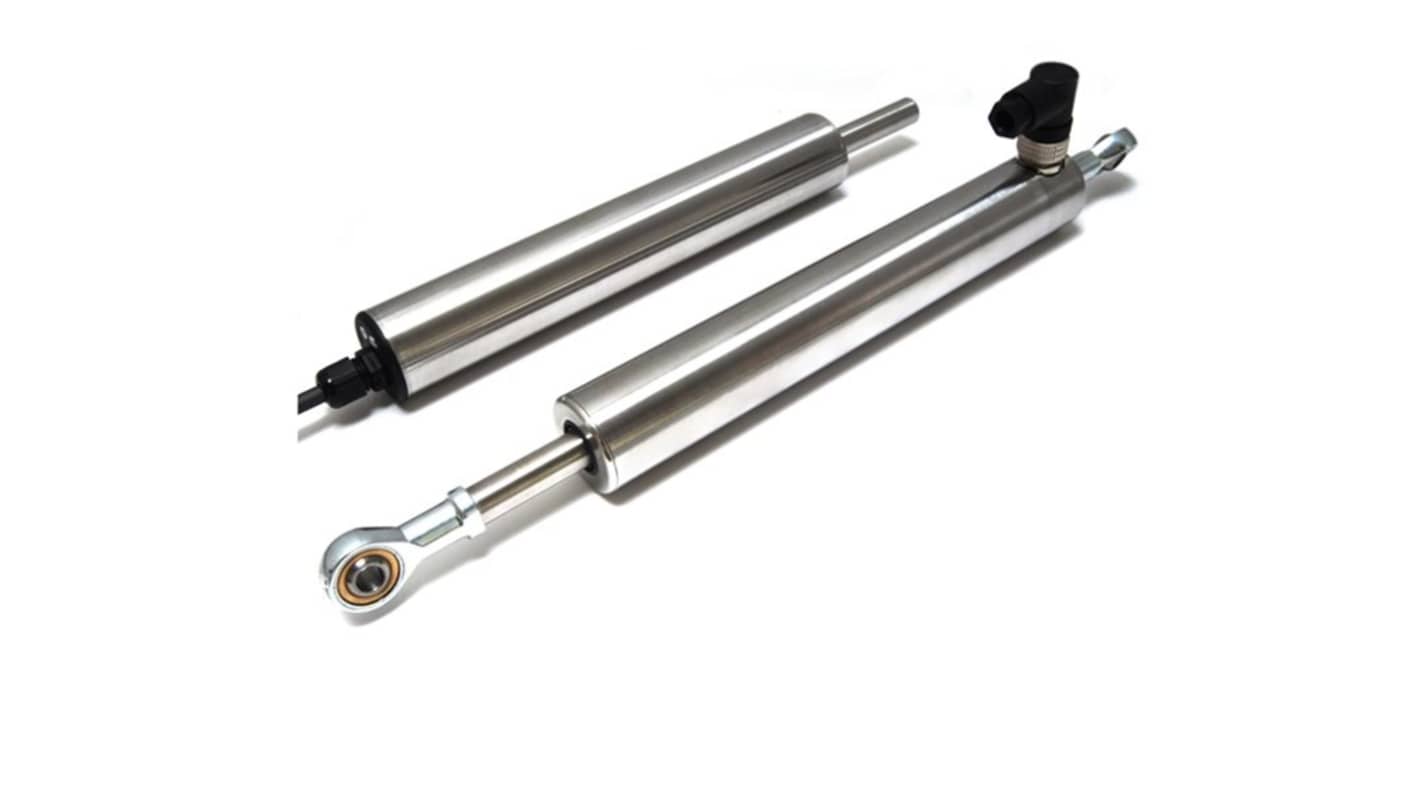

The Variohm Group Linear Position Sensor incorporates electronics system EX07 which is ATEX approved for use in potentially explosive gas/vapour atmospheres. It is recommended for applications where vibration is an issue or there is a need for longer travel sensors, mounted horizontally, and supported between rod eyes. It remains an affordable position sensor designed for industrial and scientific feedback applications. The unit is highly compact and space-efficient, being responsive along almost its entire length.
Non contacting inductive technology to eliminate wear
High durability and reliability
High accuracy and stability
Sealing to IP65 or IP67
