Pramet, 3.97 mm Height, 93 ° Approach, 11.6 mm Length

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
866-0461
제조사 부품 번호:
DCMT 11T304E-FM:T9315
제조업체:
Pramet
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Pramet

Product Type

Lathe Part

Approach Angle

93°

Length

11.6mm

Height

3.97mm

Inscribed Circle

9.5mm

Number of Cutting Edges

4

Standards/Approvals

No

Shape

Diamond

제외

COO (Country of Origin):
CZ

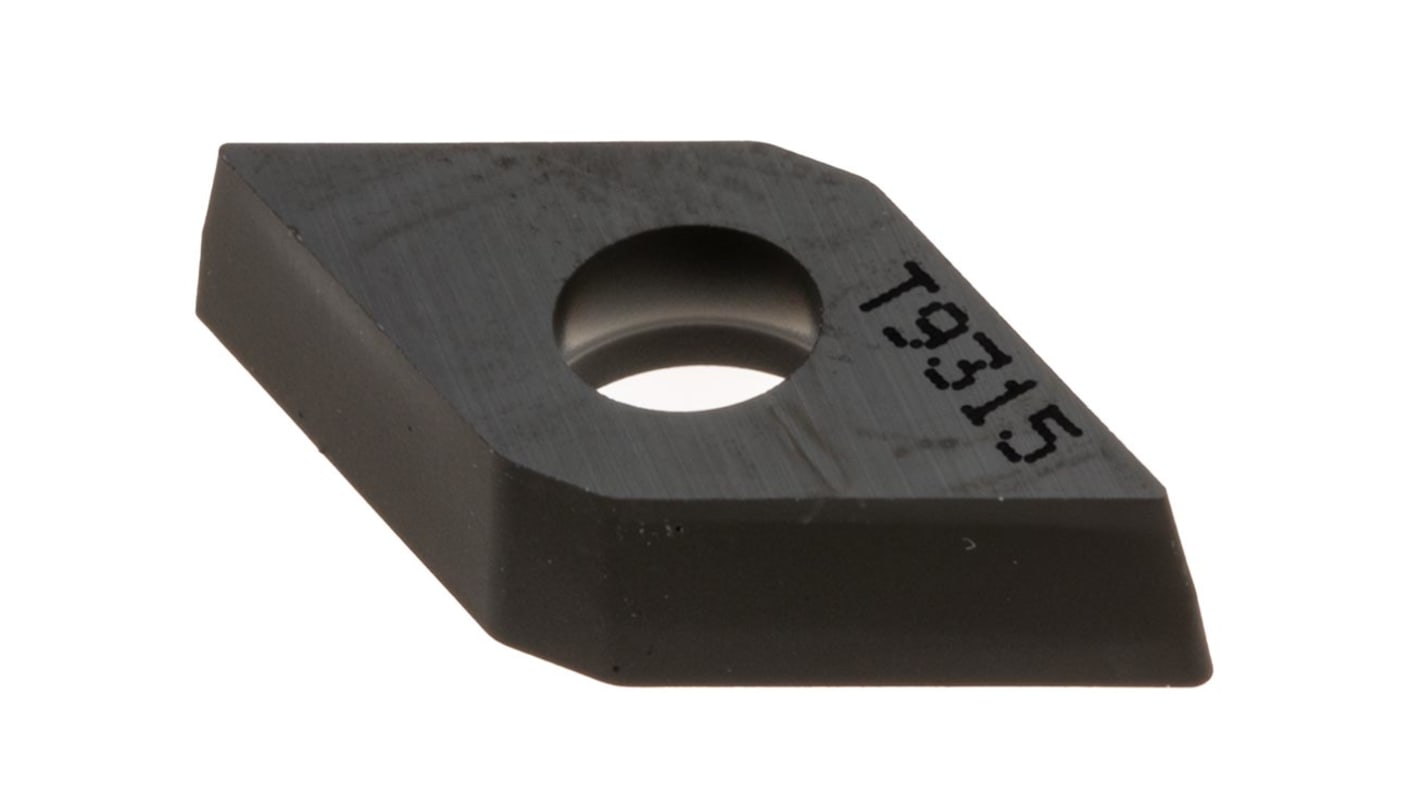

Pramet Lathe Part, Diamond Shape, 0.4mm Radius - DCMT Series - DCMT 11T304E-FM:T9315


Need a hand to help with the precise shaping of your workpiece? Go for this lathe part from Pramet. It's a jack of many trades that fits the bill for various machine operations, including profiling, grooving and facing. The unit is indexable, meaning you can easily swap it out for a new one when it's worn or when the job calls for a different part.

Features & Benefits


• Approach angle of 93° for enhanced durability and resistance to chipping

• Bore diameter of 4.5mm for ease of insertion into the compatible tool holder (866-0335)

Applications


• Oil and gas plants

• Military equipment

How do I ensure the optimal performance of this lathe part?


For best results, you should use coolants or lubricants during machining for heat dissipation and improved chip evacuation.
