Pramet, 4.76 mm Height, 93 ° Approach, 11.6 mm Length

본 제품군 열람하기

Subtotal (1 Box of 10 units)*

₩229,078.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es)
Per Box
한팩당*
1 +₩229,078.00₩22,907.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
866-0414
제조사 부품 번호:
DNMG 110404E-FM:T9315
제조업체:
Pramet
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Pramet

Product Type

Lathe Part

Approach Angle

93°

Length

11.6mm

Height

4.76mm

Number of Cutting Edges

4

Inscribed Circle

9.5mm

Standards/Approvals

No

Shape

Diamond

제외

COO (Country of Origin):
CZ

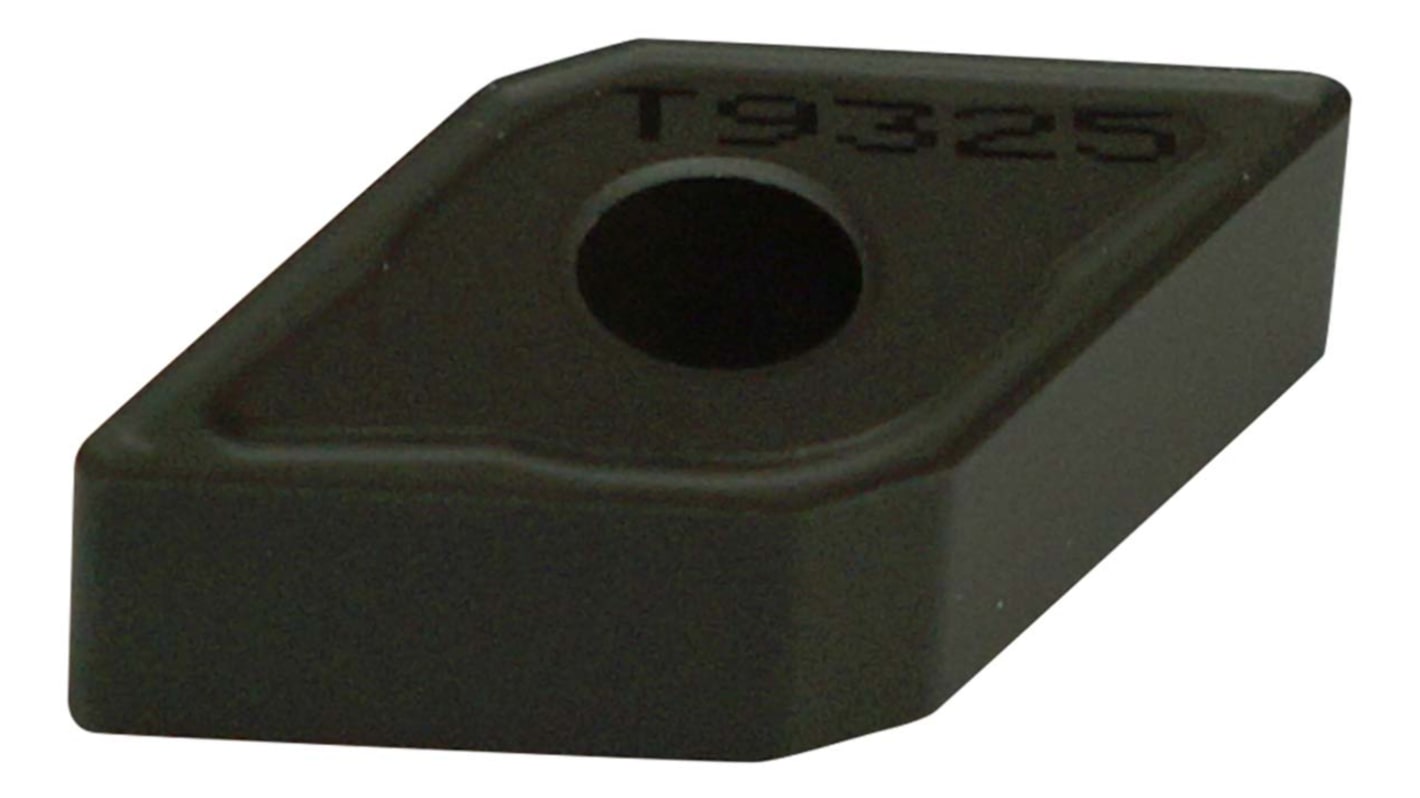

Pramet DNMG Insert


For use with DDJN, PDJN, PDNN, PDXN and PDUN Holders & Bars.

T9315


Excellent for machining Steel

Acceptable for Cast Iron and Hardened Steels

T9325


Excellent for machining Steel and Stainless Steel

Acceptable for Cast Iron

Turning Inserts


Breakdown of ISO Reference


Higher Number = Tougher / Resistant to Impact

Lower Number = Harder / Wear Resistant

TU5525 the New Universal Turning Grade


TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.

TP2135 a Tough Impact Resistant Grade


If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.
