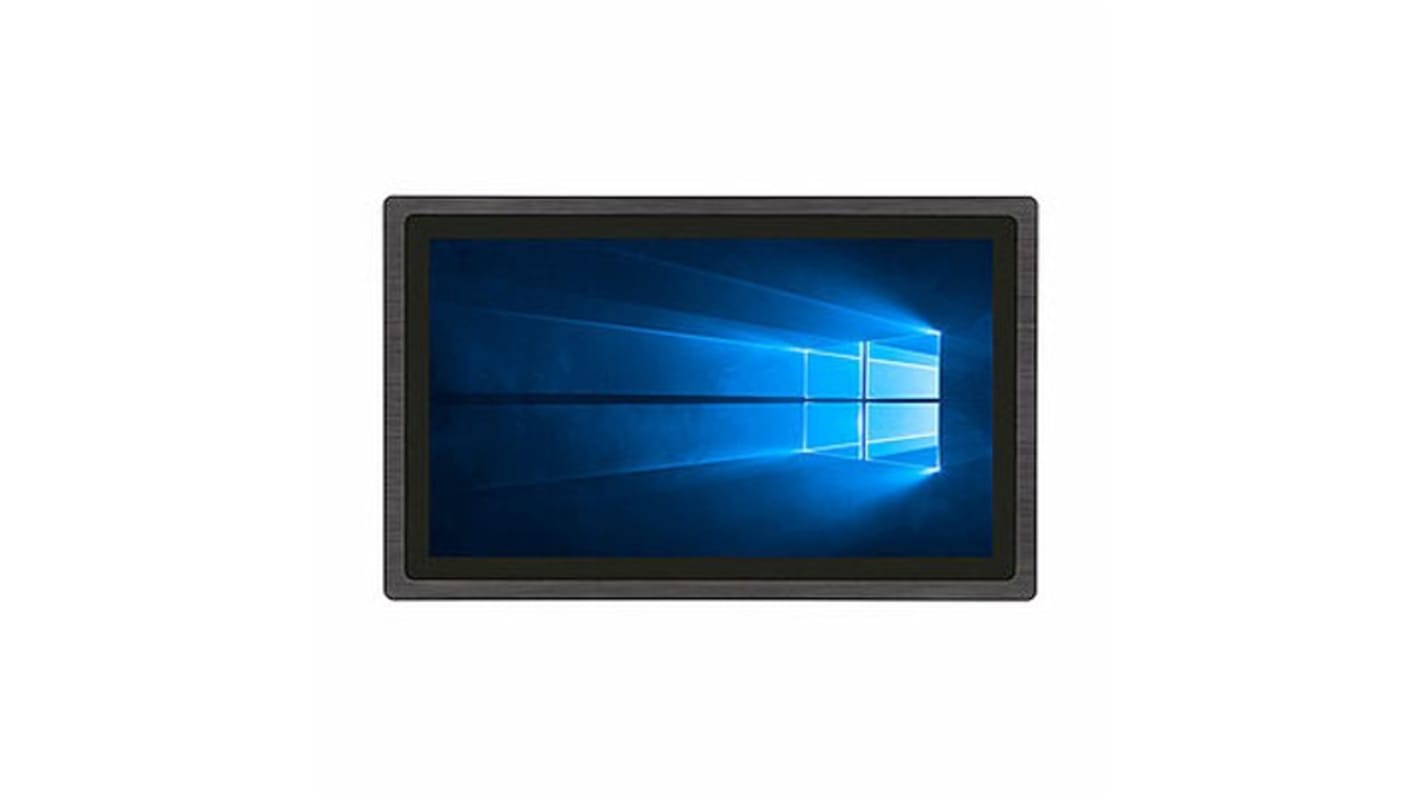

Wachendorff PPC002 Series Display Unit - 21.5 in, TFT LCD Display, 1920 x 1080 pixel
- RS 제품 번호:
- 284-8516
- 제조사 부품 번호:
- PPC002-215CAH08512WAED2P
- 제조업체:
- Wachendorff
Subtotal (1 unit)*
₩3,285,980.00
단종되는 중
- 최종적인 1 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 + | ₩3,285,980.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 284-8516
- 제조사 부품 번호:
- PPC002-215CAH08512WAED2P
- 제조업체:
- Wachendorff
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wachendorff | |
| Series | PPC002 | |
| Product Type | Display Unit | |
| Display Type | TFT LCD | |
| Display Resolution | 1920 x 1080 pixel | |
| Number of Ports | 13 | |
| Port Type | 2 x RS232 | |
| Minimum Operating Temperature | -10°C | |
| Onboard Memory | 8GB | |
| Maximum Operating Temperature | 65°C | |
| Diagonal Display Size | 21.5in | |
| Width | 345mm | |
| Depth | 65mm | |
| Standards/Approvals | FCC, CE, RoHS, REACH | |
| Length | 557mm | |
| IP Rating | IP65 | |
| Hazardous Area Certification | No | |
| Display Colour | 16.7 Million | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wachendorff | ||
Series PPC002 | ||
Product Type Display Unit | ||
Display Type TFT LCD | ||
Display Resolution 1920 x 1080 pixel | ||
Number of Ports 13 | ||
Port Type 2 x RS232 | ||
Minimum Operating Temperature -10°C | ||
Onboard Memory 8GB | ||
Maximum Operating Temperature 65°C | ||
Diagonal Display Size 21.5in | ||
Width 345mm | ||
Depth 65mm | ||
Standards/Approvals FCC, CE, RoHS, REACH | ||
Length 557mm | ||
IP Rating IP65 | ||
Hazardous Area Certification No | ||
Display Colour 16.7 Million | ||
- COO (Country of Origin):
- CN
The Wachendorff industrial Panel PCs are available in display sizes ranging from 10 inch to 23.8 inch, optionally equipped with projected capacitive, resistive, or no touch functionality. The projected capacitive touch allows for multitouch operation with a compatible operating system. When pressure-sensitive operation is necessary (example with gloves), the resistive touch is the appropriate choice.
Aluminum die-cast housing
Flush-mounted design
IP65 on the front side
