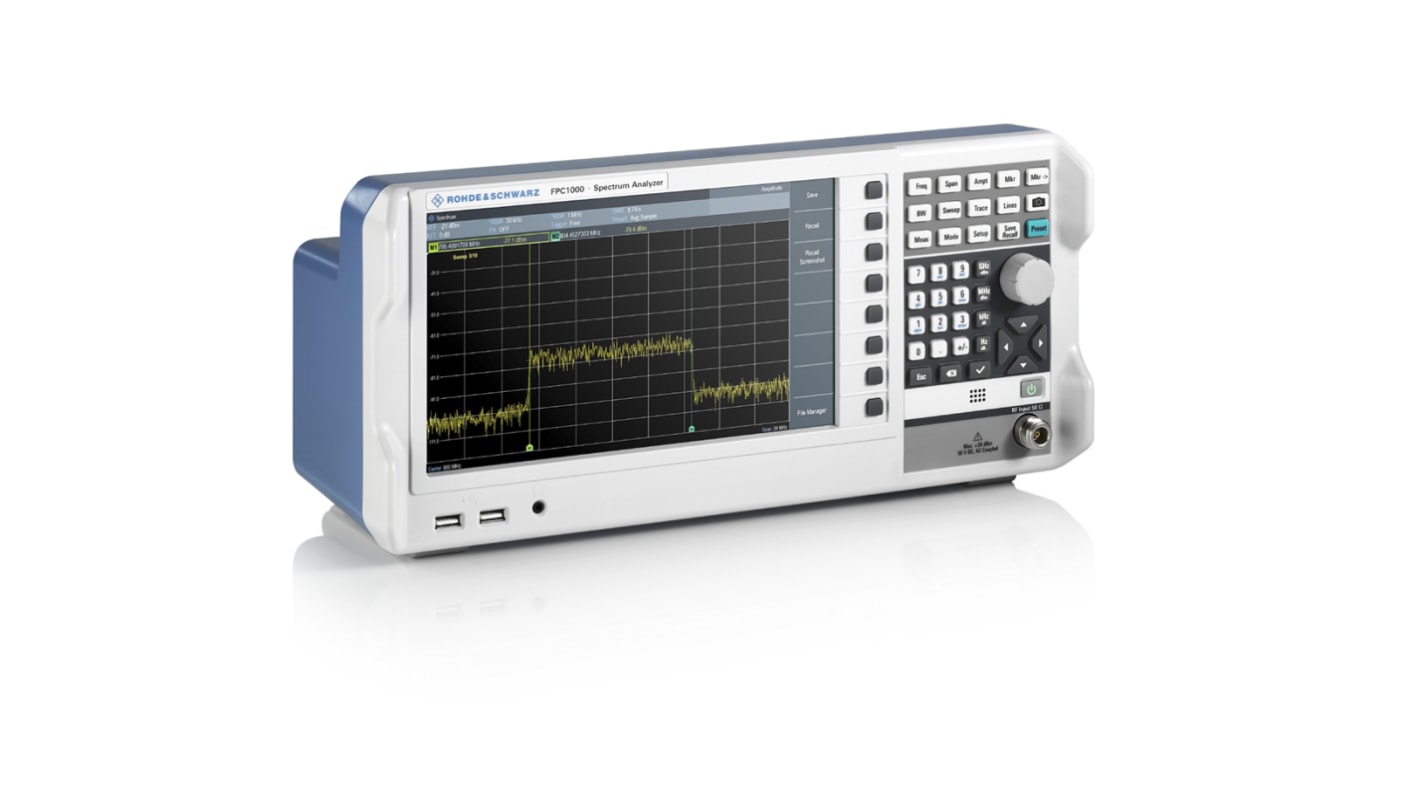

Rohde & Schwarz FPC1000 Desktop Spectrum Analyser, 5 kHz → 3 GHz
- RS 제품 번호:
- 187-3723
- 제조사 부품 번호:
- FPC-COM1
- 제조업체:
- Rohde & Schwarz
가격 개당**
₩13,391,851.20
일시 품절-다음 입고 날짜는 21/02/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩13,391,851.20 |
**다른 단위에 대한 가격 표시
- RS 제품 번호:
- 187-3723
- 제조사 부품 번호:
- FPC-COM1
- 제조업체:
- Rohde & Schwarz
- COO (Country of Origin):
- CZ
Rohde & Schwarz FPC1000 Series Spectrum Analyser Bundle
Rohde & Schwarz offer this large inclusion bundle of Spectrum Analyser, software upgrades and accessories.
The FPC1000 Series from Rohde and Schwarz is a 5 kHz to 1 GHz spectrum analyser. The FPC1000 spectrum analyser delivers unexpected performance. Extraordinarily low noise floor and high maximum input power combine to provide best dynamic range. Resolution bandwidth settings to 1 Hz resolve finer spectral details. The FPC1000 series features 10.1", WXGA (1366 x 768 pixels) resolution with 26% larger display and has a 160% higher resolution than other instruments. It can be controlled via Smart Wireless remote control software. This spectrum analyser is used in education, production, service or basic research. Supports wired Ethernet and wireless WiFi connectivity. R&S InstrumentView for Windows and the iOS/Android app-based R&S MobileView platforms enables remote control and measurement anytime, anywhere. This bundle includes frequency upgrades and several software packages, providing you with more functions and options, the ideal addition to any troubleshooting or analysing kit.
The FPC1000 Series from Rohde and Schwarz is a 5 kHz to 1 GHz spectrum analyser. The FPC1000 spectrum analyser delivers unexpected performance. Extraordinarily low noise floor and high maximum input power combine to provide best dynamic range. Resolution bandwidth settings to 1 Hz resolve finer spectral details. The FPC1000 series features 10.1", WXGA (1366 x 768 pixels) resolution with 26% larger display and has a 160% higher resolution than other instruments. It can be controlled via Smart Wireless remote control software. This spectrum analyser is used in education, production, service or basic research. Supports wired Ethernet and wireless WiFi connectivity. R&S InstrumentView for Windows and the iOS/Android app-based R&S MobileView platforms enables remote control and measurement anytime, anywhere. This bundle includes frequency upgrades and several software packages, providing you with more functions and options, the ideal addition to any troubleshooting or analysing kit.
Rohde & Schwarz promotion until March 31st, 2025
Save up to 48% on the most popular configurations of T&M instrument configurations from Rohde & Schwarz. This promotional offer includes all essential instruments found on an engineer’s workbench including, oscilloscopes, DC power supplies, spectrum and antenna analysers, signal generators and LCR meters.
Save up to 48% on the most popular configurations of T&M instrument configurations from Rohde & Schwarz. This promotional offer includes all essential instruments found on an engineer’s workbench including, oscilloscopes, DC power supplies, spectrum and antenna analysers, signal generators and LCR meters.
Included in this bundle:
FPC1000 (144-8210) Spectrum Analyzer, 5kHz to 1GHz
FPC-B2 (144-8213) Freq. Upgrade 1GHz to 2GHz
FPC-B3 (144-8214) Freq. Upgrade 2GHz to 3GHz
FPC-B22 (144-8215) Preamplifier software
FPC-K7 (144-8216) Modulation analysis software
FPC-K43 (144-8217) Receiver mode software
FPC-K55 (144-8218) Advanced measurements software
FPC-B2 (144-8213) Freq. Upgrade 1GHz to 2GHz
FPC-B3 (144-8214) Freq. Upgrade 2GHz to 3GHz
FPC-B22 (144-8215) Preamplifier software
FPC-K7 (144-8216) Modulation analysis software
FPC-K43 (144-8217) Receiver mode software
FPC-K55 (144-8218) Advanced measurements software
Features and Benefits:
• 100% software upgradeable via key-code
• Provides low noise floor of -150 dBm add optional FPC1000-B22 preamplifier to increase sensitivity
• FPC1000 can measure high-power signals of up to +30 dBm (1 W)
• 6 markers shown vividly in different colours
• Two USB2.0 ports for storage media and connecting accessories, headphone jack, audio speaker, RF input
• Soft menu selection for quick access to key tools, measurement setup buttons
• Power key approximately 15 seconds boot time
• Documentation as a screenshot or of instrument settings, control knob
• Optional R&S FPC-K43 receiver mode, R&S FPC-K7 modulation analysis, R&S FPC-K55 advanced measurement
• Optional accessories ZZA-FPC1 19" rackmount kit, HZ-15 Near field probes, 30 MHz to 3 GHz, HZ-16 Amplifier, 100 kHz to 3 GHz TB-Z3 soft carrying case
• Dimension is 396 x 185 x 156 mm, weight is 3Kg
• WiFi enabled, supported by included remote control and measurement software
• Three-year standard warranty
• FPC1000 Series
• Provides low noise floor of -150 dBm add optional FPC1000-B22 preamplifier to increase sensitivity
• FPC1000 can measure high-power signals of up to +30 dBm (1 W)
• 6 markers shown vividly in different colours
• Two USB2.0 ports for storage media and connecting accessories, headphone jack, audio speaker, RF input
• Soft menu selection for quick access to key tools, measurement setup buttons
• Power key approximately 15 seconds boot time
• Documentation as a screenshot or of instrument settings, control knob
• Optional R&S FPC-K43 receiver mode, R&S FPC-K7 modulation analysis, R&S FPC-K55 advanced measurement
• Optional accessories ZZA-FPC1 19" rackmount kit, HZ-15 Near field probes, 30 MHz to 3 GHz, HZ-16 Amplifier, 100 kHz to 3 GHz TB-Z3 soft carrying case
• Dimension is 396 x 185 x 156 mm, weight is 3Kg
• WiFi enabled, supported by included remote control and measurement software
• Three-year standard warranty
• FPC1000 Series
속성 | 값 |
|---|---|
| Bandwidth | 5 kHz → 3 GHz |
| Number of Channels | 1 |
| Series | FPC1000 |
| Setting Modes | Span |
| Maximum Frequency | 3GHz |
| Minimum Frequency | 5 kHz |
| Display Type | WXGA |
| Screen Size | 10.1in |
| Markers | Frequency |
| RF Input | N Connector |
| Desktop/Handheld | Desktop |
| Width | 147 (Without Feet) mm, 156 (With Feet) mm |
| Height | 178 (Without Feet) mm, 185 (With Feet) mm |
| Minimum Operating Temperature | +10°C |
| Plug Type | Type B - North American 3-pin |
| Model Number p | FPC1000 |
| Length | 396 (With Feet) mm, 396 (Without Feet) mm |
| Weight | 3kg |
| Dimensions | 396 x 147 x 178 (Without Feet) mm, 396 x 156 x 185 (With Feet) mm |
| Maximum Operating Temperature | +40°C |
