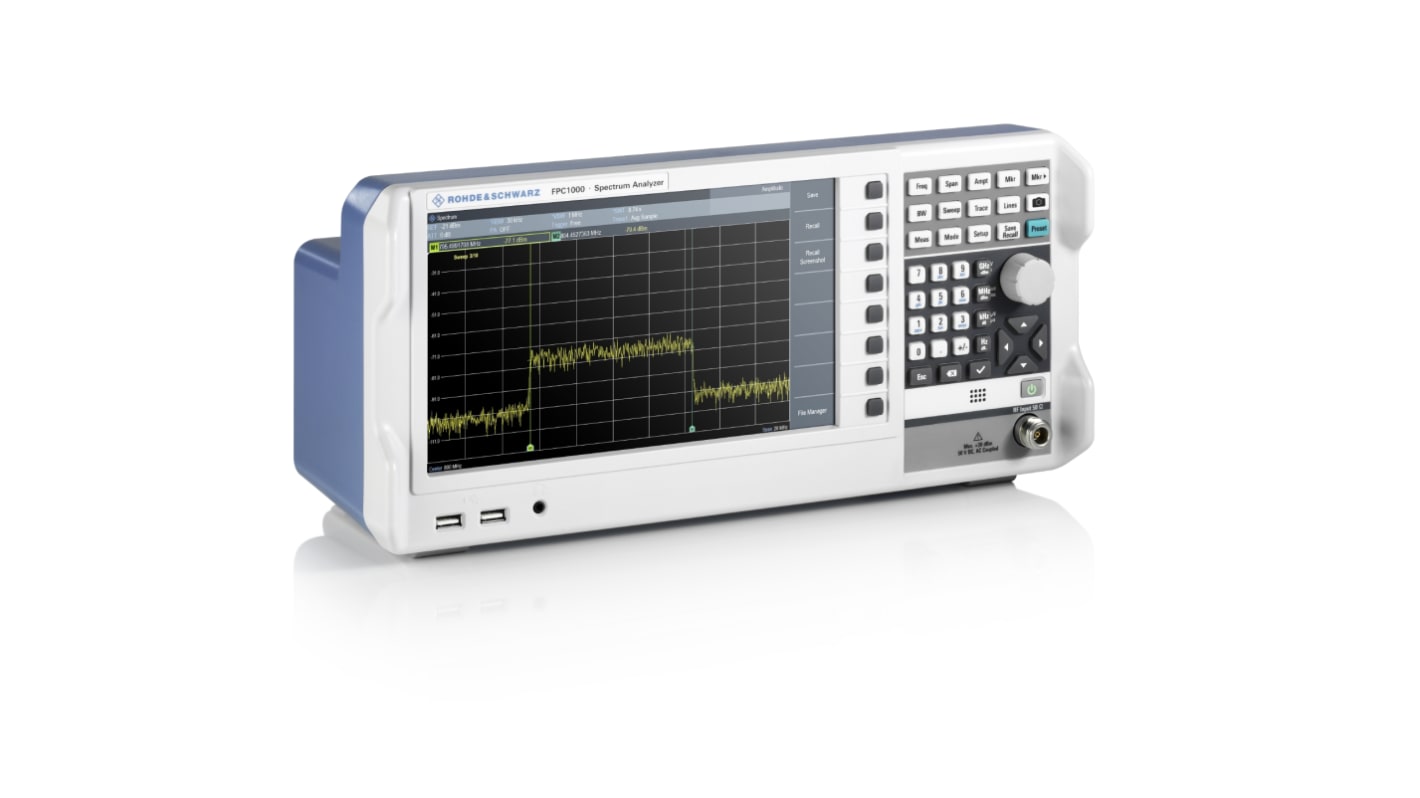

Name: Rohde & Schwarz FPC1000 Desktop FPC1000 Spectrum Analyser, 3 MHz
Brand: Rohde & Schwarz
SKU: 230-7784
Price: 6692400.00 KRW
Availability: InStock

수량

수량 선택 또는 입력

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Rohde & Schwarz
	Bandwidth	3MHz
	Product Type	Spectrum Analyser
	Number of Channels	1
	Wave Traces	Minimum Hold, Maximum Hold, Average
	Setting Modes	Span
	Series	FPC1000
	Maximum Frequency	1GHz
	Minimum Frequency	5kHz
	Display Type	WXGA
	Power Source	Battery
	Interface Type	USB, LAN
	Standards/Approvals	UL 610101, VDE, CSANRTL, EN 60068264, CSA, EN 6006826, IEC 610101, EN 610101, EN 613261 Class B, CAN/CSAC22.2 No. 61010.112, MILPRF28800F Class 2
	Desktop/Handheld	Desktop
	Model Number	FPC1000

	모두 선택
	브랜드 Rohde & Schwarz
	Bandwidth 3MHz
	Product Type Spectrum Analyser
	Number of Channels 1
	Wave Traces Minimum Hold, Maximum Hold, Average
	Setting Modes Span
	Series FPC1000
	Maximum Frequency 1GHz
	Minimum Frequency 5kHz
	Display Type WXGA
	Power Source Battery
	Interface Type USB, LAN
	Standards/Approvals UL 610101, VDE, CSANRTL, EN 60068264, CSA, EN 6006826, IEC 610101, EN 610101, EN 613261 Class B, CAN/CSAC22.2 No. 61010.112, MILPRF28800F Class 2
	Desktop/Handheld Desktop
	Model Number FPC1000

FPC1000 Spectrum Analyzer + FPC-B22 (Preamplifier) + FPC-K43 (EMI Receiver Mode)

FPC-EMI1 consist of

-FPC1000 Spectrum Analyzer, 5 kHz to 1GHz

-FPC-B22 Preamplifier

-FPC-K43 EMI Receiver Mode

Investment protection

High resolution

Easy virtual control

The Rohde & Schwarz spectrum analyzer provides investment protection through software frequency upgrade capability. It has 5 kHz to 1 GHz frequency range.;

Rohde & Schwarz promotion until March 31st, 2024

Save up to 48% on the most popular configurations of T&M instrument configurations from Rohde & Schwarz. This promotional offer includes all essential instruments found on an engineer’s workbench including, oscilloscopes, DC power supplies, spectrum and antenna analysers, signal generators and LCR meters.

Buy the FPC-EMI now to benefit from an inclusive 10% saving.

FPC-B22 Preamplifier

It increases sensitivity even further, to typ. –165 dBm

It is able to measure high-power signals of up to +30 dBm (1 W)

FPC-B22 preamplifier compensates for coupling loss of probes and increases sensitivity to detect small interfering signals.

FPC-K43 EMI Receiver Mode

Ability to record two traces

Ability to display a logarithmic scale of the frequency axis

FPC-K43 receiver mode used for EMI debugging on circuit boards, integrated circuits or cable shielding.

Rohde & Schwarz FPC1000 Desktop FPC1000 Spectrum Analyser, 3 MHz

FPC1000 Spectrum Analyzer + FPC-B22 (Preamplifier) + FPC-K43 (EMI Receiver Mode)

FPC-B22 Preamplifier

FPC-K43 EMI Receiver Mode

FPC-Z1 Cable for (HM6050)
