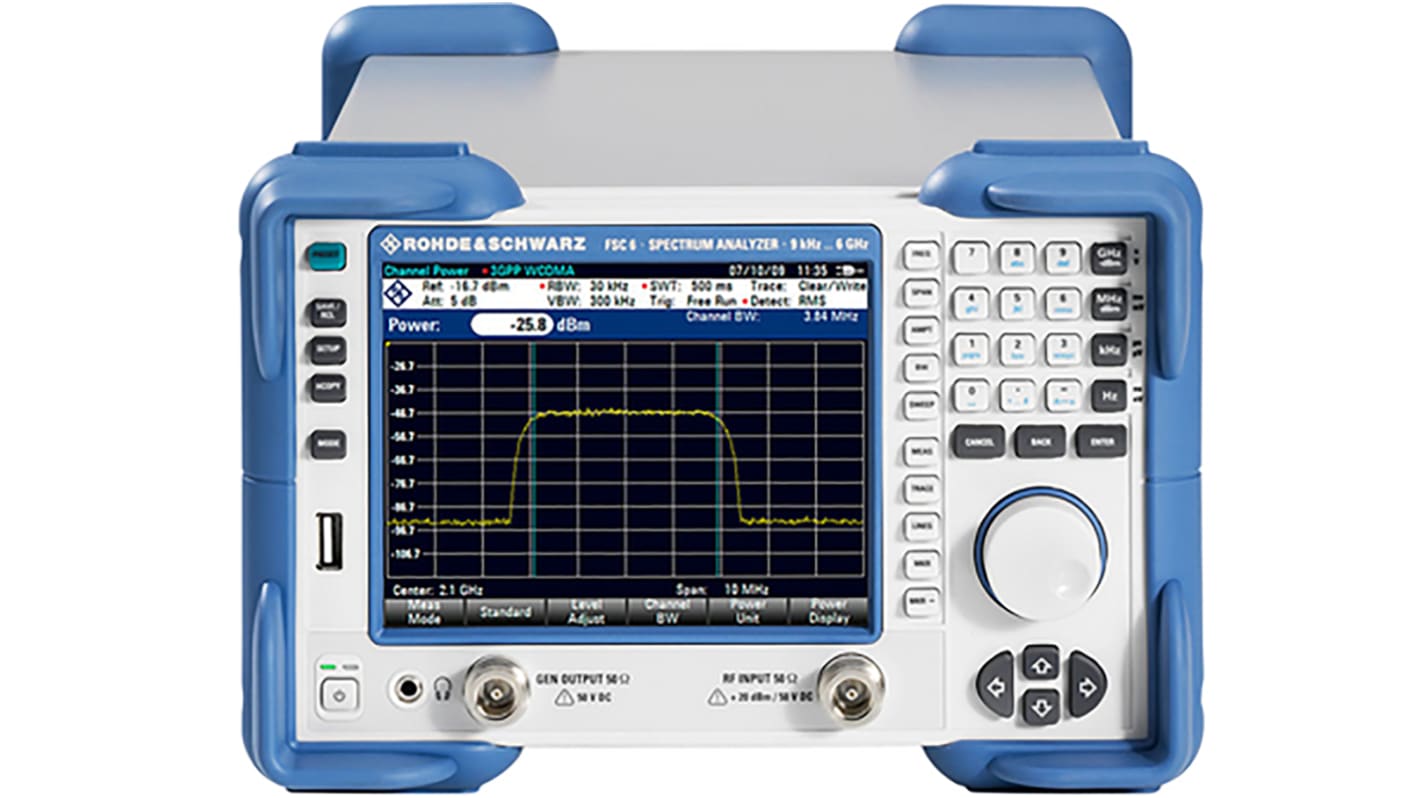

Rohde & Schwarz FSC-P1 Desktop FSC Spectrum Analyser, 3000000 kHz

모든 Spectrum Analysers 열람하기

Subtotal (1 unit)*

₩19,359,400.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩19,359,400.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
144-8233
Distrelec 제품 번호:
300-82-382
제조사 부품 번호:
FSC-P1
제조업체:
Rohde & Schwarz
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Rohde & Schwarz

Product Type

Spectrum Analyser

Bandwidth

3000000kHz

Number of Channels

1

Wave Traces

Minimum Hold, Average, Maximum Hold

Series

FSC

Setting Modes

Span

Maximum Frequency

3GHz

Minimum Frequency

9kHz

Display Type

LCD

Power Source

Battery

Markers

Frequency

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

RF Input

N Connector

Width

350mm

Standards/Approvals

CAN/CSAC22.2 No. 61010.112, MILPRF28800F Class 2, UL 610101, EN 6006826, CSA, EN 60068264, IEC 610101, CSANRTL, EN 613261 Class B, VDE, EN 610101

Weight

4.5kg

Height

158.1mm

Length

233mm

Interface Type

LAN, USB

Desktop/Handheld

Desktop

Model Number

FSC-P1

COO (Country of Origin):
MY

R&S® FSC Series Spectrum Analysers


The FSC series is a compact, cost-efficient solution that offers all essential features of a professional spectrum analyser with Rohde and Schwarz quality. It covers a wide range of applications from simple development tasks, production or it can be used for training RF professionals. It is Ideal for applications in service or maintenance.;The R&S®FSC features a wealth of functions for simplifying and speeding up the development and testing of RF products. The RF characteristics and high measurement accuracy ensure reliable and reproducible measurement results.

Four different R&S®FSC models are available in the frequency range from 9 kHz to 3 GHz or 6 GHz. Separate models with tracking generator are available for each frequency range. An optional preamplifier that is available for all models increases sensitivity for measuring weak signals. Owing to its Compact design, the R&S®FSC takes up a minimum amount of space on a lab bench.

Features and Benefits


• Frequency range 9 kHz to 3 GHz or 6 GHz;• Resolution bandwidths 10 Hz to 3 MHz;• High sensitivity (< -141 dBm (1 Hz), with optional preamplifier < -161 dBm (1 Hz);• High third order intercept (> 10 dBm, typ. 15 dBm);• Low measurement uncertainty (< 1 dB);• Internal tracking generator (model .13/.16);• Compact dimensions;• Low power consumption (12 W);• Storage of measurement results on USB stick;• LAN and USB Interface for remote control and transfer of measurement data;• R&S®FSCView software for simple documentation of measurement results

R&S® FSC Series Spectrum Analysers
