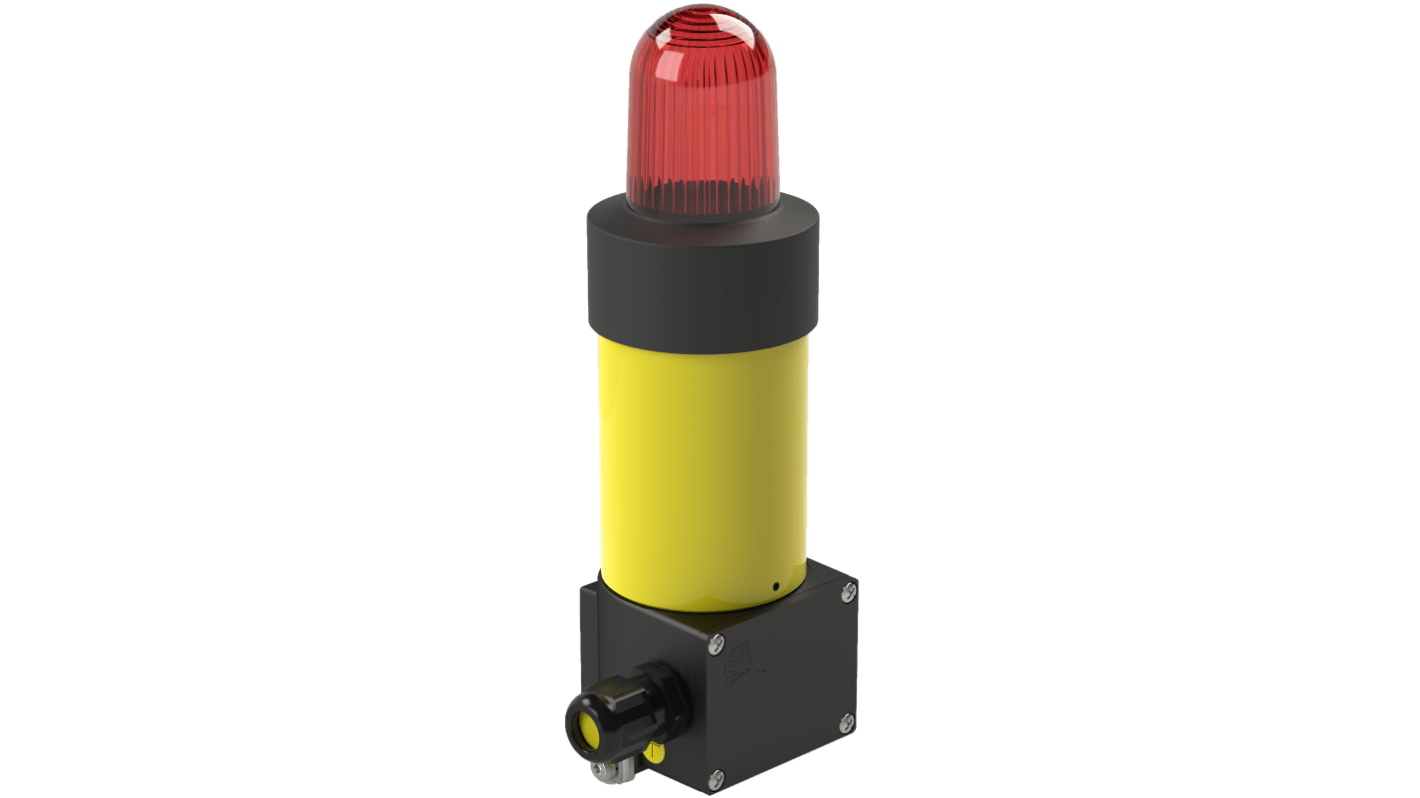

Pfannenberg CWB-ATEX Series Red Flashing Effect Signal Tower, Xenon Bulb 48V ac/dc, AC/DC, IP66
- RS 제품 번호:
- 461-069
- Distrelec 제품 번호:
- 302-39-211
- 제조사 부품 번호:
- 31006905000
- 제조업체:
- Pfannenberg
Subtotal (1 unit)*
₩1,976,695.50
제조사가 재고 비축중
- 2026년 6월 18일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,976,695.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 461-069
- Distrelec 제품 번호:
- 302-39-211
- 제조사 부품 번호:
- 31006905000
- 제조업체:
- Pfannenberg
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pfannenberg | |
| Series | CWB-ATEX | |
| Product Type | Signal Tower | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Current Consumption | 0.3, 0.5A | |
| Light Effect | Flashing | |
| Mount Type | Upright Mount | |
| Lens Colour | Red | |
| Bulb Type | Xenon | |
| Terminal Type | Screw | |
| Maximum Supply Voltage | 48V ac/dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | RoHS | |
| Height | 260mm | |
| IP Rating | IP66 | |
| Base Diameter | 82mm | |
| Hazardous Area Certification | NO | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pfannenberg | ||
Series CWB-ATEX | ||
Product Type Signal Tower | ||
Multifunction No | ||
Current Type AC/DC | ||
Current Consumption 0.3, 0.5A | ||
Light Effect Flashing | ||
Mount Type Upright Mount | ||
Lens Colour Red | ||
Bulb Type Xenon | ||
Terminal Type Screw | ||
Maximum Supply Voltage 48V ac/dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals RoHS | ||
Height 260mm | ||
IP Rating IP66 | ||
Base Diameter 82mm | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- DE
The Pfannenberg Flashing lights are explosion-protected equipment, designed to serve as visual alarms in potentially explosive workplaces. The housing is made of aluminum, making it suitable for use in chemical and petrochemical plants, as well as offshore installations.
Explosion-protected flashing light with red lens as visual alarm in potentially explosive workplaces in zones 1, 2, 21 and 22
Housing made of aluminium, that means it can be used in all chemical and petrochemical plants as well as offshore plants
The flash tube additionally secured by steel clamp, making it resistant to vibrations and shock
High protection system and stable mechanical construction mean it can be used under the toughest operating conditions.
6 lens colours can be selected: clear, yellow, amber, red, green, blue
Ignition protection type: 'd' pressurized encapsulation for light housing: 'e' increased safety for connection box.
Service life: after 8 million flashes, still 70% light emission
Maximum visibility: 172 m
Dimensions LxWxH: 91 x 82 x 260 mm
Operating temperature (T5): -40C+50C, (T6): -40C+40C
GL approval as standard
Options/accessories: Pipe clamps, fixing brackets, mounting plate, angle bracket stainless-steel
