Pfannenberg WBL Series Amber Flashing Effect Signal Tower, Xenon Bulb 230V ac, AC, IP54
- RS 제품 번호:
- 460-894
- 제조사 부품 번호:
- 21003104000
- 제조업체:
- Pfannenberg
Subtotal (1 unit)*
₩406,848.00
제조사가 재고 비축중
- 2026년 7월 20일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩406,848.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 460-894
- 제조사 부품 번호:
- 21003104000
- 제조업체:
- Pfannenberg
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pfannenberg | |
| Series | WBL | |
| Product Type | Signal Tower | |
| Multifunction | No | |
| Current Type | AC | |
| Light Effect | Flashing | |
| Mount Type | Vertical | |
| Current Consumption | 0.07A | |
| Lens Colour | Amber | |
| Lamp Included | Yes | |
| Bulb Type | Xenon | |
| Maximum Supply Voltage | 230V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 55°C | |
| Height | 200mm | |
| Standards/Approvals | DIN EN 842, EN 60825-1, IEC 73, DIN 54113-2, DIN EN 54, RoHS | |
| Base Diameter | 54mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP54 | |
| Housing Colour | Yellow | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pfannenberg | ||
Series WBL | ||
Product Type Signal Tower | ||
Multifunction No | ||
Current Type AC | ||
Light Effect Flashing | ||
Mount Type Vertical | ||
Current Consumption 0.07A | ||
Lens Colour Amber | ||
Lamp Included Yes | ||
Bulb Type Xenon | ||
Maximum Supply Voltage 230V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 55°C | ||
Height 200mm | ||
Standards/Approvals DIN EN 842, EN 60825-1, IEC 73, DIN 54113-2, DIN EN 54, RoHS | ||
Base Diameter 54mm | ||
Hazardous Area Certification No | ||
IP Rating IP54 | ||
Housing Colour Yellow | ||
- COO (Country of Origin):
- DE

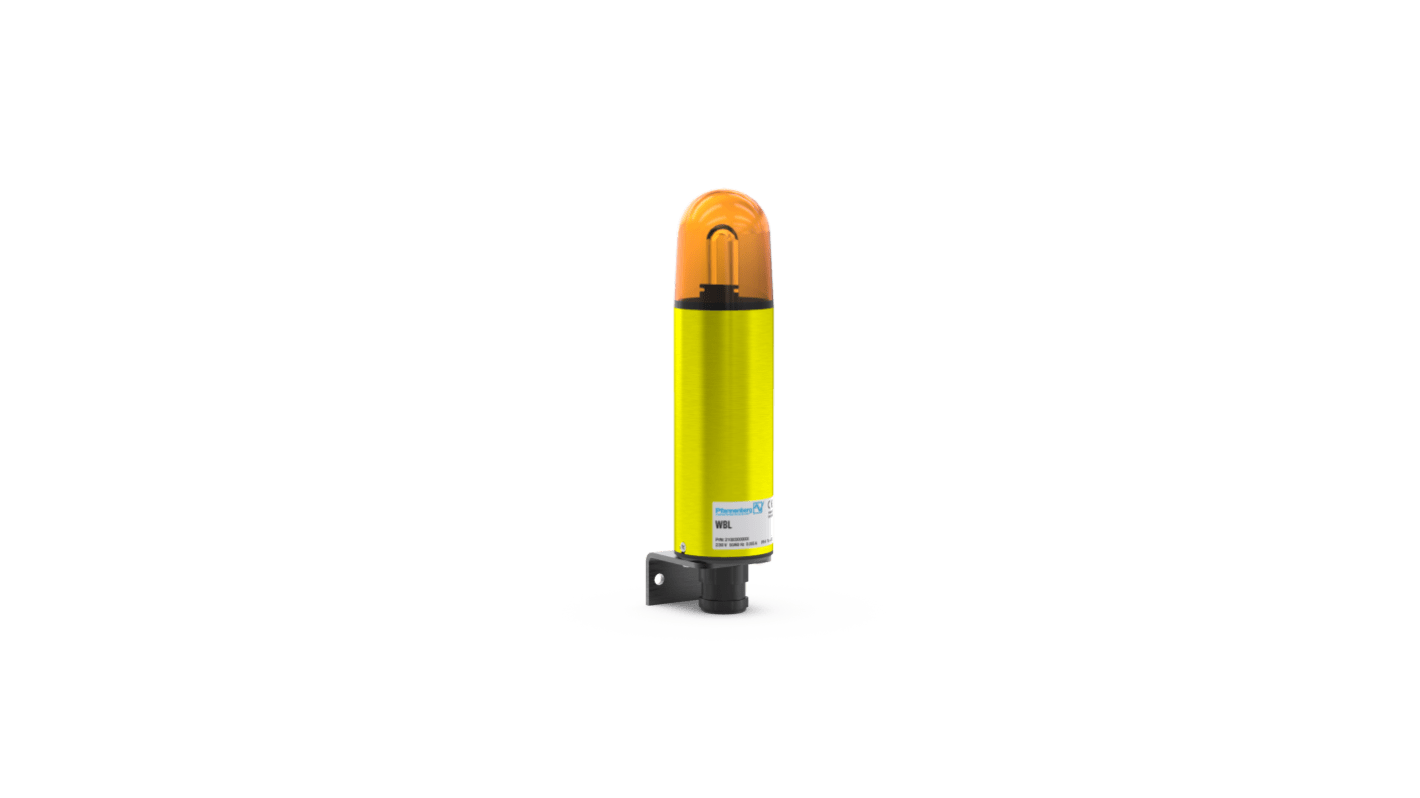

The Pfannenberg Classic flashing light with a sturdy metal housing, universally usable for a wide range of applications. It is also available with GL approval for maritime use. The housing and fixing bracket are made of robust anodized aluminum, ensuring durability in aggressive environmental conditions. The light is designed to withstand driving rain and other harsh weather conditions without damage.
Flashing light with 5J performance in a sturdy metal housing with amber lens
Can be used universally
Housing and fixing bracket made of sturdy, anodised aluminium
Aggressive environmental conditions or driving rain cannot damage the light
Impact-proof lens made of polycarbonate
Perfectly suitable for harsh industrial environments
Flash tube additionally secured by a steel clamp
Service life: after 8 million flashes, still 70% light emission
Dimensions: 50mm diameter x 200mm
Operating temperature: -40C+55C
Maximum visibility: 181m
7 Lens colours: clear, white, yellow, orange, red, green, blue
