Pfannenberg ABL Series Yellow Flashing Effect Signal Tower, Xenon Bulb 230V ac, AC, IP54

모든 Signal Tower Components 열람하기
현재 액세스할 수 없는 재고 정보
RS 제품 번호:
460-387
Distrelec 제품 번호:
302-39-079
제조사 부품 번호:
21001103000
제조업체:
Pfannenberg
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Pfannenberg

Product Type

Signal Tower

Series

ABL

Multifunction

No

Current Type

AC

Light Effect

Flashing

Current Consumption

0.18A

Mount Type

Vertical

Lens Colour

Yellow

Lamp Included

Yes

Bulb Type

Xenon

Maximum Supply Voltage

230V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

55°C

Standards/Approvals

DIN EN 54, EN 60825-1, RoHS, IEC 73, DIN EN 842

Height

242mm

Base Diameter

80mm

IP Rating

IP54

Hazardous Area Certification

No

Housing Colour

Yellow

COO (Country of Origin):
DE

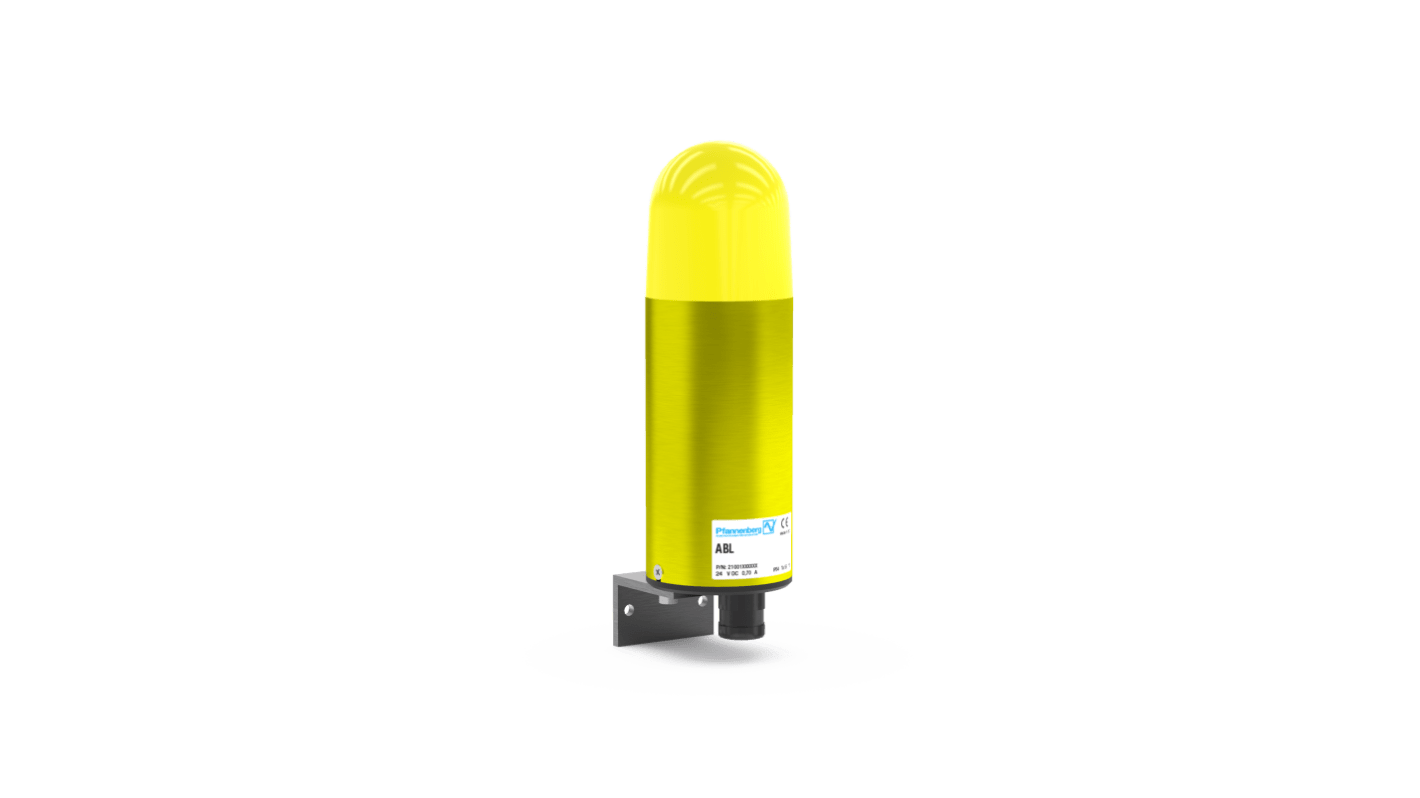

The Pfannenberg Powerful flashing light in a metal housing, designed for alarm functions in outdoor areas, large halls, and plants. It is also available with GL approval for maritime applications. The housing and fixing bracket are made of sturdy anodized aluminum, ensuring durability and long-lasting performance.

The powerful 15J flashing light in a metal housing with yellow lens

Designed for alerting outdoors, in large halls and plants

Housing and fixing bracket made of sturdy, anodised aluminium

Aggressive environmental conditions or driving rain cannot damage the light

Impact-proof lens made of polycarbonate

Perfectly suitable for harsh industrial environments

Flash tube additionally secured by a steel clamp

Service life: after 8 million flashes, still 70% light emission

Dimensions: 80mm diameter x 242mm

Operating temperature: -40+55C

Maximum visibility: 348m

7 lens colours: clear, white, yellow, amber, red, green, blue
